Name: Brother Mobile Solutions Compact 203dpi Desktop Thermal Printer
Brand: Brother Mobile Solutions
SKU: KV-PR-TD2020
Availability: Discontinued

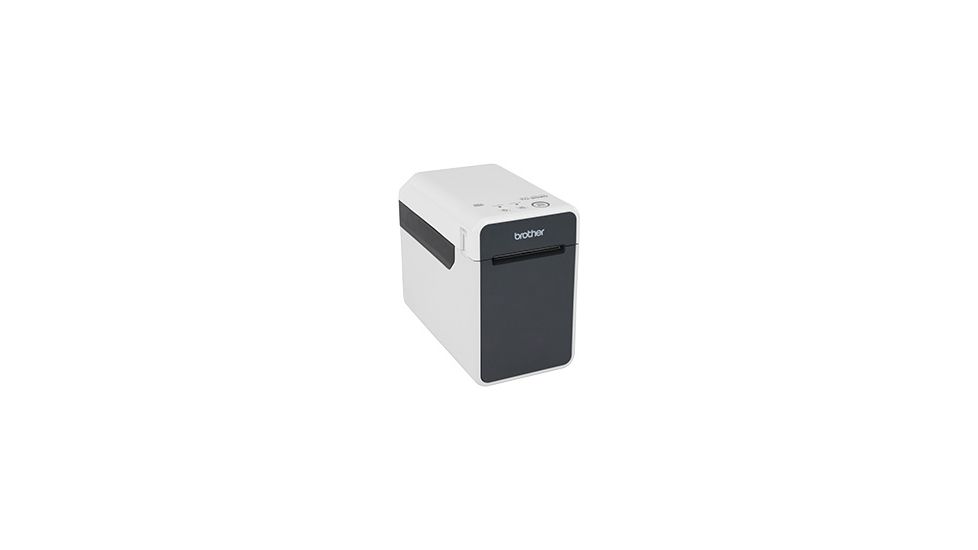

Brother Mobile Solutions Compact 2.2in Wide, 203dpi Desktop Thermal Printer TD2020

Brother Mobile Solutions Compact 2.2in Wide, 203dpi Desktop Thermal Printer TD2020

1 of 3 images

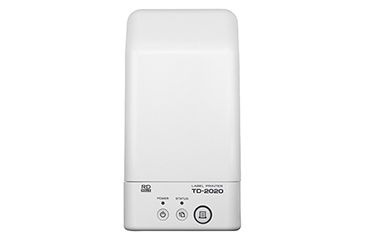

Brother Mobile Solutions Compact 2.2in Wide, 203dpi Desktop Thermal Printer TD2020

2 of 3 images

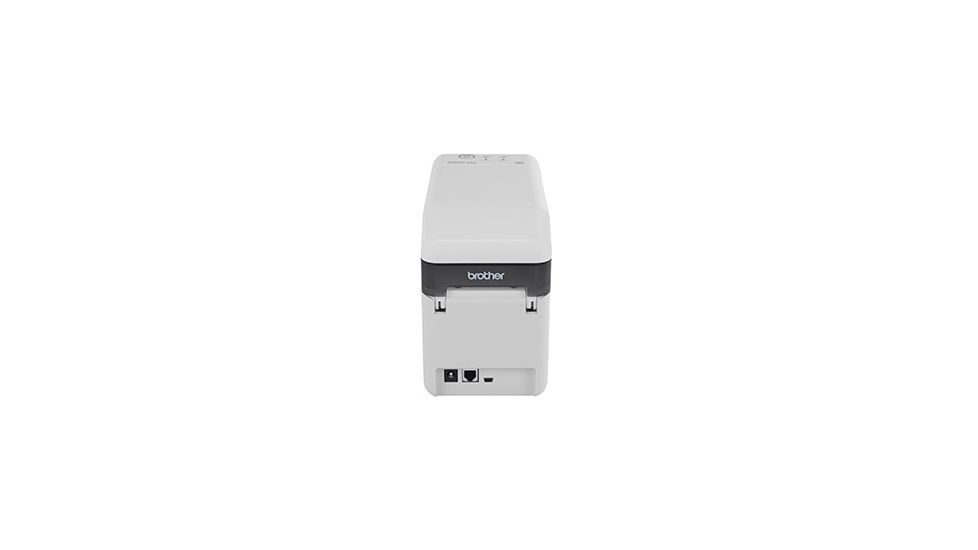

Brother Mobile Solutions Compact 2.2in Wide, 203dpi Desktop Thermal Printer TD2020

3 of 3 images

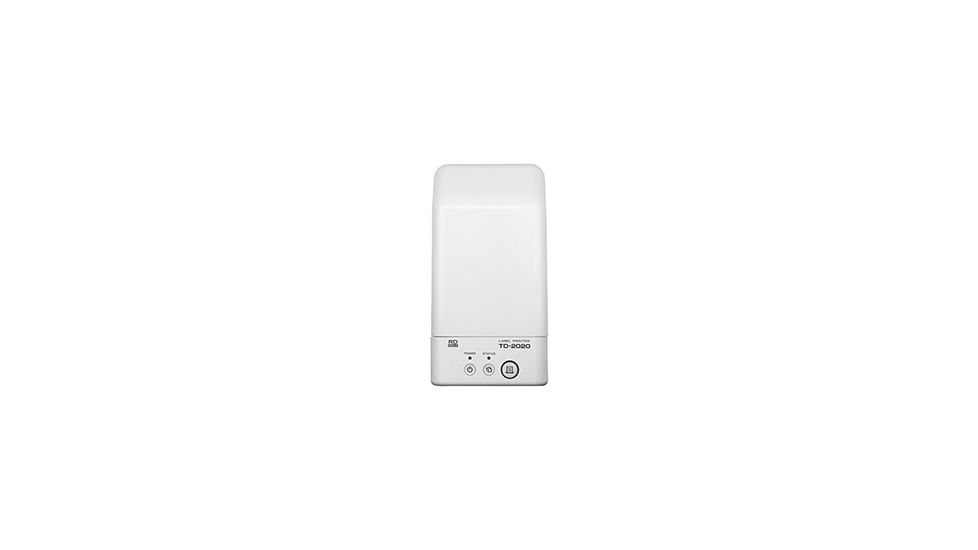

Brother Mobile Solutions Compact 2.2in Wide, 203dpi Desktop Thermal Printer TD2020

Tap Tap to Zoom

Questions & Answers

Product Discontinued by Manufacturer

Brother Mobile Solutions Compact 203dpi Desktop Thermal Printer has been discontinued by Brother Mobile Solutions and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Printers, Office Supplies yourself to try and find the perfect replacement for you!

Compare

Add to Wishlist

Product Info for Brother Mobile Solutions Compact 203dpi Desktop Thermal Printer

The Brother Mobile TD2020 Thermal Desktop Printer has been developed to be the ideal way to print retail labels, tags and receipts. Designed for use in almost any retail work space, this Receipt Printer from Brother Mobile Solutions is among the most compact and fastest 2.2in wide desktop thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 6ips. The Brother TD2020 Desktop Printer also prints tags and receipts for kiosk and POS applications. An innovative drop-in roll, spindle-less design helps make loading easy with existing or standard converted media. Windows 8/7/XP drivers (and ZPL II compatibility) helps with integration into existing retail solutions. The Brother TD2020 Receipt and Label Printer comes with Brother label design and print software application.

Specifications for Brother Mobile Solutions Receipt Printer - TD-2020:

Housing Color:	White with Gray Front Panel
Maximum Media Width:	2.48" (63 mm)
Maximum Printing Speed:	Up to 6 ips (152.4 mm/sec) With AC Adapter
Maximum Print Resolution:	203x203 dpi
Printing Method:	Raster, Text (Template), Command (ESC P)
Operation Modes:	Raster, Template 2.0, ESC P
Cutter:	None
Display:	None
Mobile Device Compatibility:	Windows CE 6.0, Windows Mobile 5.0/6.x, Android 2.2 or Later, iOS 4.3 or Later
Maximum Print Width (inches):	2.2" (56 mm)
Minimum Print Length:	0.5" (12.7 mm)
Maximum Label Length:	39.37" (1K mm)
Maximum Resolution (dpi):	203
Media Sensor & Position:	Fixed Center Transmissive (Gap), Fully Adjustable (Left/Right) Reflective (Mark)
Media Types:	Direct Thermal Label, Tag or Receipt (Paper or Synthetic)
Maximum Roll Size (outside diameter):	5" (127 mm)
Media Thickness - With Adhesive:	7 mil (0.170 mm)
Media Thickness - Without Adhesive:	5.3 mil (0.135 mm)
Control Panel:	3 Push Button Keys & 2 LED's
Status Indicator:	LED
Printer Emulation:	ESC P
Internal Fonts:	Bitmap - Helsinki, Letter Gothic Bold, Gothic, Outline - Helsinki, Letter Gothic Regular, Gothic, Brussels
Internal Font Sizes:	ESC P - 16, 24 & 32 dots Bitmap, 1-400 dots Outline
Internal Font Styles:	Bold, Italic, Underline, Outline, Shadow, Outline+Shadow, Vertical
Memory:	32 MB RAM, 16 MB Flash
Memory for Transferred Data (number):	6 MB Internal Flash
Symbols for Windows ( No. of Clip arts in P-touch Editor):	1379
Multiple Copies:	Through PC
Mirror Printing:	Through PC
Vertical Printing:	Through PC
Rotate Printing:	Yes
Date/Time Stamp:	Through PC
Bar-codes Types:	Linear - Code39, Code 93, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Codabar (NW-7), Postnet 2D
Microsoft Add-ins:	Office 2000/2003/2007 (Word, Excel & Outlook)
Database File Compatibility:	.csv, .txt, .mdb, .xls and Microsoft SQL Server
Software:	P-touch PT-Editor 5.0, Transfer Manager 2.1, Update Software
Networking:	None
Interface:	USB 2.0 (Full Speed) & Serial (RS-232C)
Compatibility:	Windows 8/7/XP, Windows Vista
Operating System:	Windows 8/7/XP, Windows Vista
Carton Contents:	Printer, AC Adapter, Power Cord, USB (Mini) Cable, CD, Documentation
Housing Dimensions:	4.33" (w) x 6.77" (h) x 8.46" (d)
Weight:	2.91 lbs (1.32 kg)
Power Supply:	100-240 VAC, 50/60 Hz, 1.2 A External AC Adapter (PA-AD-001)
Power Switch:	Digital
Energy Star:	Yes
Warranty:	2 Years Limited Warranty

Features of Brother TD2020 Desktop Receipt Printer:

High Speed Printing - Prints up to 6ips in 203dpi print resolution
Small Size, But Big on Performance - Although these printers are among the smallest desktop thermal printers in their class, they also lead in performance over many 203 dpi print resolution desktop thermal printers
Ergonomic Design - Uses an innovative spindle-less design that accepts labels, tags or receipt media with virtually any core size for a true drop-in media roll loading experience on a desktop, cart or even mounted to a wall
Adjustable Edge-to-Edge Media Sensor - Flexibility to detect and print on more types of existing thermal media to help avoid converting custom media
Complete Label Printing Solution - Comes with the full version of the Brother P-touch Editor software application with advanced design tools and printing features
Print From a Database - Helps save time and increase accuracy by printing labels, tags and receipts linked directly to Microsoft SQL Server, Access or Excel database files
Two Year, "At your side" Limited Warranty - As a commitment to reliability, the entire label printer is covered under a two year limited warranty, including the print head no matter the amount of media you print every day
