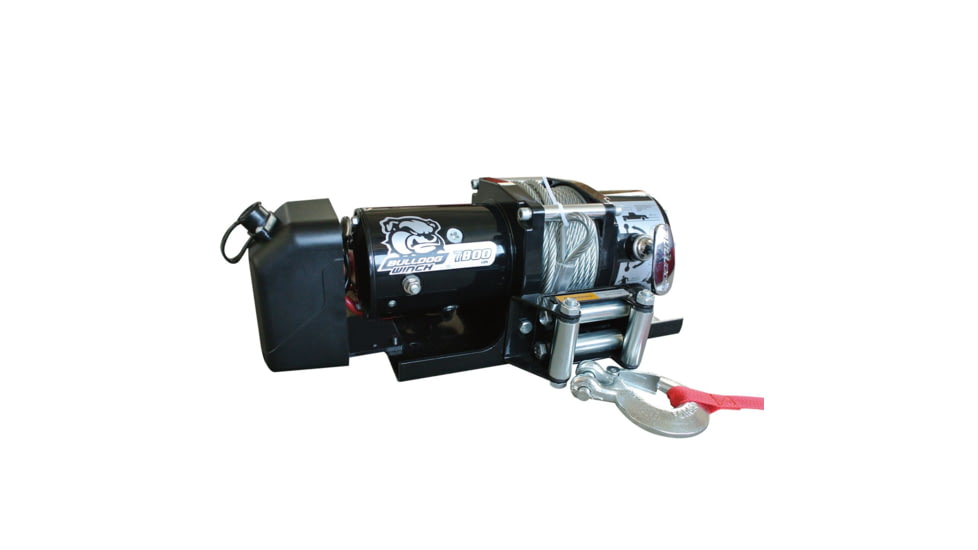

Bulldog Winch 7800lb Trailer Winch, 47.6ft Wire Rope, Roller Fairlead, Mnt Plate, Low Profile, 10031
2 of 2 images

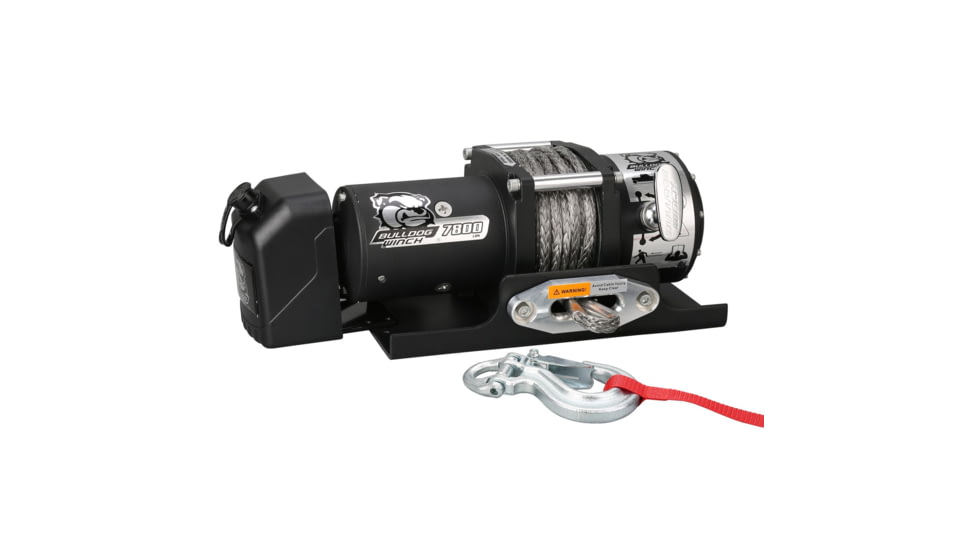

Bulldog Winch 7800lb Trailer Winch, 50ft Synth Rope, Roller Fairlead, Mnt Plate, Low Profile, 10032
Tap Tap to Zoom
Questions & Answers
2 Models Available
Additional Features
All
Cable Length
All
Search
$802.99
$989.99
Product Info for Bulldog Winch 7800lb Trailer Winch
These units have a solid two-year warranty and are engineered to provide maximum performance in all kinds of conditions. The GH7800 is a 7800 lb. rated trailer winch and has a 5.2 HP 12 Volt series wound motor. It features a freespooling clutch with an automatic holding brake and is controlled with a wireless hand held remote. Note: These winches can also be controlled wirelessly with the Bulldog Winch wireless remote control. Simply remove the wired hand held remote and connect the wireless remote to the winch. Note: This remote must be purchased separately.
Specifications for Bulldog Winch 7800lb Trailer Winch:
| Manufacturer: | Bulldog Winch |
| Voltage: | 12 volts |
| Power: | 5.2 HP |
| Max Weight Capacity: | 7800 lbs |
| Gear Ratio: | 218 |
| Weight: | 61 lb |
Features of Bulldog Winch 7800lb Trailer Winch
- Rated Line Pull: 7800 Lb
- Motor: 5.2 HP 12Vdc Series Wound
- Switch: 450A Sealed Contactor
- Controller: Wired - Hand Held With 20ft Lead / Wireless - Optional 20156
- Battery Leads: 6ft
- Battery Recommendation: 650Cca
- Gear Train: 3-Stage Planetary
- Clutch: Freespooling
- Brake: Automatic Load Holding In Drum
- Drum Dia X L: 2.5In X 2.7In (63.5 X 70mm)
- Wire Rope: 8.1mm X 47.5ft
- Winch Mounting Bolt Pattern: 4.5 X 4In
- Plate Mounting Bolt Pattern: 2 X 5.8In
- Warranty: 2 Year Limited
Package Contents:
- Bulldog Winch 7800lb Trailer Winch
Bulldog Winch 7800lb Trailer Winch Orderable Models
List of Orderable Models

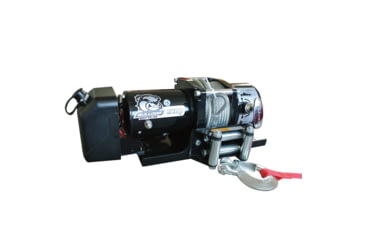

- Bulldog Winch 7800lb Trailer Winch, 47.6ft Wire Rope, Roller Fairlead, Mnt Plate, Low Profile, 10031 , MPN: 10031 , UPC: 878850003973 , Code: 4RF-CR1-TR78WC-10031

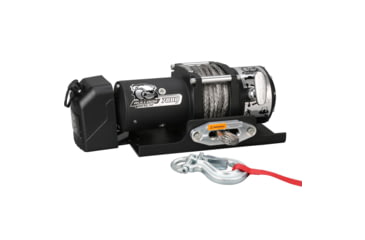

- Bulldog Winch 7800lb Trailer Winch, 50ft Synth Rope, Roller Fairlead, Mnt Plate, Low Profile, 10032 , MPN: 10032 , UPC: 878850003980 , Code: 4RF-CR1-TR78WC-10032
