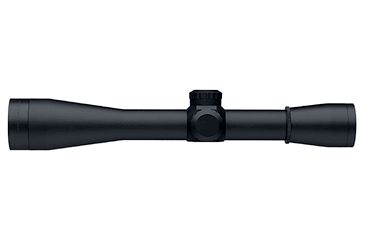

Your Browser is OutdatedLeupold Mark 4 10x40 LR/T M3 Matte Black Long Range Mil Dot Reticle Tactical Rifle Scopes 47638 Personalized by Leupold Custom Shop Rifle scope
Tap Tap to Zoom
Read More...
Product Not Available for Order Yet
Leupold Mark 4 10x40 LR/T M3 Matte Black Long Range Mil Dot Reticle Tactical Rifle Scopes 47638 Personalized by Leupold Custom Shop Rifle scope is not available yet, but it is coming to our store soon! If you are looking for something you can receive sooner, please consider the replacements selected by our product experts below
Product Info for Leupold Mark 4 10x40 LR/T M3 Matte Black Long Range Mil Dot Reticle Tactical Rifle Scopes 47638 Personalized by Leupold Custom Shop Rifle scope
The following spec is for a standard model of Leupold Mark 4 10x40 LR/T M3 Matte Black Long Range Tactical Rifle Scopes 47638. Please note that if you select one of the custom rifle scope options, the standard specs for the Rifle Scope might change according to your selection.
Leupold Mark 4 Long Range / Tactical 10x40mm LR/T M3 Matte Rifle Scope w/ Mil Dot Reticle 47638 features bullet drop compensation adjustments. The M3 adjustment dials are specially calibrated and interchangeable to allow bullet drop compensation. Adjustment increments of 1 MOA elevation and 1/2 MOA windage allow for easy adjustment, while the side parallax adjustment dial makes it possible to eliminate parallax while remaining in shooting position.
In addition to Leupold Mark 4 10x40mm LR/T M3 Matte Black Long Range Mil Dot Reticle Tactical Rifle Scopes 47638 Personalized by Leupold Custom Shop, make sure to check other Leupold Rifle Scopes and other Leupold Custom products offered in our store.
Leupold Mark 4 10x40mm LR/T M3 Matte Black Long Range Tactical Rifle Scopes w/ Mil Dot Reticle - 47638 can also be purchased without personalization and customization options. Please see Leupold Mark 4 10x40mm LR/T M3 Matte Black Long Range Tactical Rifle Scopes w/ Mil Dot Reticle - 47638 for specifications and pricing details.
Specifications for Leupold Mark 4 10x40 LR/T M3 Matte Black Mil Dot Reticle Rifle Scopes:
| Reticle:Â | Â Mil Dot | |
| Actual Magnification:Â | Â 10.0 | |
| Length (in):Â | Â 13.10 | |
| Eyepiece Length (in):Â | Â 2.70 | |
| Objective Length (in):Â | Â 4.38 | |
| Objective Diameter (in):Â | Â 1.96 | |
| Eyepiece Diameter (in):Â | Â 1.68 | |
| Tube Diameter:Â | Â 30mm | |
| Weight:Â | Â 21.0 oz. / 595 grams | |
| Eye Relief (in):Â | Â 3.4 | |
| Eye Relief (mm):Â | Â 86 | |
| Obj. Lens Diameter:Â | Â 1.6in / 40mm | |
| Max. Adjustment @ 100 yds (in):Â | Â 75(e) 52(w) | |
| Max. Adjustment @ 100 m (cm):Â | Â 200(e) 144(w) | |
| FOV @ 100 yds (ft):Â | Â 11.1 | |
| FOV @ 100 m (m):Â | Â 3.7 | |
| Â Ring Spacing | ||
| Max. Mount Ring Spacing (in):Â | Â 6.10 | |
| Front Ring Space (in):Â | Â 2.35 | |
| Rear Ring Space (in):Â | Â 2.25 | |
Features of Leupold Mark 4 10 x 40mm LR/T M3 Matte Black Mil Dot Reticle Rifle-Scope:
- Superior edge-to-edge sharpness across the visual field
- Outstanding low-light visibility
- Adjust parallax for specific ranges from 50 yards to infinity from a shooting position without taking your eye off the target using the turret-mounted focus knob
- Windage and elevation knobs feature audible and tactile -click- adjustments
- Adjustment knobs can be zeroed once sighted in
- Leupold Mark 4 M3-10x40 Rifle Scope has a Bullet Drop Compensation dial
- Maintube milled from a solid piece of 6061-T6 aircraft aluminum
- 30mm diameter maintube for extended travel of the windage and elevation adjustments
- All Leupold Mark-IV rifle-scopes come with a lens shade and Butler Creek Flip Open lens covers
Package Contents:
- Leupold Mark 4 10 x 40 LR/T M3 Matte Black Long Range/Tactical Scope w/ Mil Dot Reticle 47638
