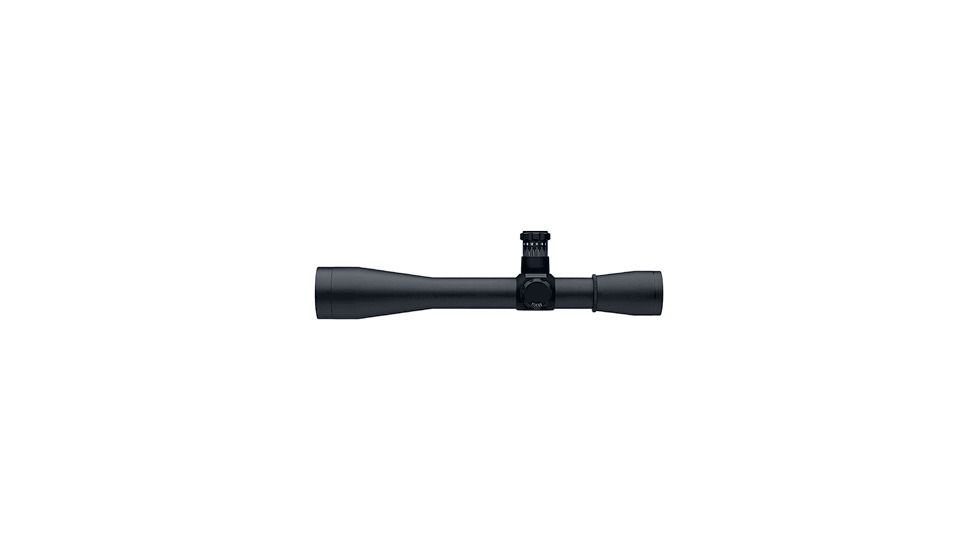

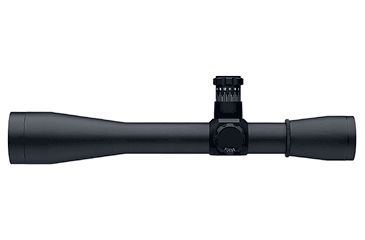

Leupold Mark 4 16x40 LR/T M1 TMR Rifle Scopes 60095 Personalized by Leupold Custom Shop Rifle scope is not available yet, but it is coming to our store soon! If you are looking for something you can receive sooner, please consider the replacements selected by our product experts below
The following spec is for a standard model of Leupold Mark 4 16x40 LR/T M1 Rifle Scopes 60095. Please note that if you select one of the custom rifle scope options, the standard specs for the Rifle Scope might change according to your selection.![]()
Leupold Mark 4 16x40mm LR/T M1 Long Range / Tactical Rifle Scope w/ TMR 60095 - Leupold Custom' s goal of a that would be ideally suited to the special needs of the military and high intensity law enforcement organizations was achieved in the creation of the Leupold Mark 4 series. With a 30mm maintube, edge-to-edge optical sharpness and excellent low-light capability, Leupold Mark 4 16 x 40 LR/T M1 Rifle-Scope is not only astoundingly durable, the Leupold Scope is optically outstanding as well. The M1's oversized adjustment knobs give the user audible and tactile confirmation of each 1/4-MOA click, and can be zeroed after sighting in.
| Actual Magnification:Â | Â 15.6 | |
| Reticle:Â | Â Tactical Milling Reticle (TMR) | |
| Length (in):Â | Â 12.90 | |
| Eyepiece Length (in):Â | Â 2.70 | |
| Objective Length (in):Â | Â 4.34 | |
| Objective Diameter (in):Â | Â 1.96 | |
| Eyepiece Diameter (in):Â | Â 1.68 | |
| Tube Diameter:Â | Â 30mm | |
| Weight:Â | Â 22.5 oz. / 638 grams | |
| Eye Relief (in):Â | Â 4.0 | |
| Eye Relief (mm):Â | Â 101 | |
| Obj. Lens Diameter:Â | Â 1.6in / 40mm | |
| Max. Adjustment @ 100 yds (in):Â | Â 140(e) 45(w) | |
| Max. Adjustment @ 100 m (cm):Â | Â 389(e) 125(w) | |
| FOV @ 100 yds (ft):Â | Â 6.8 | |
| FOV @ 100 m (m):Â | Â 2.3 | |
| Â Ring Spacing | ||
| Max. Mount Ring Spacing (in):Â | Â 6.00 | |
| Front Ring Space (in):Â | Â 3.10 | |
| Rear Ring Space (in):Â | Â 1.39 | |
