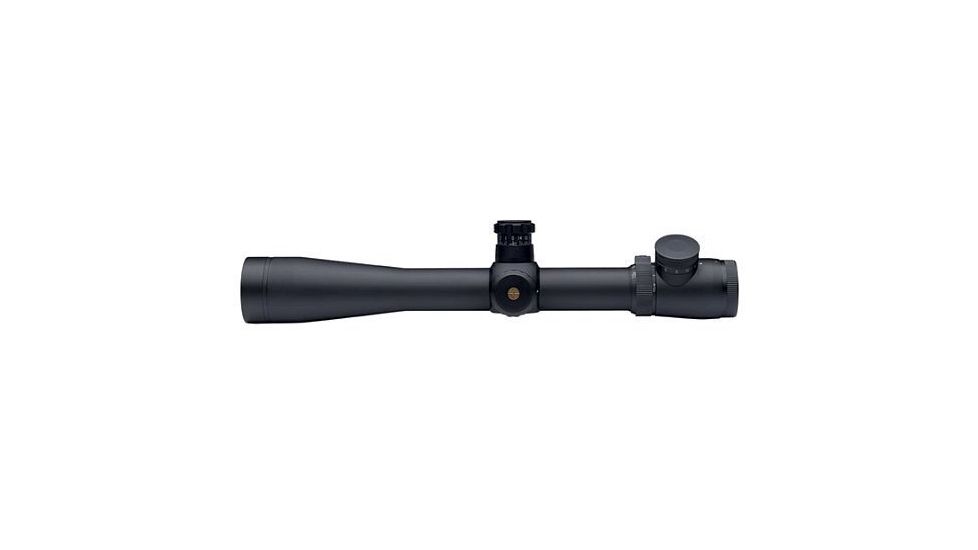

Leupold Mark 4 3.5-10x40mm LR/T M1 Illuminated Reticle Tactical Rifle Scopes Personalized by Leupold Custom Shop is not available yet, but it is coming to our store soon! If you are looking for something you can receive sooner, please consider the replacements selected by our product experts below
The following spec is for a standard model of Leupold Mark 4 3.5-10x40mm LR/T M1 Illuminated Reticle Tactical Rifle Scopes. Please note that if you select one of the custom rifle scope options, the standard specs for the Rifle Scope might change according to your selection.![]()
Incorporating the features of the Mark 4 M1 and VX-3 Illuminated Reticle scopes, the Mark 4 3.5-10x40mm LR/T M1 Illuminated Reticle Rifle Scope from Leupold Custom features M1-style adjustments and an eleven position illuminated reticle control dial.
The following models of Mark 4 3.5-10x40mm Long Range / Tactical (LR/T) M1 Illuminated Reticle Leupold Scopes are available:
| Actual Magnification:Â | Â 3.2(3.5x) 9.5(10x) | |
| Length (in):Â | Â 13.5 | |
| Eyepiece Length (in):Â | Â 3.0 | |
| Objective Length (in):Â | Â 4.3 | |
| Objective Diameter (in):Â | Â 1.8 | |
| Eyepiece Diameter (in):Â | Â 1.7 | |
| Tube Diameter:Â | Â 30mm | |
| Weight:Â | Â 21.0 oz. / 595 grams | |
| Eye Relief (in):Â | Â 4.7(3.5x) 3.4(10x) | |
| Eye Relief (mm):Â | Â 119(3.5x) 93(10x) | |
| Obj. Lens Diameter:Â | Â 1.575in / 40mm | |
| Max. Adjustment @ 100 yds (in):Â | Â 65 | |
| Max. Adjustment @ 100 m (cm):Â | Â 181 | |
| FOV @ 100 yds (ft):Â | Â 29.9(3.5x) 11.0(10x) | |
| FOV @ 100 m (m):Â | Â 10.0(3.5x) 3.7(10x) | |
| Â Ring Spacing | ||
| Max. Mount Ring Spacing (in):Â | Â 6.2 | |
| Front Ring Space (in):Â | Â 2.4 | |
| Rear Ring Space (in):Â | Â 2.4 | |
