Leupold Mark 4 4.5-14x50 LR/T M1 Long Range Tactical Rifle Scopes Personalized by Leupold Custom Shop is not available yet, but it is coming to our store soon! If you are looking for something you can receive sooner, please consider the replacements selected by our product experts below

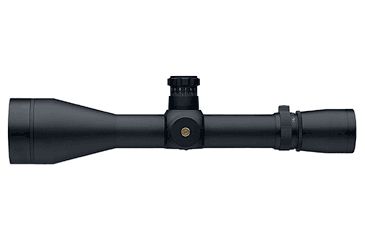

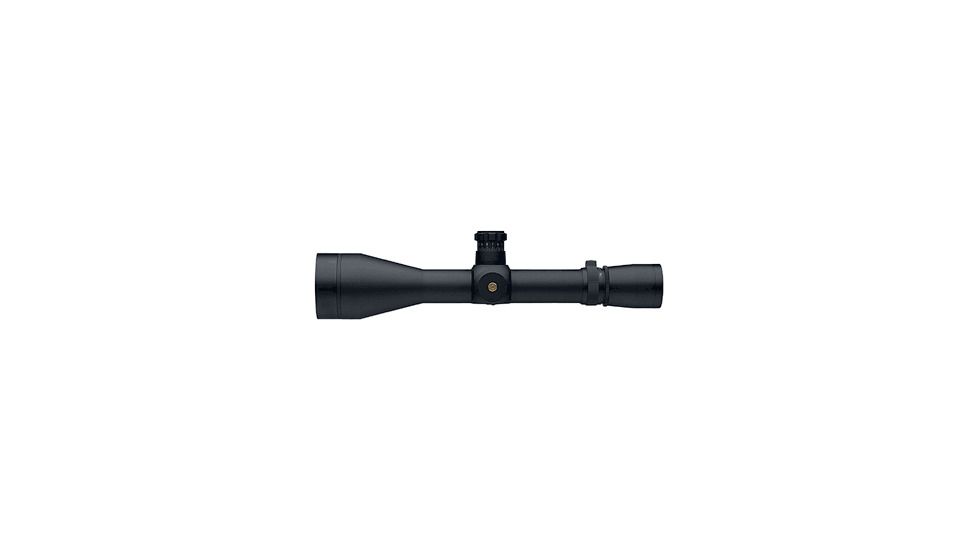

Product Info for Leupold Mark 4 4.5-14x50 LR/T M1 Long Range Tactical Rifle Scopes Personalized by Leupold Custom Shop
The following spec is for a standard model of Leupold Mark 4 4.5-14x50 LR/T M1 Long Range Tactical Rifle Scopes. Please note that if you select one of the custom rifle scope options, the standard specs for the Rifle Scope might change according to your selection.
The mid-range magnification levels, tactical matte finish, and target-style adjustment dials of the Leupold Mark 4 4.5-14 x 50mm Long Range / Tactical LR/T M1 Rifle Scope make it a favorite of law enforcement departments. Its adjustable objective and 14x high magnification level allow it to really reach out to considerable distances. Index Matched lens coatings enable it to provide a very clear, very bright image to the user.
The following models of Mark 4 4.5-14x50 LR/T M1 Leupold Rifle-scopes are available:
- Leupold 54660 - Matte Black Finish, Duplex Reticle;
- Leupold 54560 - Matte Black Finish, Mil Dot Reticle;
- Leupold 60005 - Matte Black Finish, Tactical Milling Reticle (TMR)
Specifications for Leupold Mark-4 4.5 - 14x50mm LR/T M1 Rifle Scope:
| Actual Magnification:Â | Â 4.8(4x) 14.3(14x) | |
| Length (in):Â | Â 12.5 | |
| Eyepiece Length (in):Â | Â 3.2 | |
| Objective Length (in):Â | Â 3.7 | |
| Objective Diameter (in):Â | Â 2.3 | |
| Eyepiece Diameter (in):Â | Â 1.6 | |
| Tube Diameter:Â | Â 30mm | |
| Weight:Â | Â 22.0 oz. / 624 grams | |
| Eye Relief (in):Â | Â 4.5(4.5x) 3.6(14x) | |
| Eye Relief (mm):Â | Â 113(4.5x) 93(14x) | |
| Obj. Lens Diameter:Â | Â 2.0in / 50mm | |
| Max. Adjustment @ 100 yds (in):Â | Â 75 (e) 70 (w) | |
| Max. Adjustment @ 100 m (cm):Â | Â 191 | |
| FOV @ 100 yds (ft):Â | Â 19.0(4.5x) 7.6(14x) | |
| FOV @ 100 m (m):Â | Â 6.3(4.5x) 2.5(14x) | |
| Â Ring Spacing | ||
| Max. Mount Ring Spacing (in):Â | Â 5.5 | |
| Front Ring Space (in):Â | Â 1.6 | |
| Rear Ring Space (in):Â | Â 2.4 | |
Features of Leupold Mark 4 4.5 - 14 x 50mm LR/T M1 Rifle-Scope:
- Index Matched Lens System for the highest levels of light transmission and the brightest sight picture possible
- M1 dials have 1/4-MOA -click- adjustments
- Audible, tactile clicks let you adjust with extreme precision
- 30mm maintubes for increased windage and elevation adjustment
- Finger-adjustable, knurled windage and elevation adjustment tall M1 dials
- Butler Creek Flip-Open Lens Covers come standard with all Mark 4 LR/T Rifle Scopes
Package Contents:
- Leupold Mark 4 4.5-14x50 LR/T M1 Long Range/Tactical Scope
