Leupold Mark 4 8.5-25x50mm LR/T M1 Illuminated Reticle Long Range Tactical Rifle Scope Personalized by Leupold Custom Shop is not available yet, but it is coming to our store soon! If you are looking for something you can receive sooner, please consider the replacements selected by our product experts below
The following spec is for a standard model of Leupold Mark 4 8.5-25x50mm LR/T M1 Illuminated Reticle Long Range Tactical Rifle Scope. Please note that if you select one of the custom rifle scope options, the standard specs for the Rifle Scope might change according to your selection.![]()

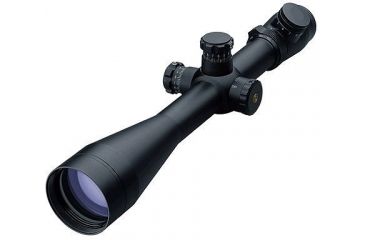

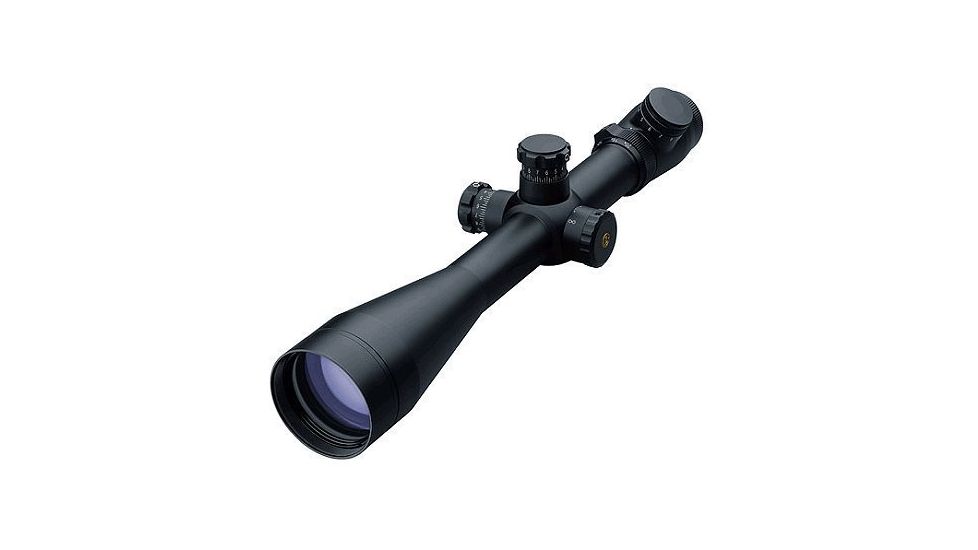

For the solution to those situations where distance cannot be allowed to stand in the way of the mission, Leupold Custom combined the magnifying power of a long range rifle-scope with a central design that is pure tactical to create the Leupold Mark 4 8.5-25x50 LR/T M1 Illuminated Reticle Rifle Scope.
The following models of Mark4 8.5 - 25x50mm LR/T M1 Illuminated Reticle Long Range / Tactical Leupold Scopes are available:
| Actual Magnification:Â | Â 8.2(8.5) 25.1(25) | |
| Length (in):Â | Â 14.4 | |
| Eyepiece Length (in):Â | Â 3.2 | |
| Objective Length (in):Â | Â 4.9 | |
| Objective Diameter (in):Â | Â 2.3 | |
| Eyepiece Diameter (in):Â | Â 1.7 | |
| Tube Diameter:Â | Â 30mm | |
| Weight:Â | Â 22.5 oz. / 638 grams | |
| Eye Relief (in):Â | Â 5.3(8.5) 3.7(25) | |
| Eye Relief (mm):Â | Â 134(8.5) 94(25) | |
| Obj. Lens Diameter:Â | Â 2.0in / 50mm | |
| Max. Adjustment @ 100 yds (in):Â | Â 72 (e) 70 (w) | |
| Max. Adjustment @ 100 m (cm):Â | Â 183 (e) 178 (w) | |
| FOV @ 100 yds (ft):Â | Â 11.2(8.5) 4.4(25) | |
| FOV @ 100 m (m):Â | Â 3.7(8.5) 1.4(25) | |
| Â Ring Spacing | ||
| Max. Mount Ring Spacing (in):Â | Â 6.5 | |
| Front Ring Space (in):Â | Â 2.6 | |
| Rear Ring Space (in):Â | Â 2.4 | |
