Leupold Mark 4 Long Range/Tactical 3.5-10x40 LR/T M3 Rifle Scopes Personalized by Leupold Custom Shop is not available yet, but it is coming to our store soon! If you are looking for something you can receive sooner, please consider the replacements selected by our product experts below

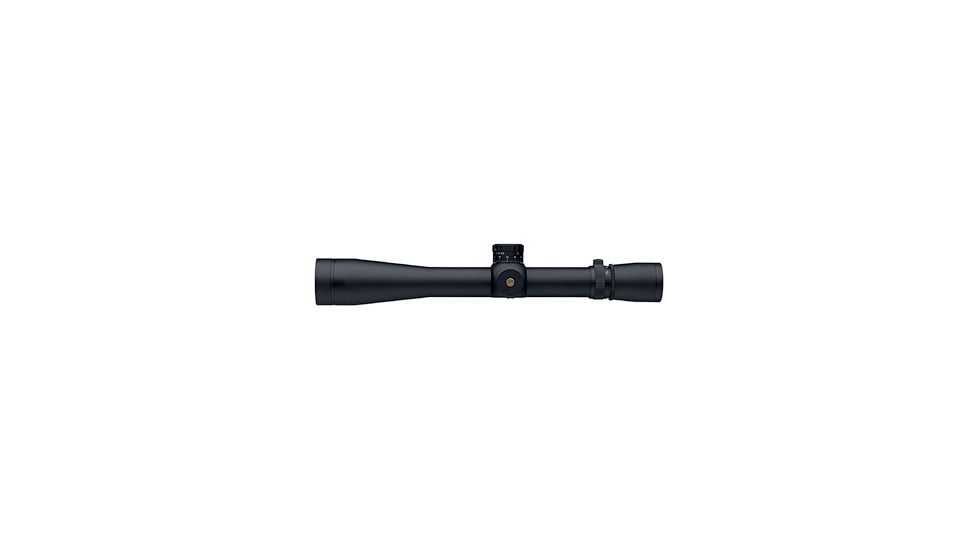

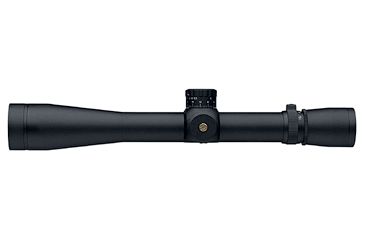

Product Info for Leupold Mark 4 Long Range/Tactical 3.5-10x40 LR/T M3 Rifle Scopes Personalized by Leupold Custom Shop
The following spec is for a standard model of Leupold Mark 4 Long Range/Tactical 3.5-10x40 LR/T M3 Rifle Scopes. Please note that if you select one of the custom rifle scope options, the standard specs for the Rifle Scope might change according to your selection.
Incorporating the best features of the Mark 4 M3 and VX-3 Rifle Scopes, the Mark 4 3.5-10x40mm LR/T M3 Rifle-Scope from Leupold Custom features M3-style adjustment dials that are specially calibrated and interchangeable for bullet drop compensation. Adjustment increments of 1 MOA elevation and 1/2 MOA windage allow for easy adjustment. A side parallax adjustment dial allows parallax elimination from a shooting position.
The following models of Mark-4 3.5-10x40 LR / T M-3 Leupold Rifle-Scopes are available:
- Leupold 51850 - Matte Black Finish, Mil Dot Reticle
- Leupold 60025 - Matte Black Finish, Tactical Milling Reticle (TMR)
Specifications for Leupold Mark-4 3.5-10x40 LR/T M 3 Rifle Scope:
| Actual Magnification: | 3.2(3.5x) 9.5(10x) | |
| Length (in): | 13.50 | |
| Eyepiece Length (in): | 3.2 | |
| Objective Length (in): | 4.30 | |
| Objective Diameter (in): | 1.80 | |
| Eyepiece Diameter (in): | 1.60 | |
| Tube Diameter: | 30mm | |
| Weight: | 19.5 oz. / 553 grams | |
| Eye Relief (in): | 4.7(3.5x) 3.4(10x) | |
| Eye Relief (mm): | 119(3.5x) 93(10x) | |
| Obj. Lens Diameter: | 1.575in / 40mm | |
| Max. Adjustment @ 100 yds (in): | 65 | |
| Max. Adjustment @ 100 m (cm): | 181 | |
| FOV @ 100 yds (ft): | 29.9(3.5x) 11.0(10x) | |
| FOV @ 100 m (m): | 10.0(3.5x) 3.7(10x) | |
| Ring Spacing | ||
| Max. Mount Ring Spacing (in): | 6.20 | |
| Front Ring Space (in): | 2.40 | |
| Rear Ring Space (in): | 2.40 | |
Features of Leupold Mark-4 3.5 - 10x40 mm LR / T M3 Rifle Scope:
- Index Matched Lens System for the highest levels of light transmission and the brightest sight picture possible
- M3 dials have 1/2-MOA windage dials and 1-MOA elevation dials
- Audible, tactile clicks let you adjust with extreme precision
- 30mm maintubes for increased windage and elevation adjustment
- Finger-adjustable, knurled windage and elevation adjustment bullet drop compensation marked M3 dials
- Butler Creek Flip-Open Lens Covers come standard with all Mark 4 LR/T Rifle Scopes
Package Contents:
- Leupold Mark 4 3.5-10x40 LR/T M3 Long Range Tactical Rifle Scope
