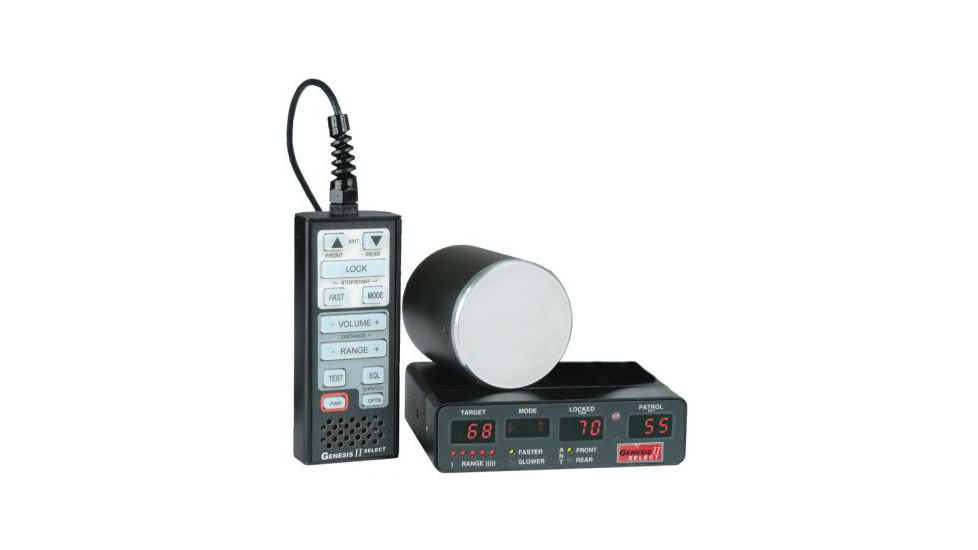

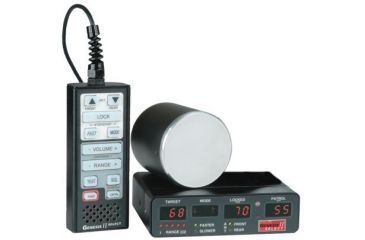

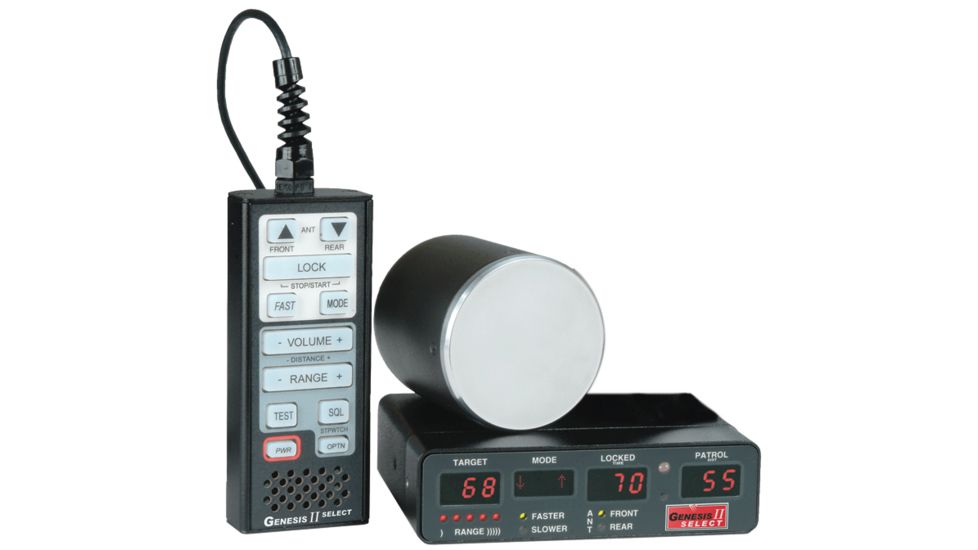

Decatur Genesis II Select Directional Law Enforcement Radar System has become the industry standard for high-performance police radar. The Decatur Genesis-2 Traffic Safety System features stationary, opposite direction moving modes of operation and has 4 display windows: target, mode, lock and patrol speed. The Decatur Genesis 2 Police Radar Select is compatible with K Band antennas and is able to automatically determine if a same lane target is going faster or slower than the patrol car. The unit can now provide the operator with the proper same lane target speed instantly, requiring no additional steps by the operator. Whether the patrol vehicle is stationary or moving, the Decatur Genesis II Select Law Enforcement Police Radar makes it easier to identify your target.
Performance Specification: | |
: | |
Stationary Accuracy: | +/-1 MPH/KPH |
Moving Accuracy: | +/- 2 MPH/KPH |
Target Speed Range: | 10-210 MPH/KPH |
Patrol Speed Range: | 5-100 MPH/KPH |
Speed Sampling Rate: | 100 Samples/Sec. |
Microwave Specifications: | |
: | |
Operating Frequency: | K-Band, 24.150 GHz |
Beam Width: | 12 Degrees Nominal |
Power Output: | 10 mW Nominal |
Electrical Specifications: | |
: | |
Input Voltage: | 10.8- 16.5 VDC |
Operating Temperature: | -30° C - +70° C |
DSP Computer: | 32-Bit Processing |
Mechanical Specifications: | |
: | |
Display Unit: | 1.45"H x 5.25"W x 1.1"D |
Computer Unit: | 1.45"H x 5.25"W x 3"D |
Combined Weight: | 1.3 Pounds |
K-Band Directional: | 0.7 Pounds |
Antenna: | 1.4 Pounds (Combined) |
