Product Info for DNZ Products Game Reaper Scope Mount - Winchester
Winchester 70:
Look at hole to hole measurements below before ordering! 2009 and newer short action caliber firearms are made on the WSM action.
Mounts fit right hand firearms.
Base screws are 6-48 X 1/4 long and ring screws are 6-40 X 5/8 long. Both screws use a 7/64 Allen wrench.
WSSM action Outside to outside of rings is 3.82. Standard rings are .63 wide and have 2 ring screws per ring. 4 Hole to hole spacing dimensions are .86, 3.23, .50. Height of mounts from top of receiver to centerline of scope tube is low .92, medium 1.05, and high 1.17.
Short action Outside to outside of rings is 3.92. Standard rings are .63 wide and have 2 ring screws per ring. 4 Hole to hole spacing dimensions are .86, 3.27, .86. Height of mounts from top of receiver to centerline of scope tube is low .92, medium 1.05, and high 1.17.
WSM action Outside to outside of rings is 4.18 on standard ring mounts. Standard rings are .63 wide and have 2 ring screws per ring. Tactical rings are .80 wide and have 4 screws per ring. 4 Hole to hole spacing dimensions are .86, 3.53, .86. Height of mounts from top of receiver to centerline of scope tube is low .92, medium 1.05, and high 1.17.
Long action Outside to outside of rings is 4.46 on standard ring mounts. Standard rings are .63 wide and have 2 ring screws per ring. Tactical rings are .80 wide and have 4 screws per ring. 4 Hole to hole spacing dimensions are .86, 3.81, .86. Height of mounts from top of receiver to centerline of scope tube is low .92, medium 1.05, and high 1.17.
Winchester XPR
Mounts use 8-40 X 1/4 long base screws. 6-40 X 5/8 long ring screws.
Short action Outside to outside of rings is 4.07. Standard rings are .63 wide and have 2 ring screws per ring. 4 Hole to hole spacing dimensions are .86, 3.35, .86. Height of mounts from top of receiver to centerline of scope tube is low .94, medium 1.06, and high 1.19.
Long action Outside to outside of rings is 4.58 on standard ring mounts. Standard rings are .63 wide and have 2 ring screws per ring. 4 Hole to hole spacing dimensions are .86, 3.862, .86. Height of mounts from top of receiver to centerline of scope tube is low .94, medium 1.06, and high 1.19.
Specifications for DNZ Products Game Reaper Scope Mount - Winchester:
| Manufacturer: | DNZ Products |
| Fabric/Material: | 6061-T6 Aluminum |
| Gun Make: | Winchester |
| Tube Diameter: | 1 in |
| Ring Height: | Medium |
| Included Accessories: | Standard |
| Gun Model: | Winchester Model 70 |
| Condition: | New |
Features of DNZ Products Game Reaper Scope Mount - Winchester:
- Precision machined from a solid block of top-grade billet aluminum
- Custom made to fit each type of firearm and align perfectly with your rifles receiver
- No moving parts between the firearm and the scope
- 67% lighter than comparable one-piece mounts with four times the threads and precision socket-head cap screws for absolute strength and security
- Absorbs shock and withstands temperature extremes better than steel mounts at a fraction of the weight
Package Contents:
- DNZ Products Game Reaper Scope Mount - Winchester
DNZ Products Game Reaper Scope Mount - Winchester Orderable Models
List of Orderable Models
- DNZ Products Game Reaper Scope Mount, Winchester Model 70, 1 in Tube, Medium Ring, 0 MOA, Black, 20600T , MPN: 20600T , UPC: 879956009944 , Code: DZ-SCM-GRSMWSTR-20600T

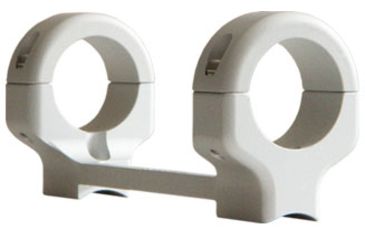

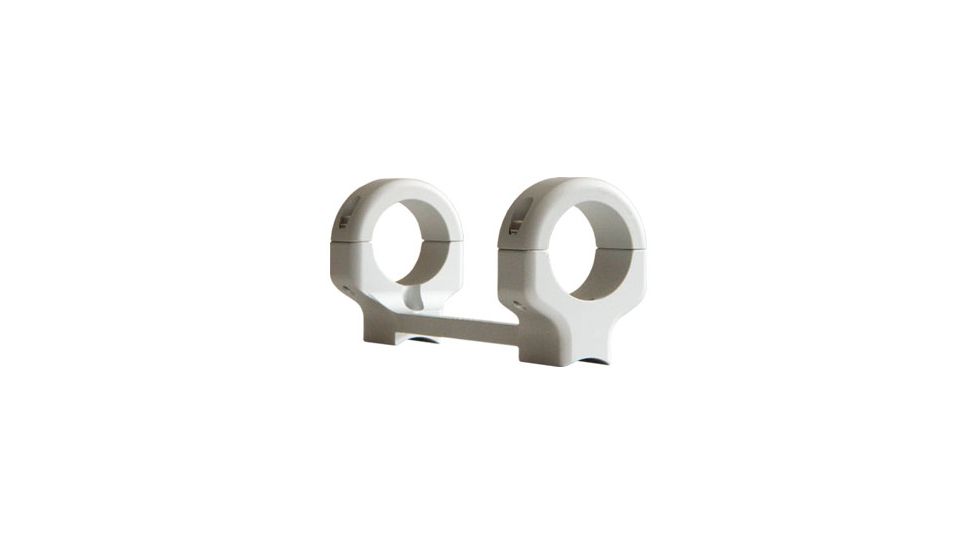

- DNZ Products Game Reaper Scope Mount, Winchester Model 70, 1 in Tube, Medium Ring, 0 MOA, Silver, 20600TS , MPN: 20600TS , UPC: 879956009951 , Code: DZ-SCM-GRSMWSTR-20600TS
- DNZ Products Game Reaper Scope Mount, Winchester Model 70, 1 in Tube, Medium Ring, 20 MOA, Black, 20602T , MPN: 20602T , UPC: 879956009968 , Code: DZ-SCM-GRSMWSTR-20602T
