Forward Controls Design 90Q Ambidextrous AR Safety Selector ASF-90Q Color: Black, Finish: QPQ, Gun Make: AR Platform, $4.75 Off w/ Free S&H

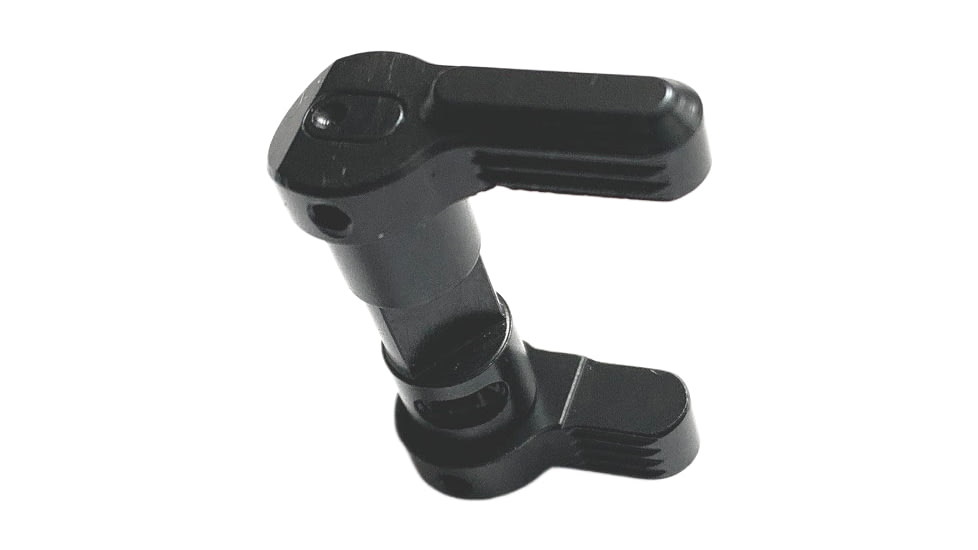

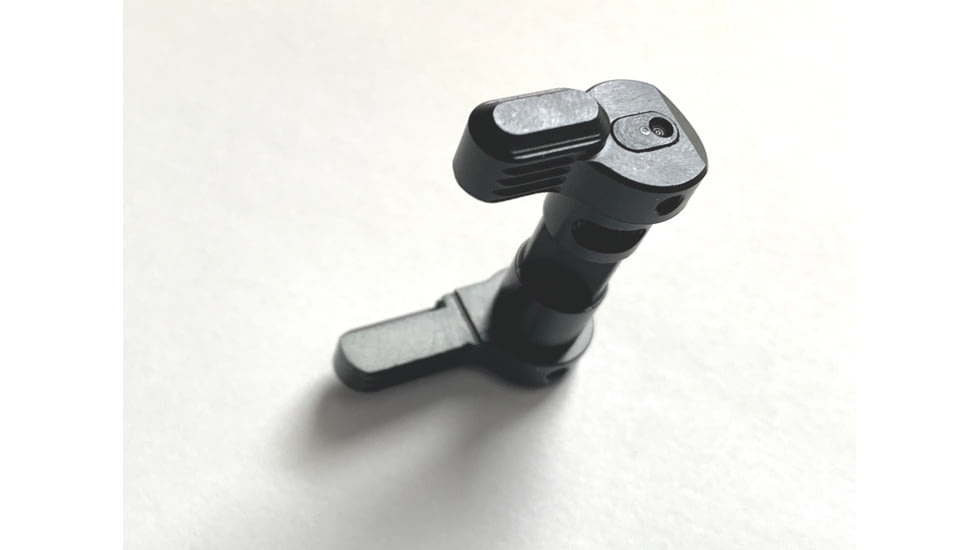

ASF-90Q is a conventional (rotate to 90 degree for FIRE/SEMI) semi auto selector with q (offset) levers.

ASF was designed from the ground up to be a defense/duty/combat safety selector, its mission is quite aptly reflected by the way its levers are attached the center, via a stainless steel roll pin. The lever to center interface is immensely strong, the high shear strength (800 lbs) 420 stainless steel spring steel roll pin simply holds the two in place, and doesn't handle any load. One of the design goals dictates there be little to no wobble between the lever and center, weve called for very tight tolerances (+0.001/-0.00) on ASF's lever and center interface to achieve that. NOTE: +/- 0.002 combined tolerance (+/- 0.001 on the levers and center's lever attachment interface) can, on rare occasions, can exhibit minute movement, this is normal, and unavoidable, the 0.002 of movement is almost imperceptible and doesn't affect ASF's function.

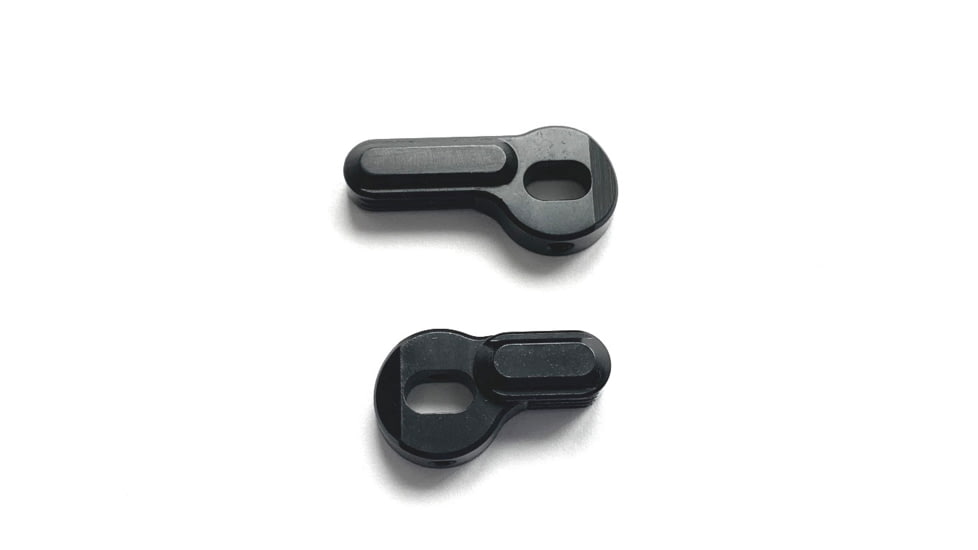

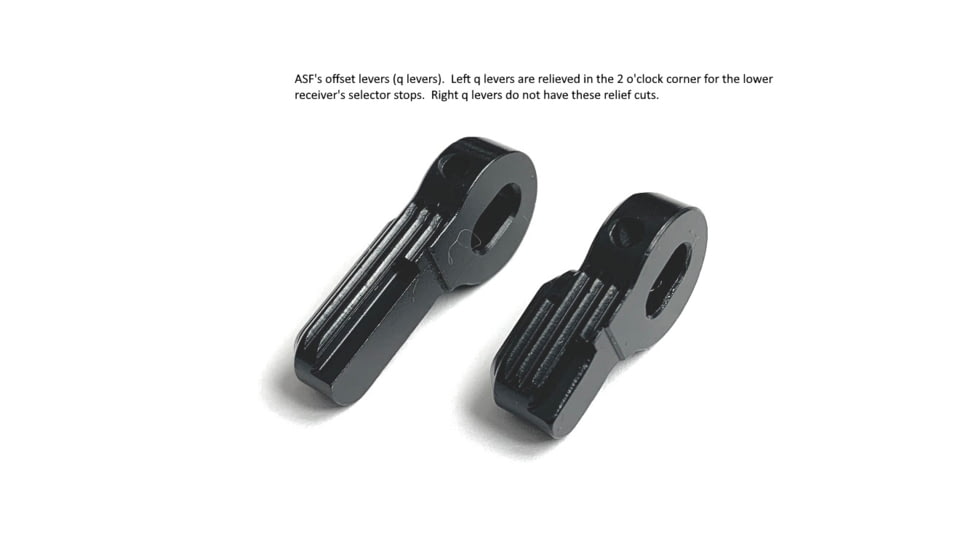

Q levers are offset levers, by shifting the lever closer to the shooter's thumb when the selector is on SEMI/FIRE, it enables the user to more easily rotate it back to SAFE without shifting his grip. For that reason, q levers are side specific, the q lever's "leg" should always be biased towards the top. With the selector on SEMI/FIRE, the q lever should look like a letter q (hence its name).

Forward Controls Design are known to many for the dimpled pattern we use on some control surfaces (AA, or All Angles, is Forward Controls Design designation). ASF levers are serrated, not dimpled. As the lever rotates, the users finger slides on the lever, anything but serrations along the length of the lever only impedes that movement and creates friction for no benefit. Serrations diagonal or perpendicular to the length of the lever are similarly unhelpful. Serrations parallel to the lever's length help mitigate lateral movement, and do not impede the finger's sliding motion. ASF lever's profile isn't square, its outer most portion is somewhat tapered for a reason. When the users hand holds the pistol grip, the profile of the ASF lever conforms to angle of the thumb's pad.

For Forward Controls Design friends and customers that wish to see dimples on the ASF, there is a single dimple on both sides to function as a position indicator (in lieu of a pointer), its elegant and simple.

ASF is shipped with a selector spring, a a FCD 17-4 PH stainless steel nitrided detent, two levers (or one lever, with an end cap), 4 roll pins (two are needed for installation, with 2 spares).

ASF centers are billet machined in 8620, heat treated and black nitrided. Levers are billet machined in 8620 and black nitrided.

ASF is a collaboration with Sons of Liberty Gunworks.

Specifications for Forward Controls Design 90Q Ambidextrous AR Safety Selector:

Features of Forward Controls Design 90Q Ambidextrous AR Safety Selector

• Ergonomic levers maximize surface area and traction
• Conventional 90 degree throw with Q levers
• Levers attach via robust roll pins

Package Contents:

• Forward Controls Design 90Q Ambidextrous AR Safety Selector
• Spring
