Forward Controls Design SF Ambidextrous AR Safety Selector ASF-SF Color: Black, Finish: Heat Treat, $5.00 Off w/ Free Shipping

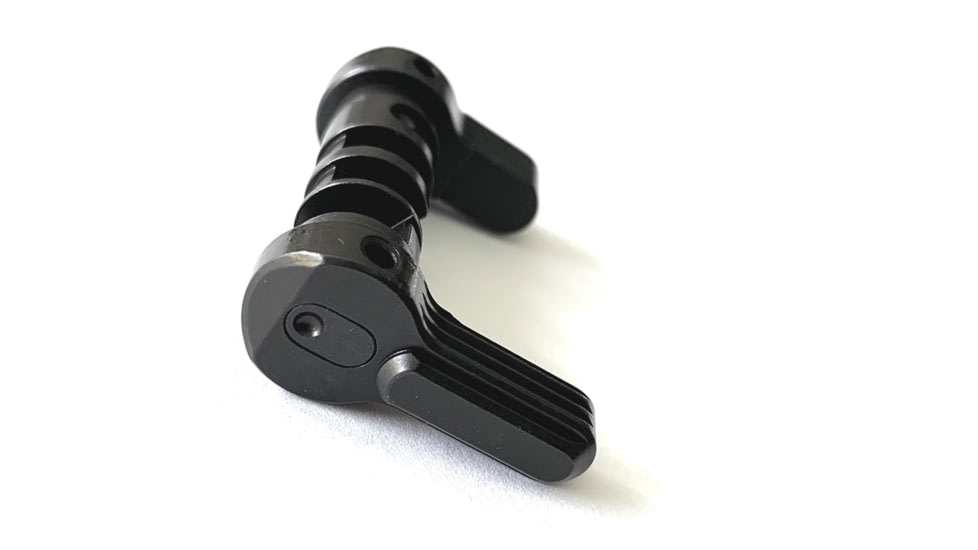

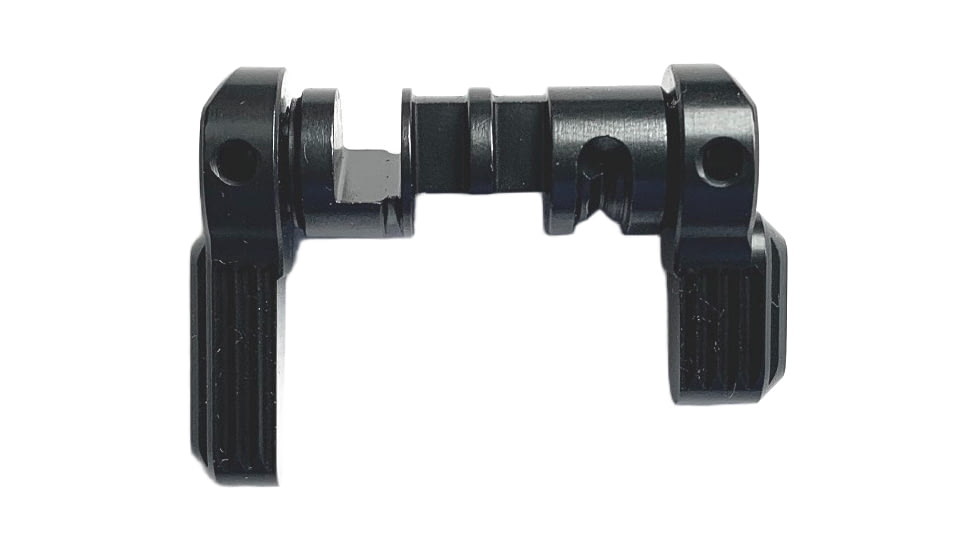

ASF-SF is a conventional 0-90-180 (rotate to 90 degree for FIRE/SEMI, rotate 90 degree further for AUTO/BURST) select fire selector with standard (non-offset) levers.

ASF was designed from the ground up to be a defense/duty/combat safety selector, its mission is quite aptly reflected by the way its levers are attached the center, via a stainless steel roll pin. The lever to center interface is immensely strong and uses an 800 lbf 420 stainless steel roll pin to hold the levers in place but doesn't handle any load. One of the design goals dictates there be little to no wobble between the lever and center and weve called for very tight tolerances (+0.001/-0.00) on the ASF's lever and center interface to achieve that. NOTE: +/- 0.002 combined tolerance (+/- 0.001 on the levers and center's lever attachment interface) can, on rare occasions, exhibit minute movement. This is normal and unavoidable. The 0.002 of movement is almost imperceptible and doesn't affect ASF's function.

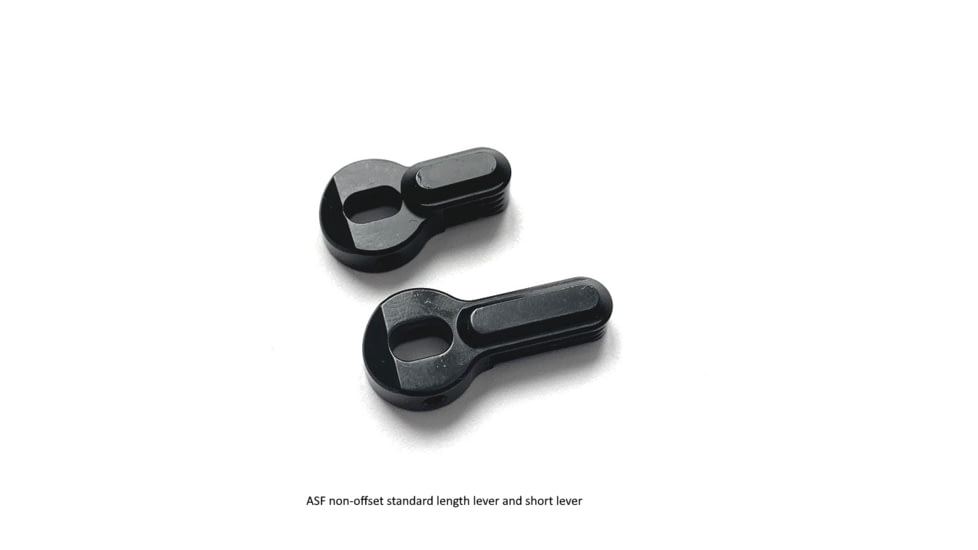

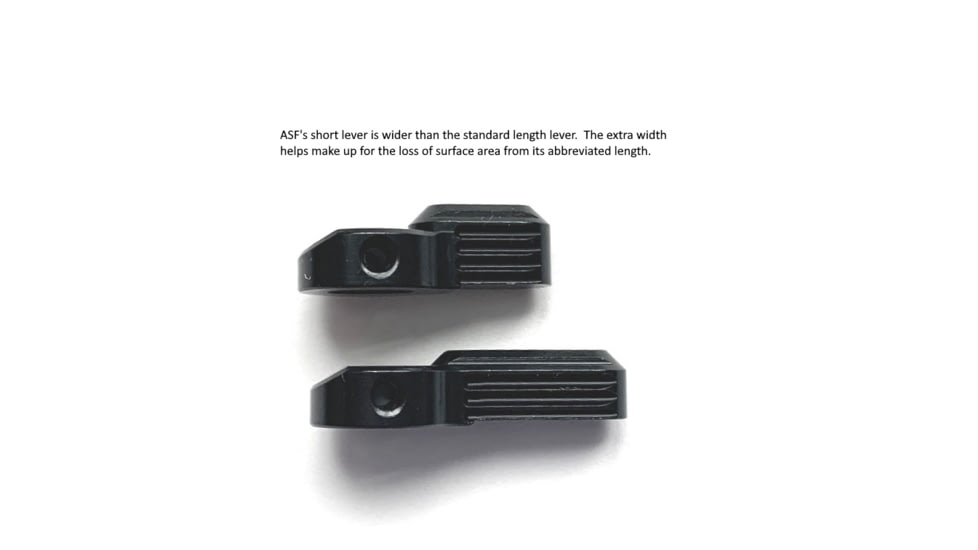

Forward Controls Design is known to many for the dimpled pattern we use on some control surfaces (AA, or All Angles, is the designation). ASF levers are serrated, not dimpled. As the lever rotates, the users finger slides on the lever, anything but serrations along the length of the lever only impedes that movement and creates friction for no benefit. Serrations diagonal or perpendicular to the length of the lever are similarly unhelpful. Serrations parallel to the lever's length help mitigate lateral movement, and do not impede the finger's sliding motion. ASF lever's profile isn't square, its outer most portion is somewhat tapered for a reason. When the users hand holds the pistol grip, the profile of the ASF lever conforms to angle of the thumb's pad.

For the friends and customers that wish to see dimples on the ASF, there is a single dimple on both sides to function as a position indicator (in lieu of a pointer), its elegant and simple.

ASF centers are billet machined in 8620, heat treated and black nitrided. Levers are billet machined in 8620 and black nitrided.

Specifications for Forward Controls Design SF Ambidextrous AR Safety Selector:

Features of Forward Controls Design SF Ambidextrous AR Safety Selector

• Ergonomic levers maximize surface area and traction
• Select Fire
• Conventional 90 degree throw with standard, non-offset levers
• Levers attach via robust roll pins

Package Contents:

• Forward Controls Design SF Ambidextrous AR Safety Selector
• Spring
• FCD 17-4 PH stainless steel nitrided detent
• 4 roll pins (two are needed for installation with 2 spares)
