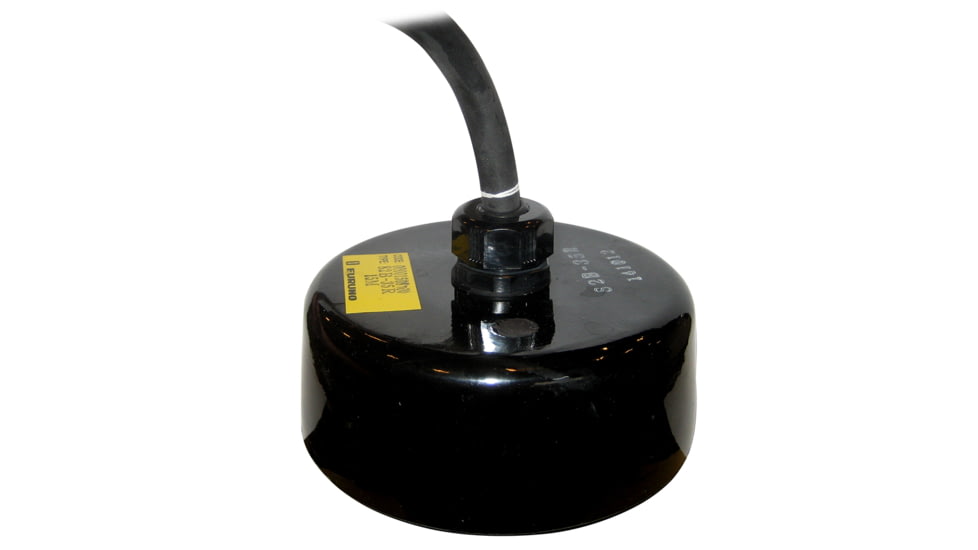

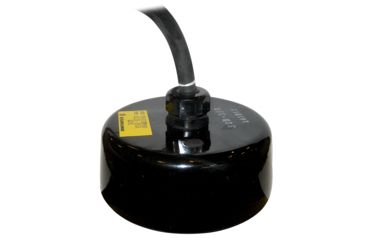

Furuno CA82B-35R FRP Tank-Mounted Transducer Color: Black, Frequency Band: 110 kHz, w/ Free Shipping

CA82B-35R FRP Tank-Mounted Transducer - 65kHz-110kHz - 2kW (No Plug)

Furuno's CA82B-35R transducer has a wide bandwidth of 65kHz-110kHz and is usable with the FCV295 FCV292 FCV1150 FCV1100 FCV1200 DFF3 and BBFF3. When used with the FCV1100/1200 sensitivity remains high even if the frequency is shifted +/- 10% to suppress interference.

The CA82B-35R may be installed in the tank of the CA88B-10 or CA100B-10R. When retrofitting these or other transducers the directional pattern and sidelobe characteristics of the beam will be different and therefore the sounder image may differ from previous installations.

Specifications for Furuno CA82B-35R FRP Tank-Mounted Transducer:

Features of Furuno CA82B-35R FRP Tank-Mounted Transducer

• 2kW
• Selectable frequency - 65kHz to 110kHz
• Beam angle becomes sharper at higher frequencies: 68kHz = 12.5 88kHz = 9.6 107kHz = 7.7
• Rugged FRP construction - tank mounted
• 15 meter cable
• No connector provided
• 88kHz frequency only
• Shipping Information: 12 lbs 14 x 14 x 9

Package Contents:

• Furuno CA82B-35R FRP Tank-Mounted Transducer
