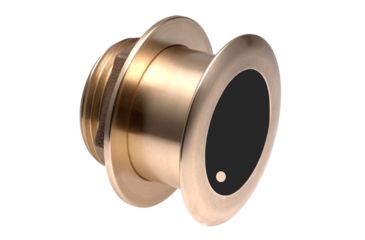

Garmin Bronze Thru-hull Wide Beam Transducer w/Depth & Temp 010-12181-20 Color: Bronze, Frequency Band: 250 kHz, w/ Free Shipping

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 0 Tilt 8-Pin - Airmar B175HW

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.

The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low medium high and high wide versions provide maximum flexibility for the choice of frequencies.

An excellent choice for fiberglass and wood hulls this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25; and a 0 to 7 deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications for Garmin Bronze Thru-hull Wide Beam Transducer w/Depth & Temp:

Features of Garmin Bronze Thru-hull Wide Beam Transducer w/Depth & Temp

• Temperature: Yes
• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Imagining: Standard
• Frequency: 150-250kHz
• Fairing Block Included: No
• Cable Length (Feet): 39'
• Chirp: High Wide
• Power: 1 kW
• Supported Deadrise/Transom Angles: 0

Package Contents:

• Garmin Bronze Thru-hull Wide Beam Transducer w/Depth & Temp
