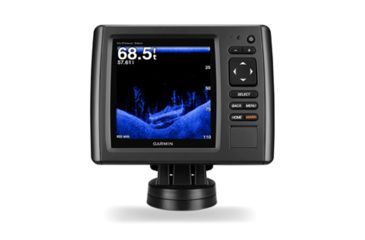

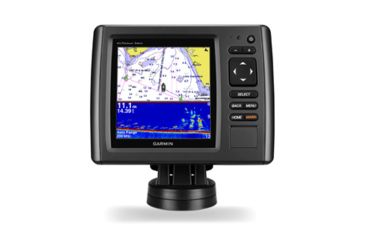

Garmin echoMAP Sonar 54DV with Transducer
Tap Tap to Zoom
Code: GA-FH-SD54-010-01384-00
MPN: 010-01384-00
UPC: 753759126551
Product Info for Garmin echoMAP Sonar 54DV with Transducer
Take an adventure to the coasts and explore everything the edges of the U.S. have to offer when you take the Garmin echoMAP Sonar 54DV with Transducer. Simple enough for any mariner, this Sonar System from Garmin makes exploring the water beneath and around your boat easier than ever, offering an unmatched crystal clear view with the traditional HD-ID sonar as well as the DownVu scanning sonar for seeing underneath your boat. When you use your sonar to find prime fishing spots, the sonar recording and sonar rewind history will help you find that same spot at a later date using your Garmin echoMAP Fishing Sonar 54DV with Transducer. The internal 5Hz GPS system locates your boat's position and heading five times every second, ensuring that you have a view in real time with the Garmin echoMAP Boating Sonar 54DV with Transducer.
Specifications for Garmin echoMAP GPS Sonar 54DV:
| Physical dimensions: | 6.8" x 5.4" x 1.7" (17.3 x 13.6 x 4.4 cm) |
| Display size, WxH: | 5.0" diagonal |
| Display resolution, WxH: | 480 x 480 pixels |
| Display type: | Square |
| Weight: | 1.3 lbs (0.6 kg) |
| Water rating: | IPX7 |
| Antenna: | Internal only |
| NMEA 0183 compatible: | Y |
| Power consumption: | 7.1W |
| Mounting options: | Bail or flush |
| Garmin Marine Network ports: | N |
| Preloaded maps: | U.S. BlueChart g2 (coastal maps) |
| Accepts data cards: | 1 microSD card |
| Waypoints: | 3,000 |
| Routes: | 100 |
| Track log: | 20,000 points; 50 saved tracks |
| Garmin Sonar compatible: | Y |
| Supports AIS (tracks target ships position): | Y |
| Supports DSC (displays position data from DSC-capable VHF radio): | Y |
| Tide tables: | Y |
| BlueChart Mobile (planning) compatible: | N |
| Dual-frequency (50/200 kHz) sonar capable: | Y |
| Dual-beam (77/200 kHz) sonar capable: | Y |
| Transmit power: | 500 W (RMS) / 4,000 W (peak to peak) |
| DownVu: | Y (built-in) |
| SideVu: | N |
| Maximum depth: | 2,300 ft @ 77 kHz, freshwater; 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| Bottom lock (shows return from the bottom up): | Y |
| Water temperature log and graph: | Y |
| Sonar recording: | Y |
| Sonar history rewind: | Y |
| NMEA 0183 input ports: | 1 |
| NMEA 0183 output ports: | 1 |
| Video input ports: | N |
| Video output ports: | N |
| Wireless connectivity: | N |
Features of Garmin echoMAP High Contrast Sonar 54DV:
- High-contrast color display with keypad control with preloaded U.S. BlueChart g2 maps
- Built-in DownVu scanning sonar with the clearest images on the water
- Built-in 500 W (RMS) HD-ID sonar (4,000 W peak-to-peak)
- 5 Hz Internal GPS updates position and heading 5 times per second
- Tilting, quick-disconnect mount
- Easy to use and easy to install
- Sunlight readable, auto dimming display and backlit keypad
- Sonar recording that saves digital information for playback on your computer
- Sonar history rewind allows you to check your sonar history while on the water
- Trolling motor transducer support
- Share user data with other Garmin devices
Package Contents:
- Garmin echoMAP Recording Sonar 54DV with Transducer
- echoMAP 53dv with preloaded BlueChart g2 maps
- Power/data cable
- Quick-release mount
- Flush mount
- Protective cover
- GT20-TM transducer (77/200kHz/DownVu, 4-pin)
- Trolling motor mount
- Hardware
- Documentation
Related Products to Garmin echoMAP Sonar 54DV with Transducer
Garmin echoMAP Sonar 54DV with Transducer Unavailable & Discontinued Models
List of Unorderable Models

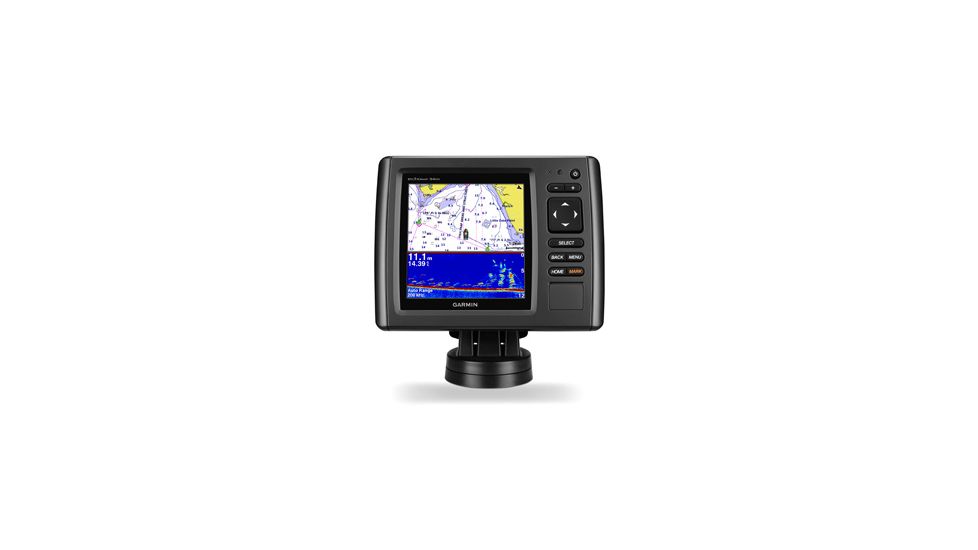

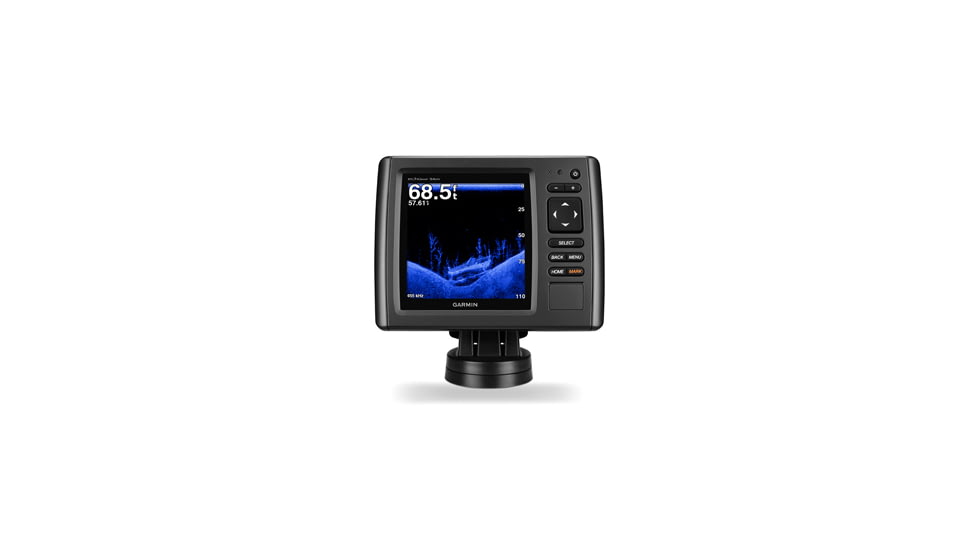

- Garmin echoMAP 54dv without Transducer 010-01384-00 , MPN: 010-01384-00 , UPC: 753759126551 , Code: GA-FH-SD54-010-01384-00

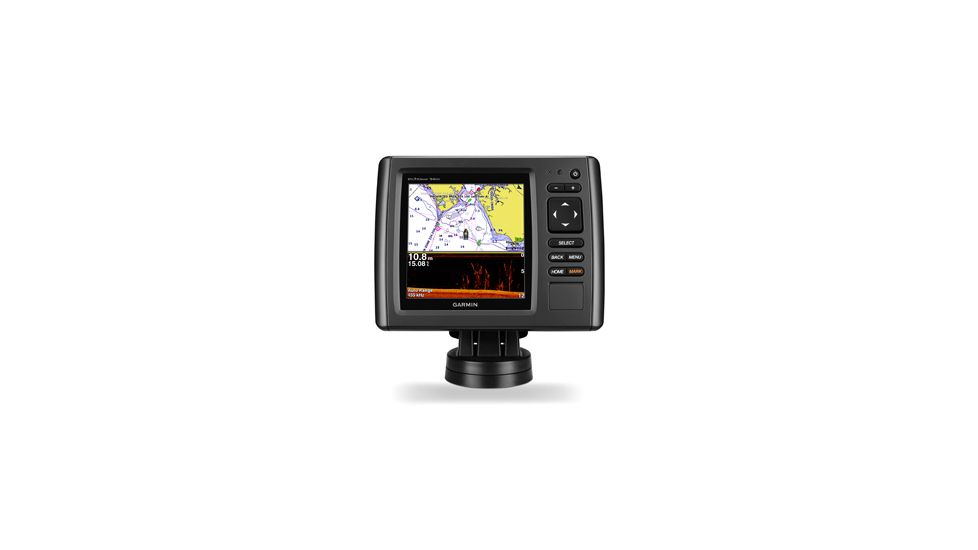

- Garmin echoMAP 54dv with Transducer 010-01384-01 , MPN: 010-01384-01 , UPC: 753759126568 , Code: GA-FH-SD54-010-01384-01
