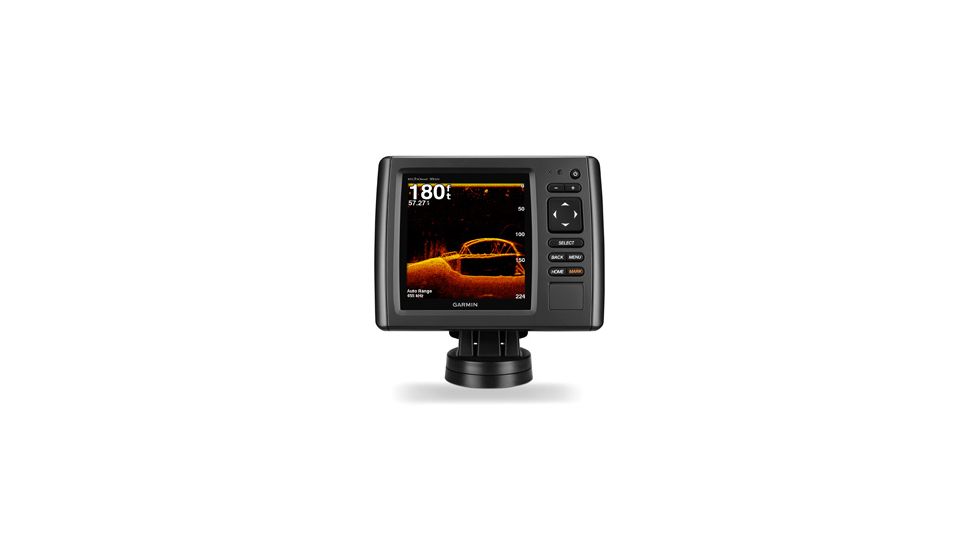

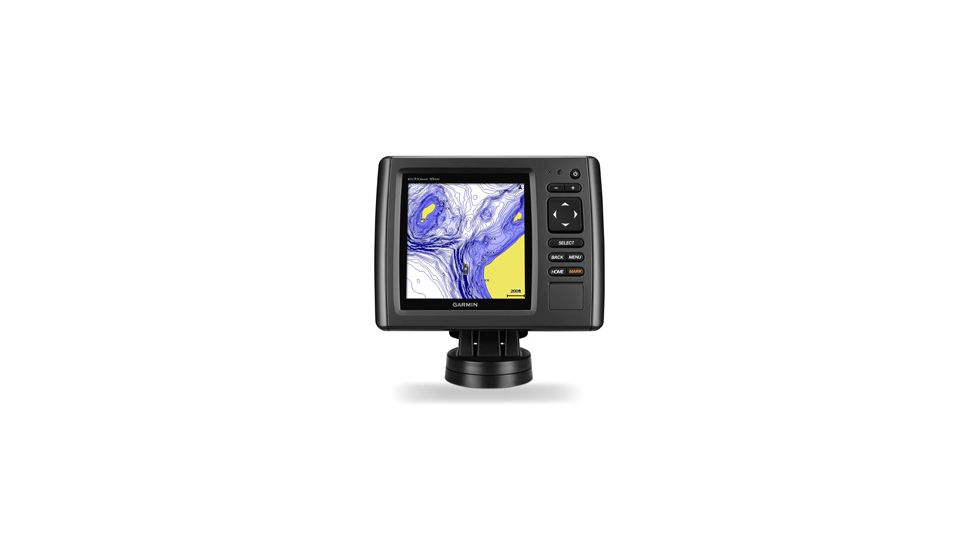

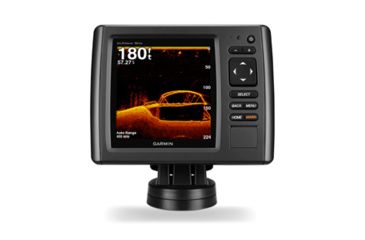

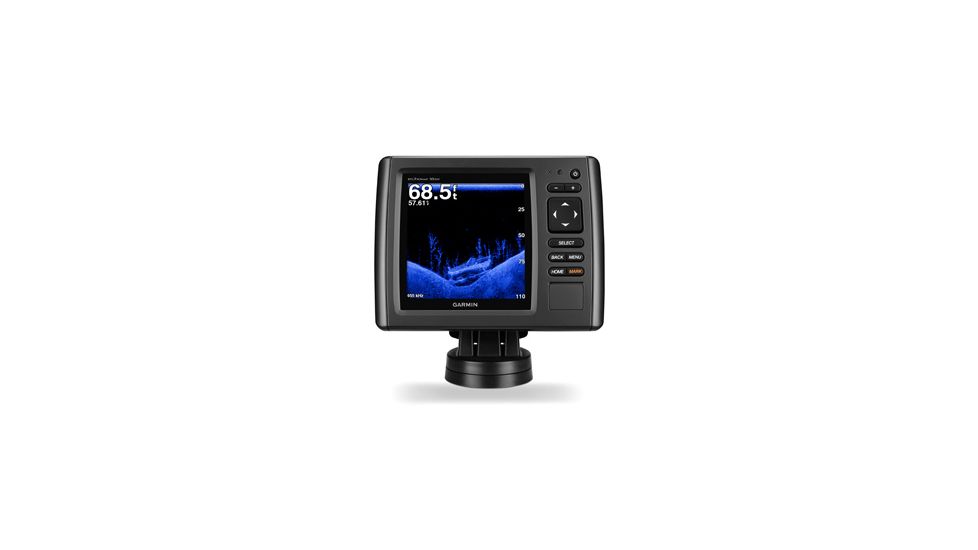

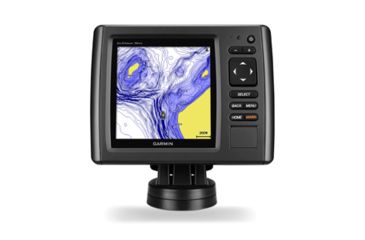

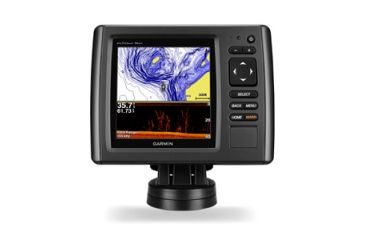

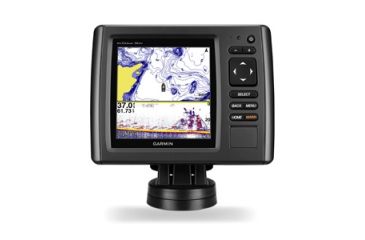

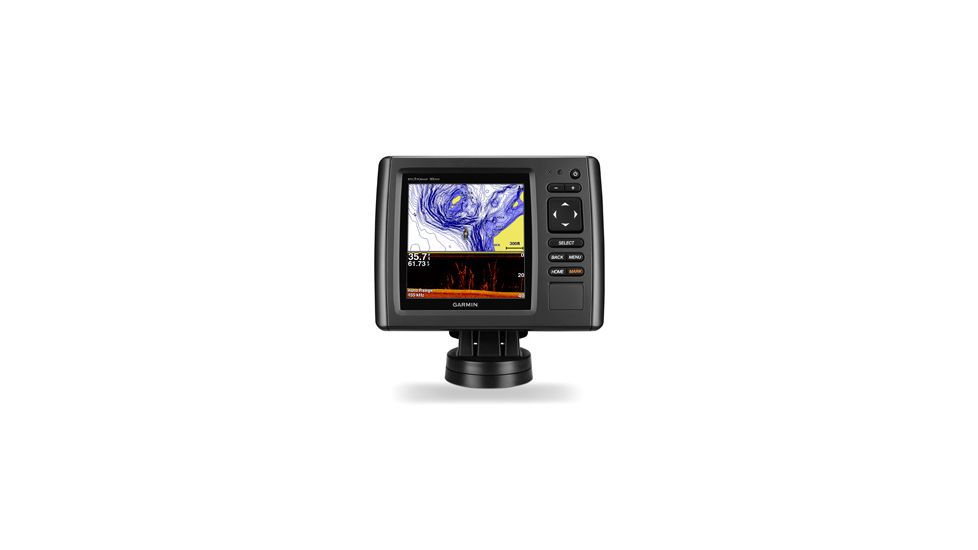

Name: Garmin echoMAP Sonar 55DV with Transducer
Brand: Garmin
SKU: GA-FH-010-01385-00
Availability: Discontinued

Product Info for Garmin echoMAP Sonar 55DV with Transducer

The perfect way to navigate the mysterious depths of Canadian lakes, the Garmin echoMAP Sonar 55DV with Transducer ensures that you are fully informed about anywhere you decide to boat or fish. Easy to install and even easier to use, this Sonar System from Garmin clips on to the quick release mount and locates your boat almost instantly using the 5 Hz Internap GPS. Offering both traditional HD-ID sonar and DownVu scanning sonar options, the Garmin echoMAP Freshwater Sonar 55DV with Transducer allows you to clearly see what is below your boat in real time, allowing you to easily find where all the fish are hiding. With sonar recording and data share between devices, you'll never forget where you found your big haul when you use the Garmin echoMAP Canadian Sonar 55DV with Transducer.

Specifications for Garmin echoMAP LakeVu Sonar 55DV with Transducer:

Dimensions:	6.8" x 5.4" x 1.7" (17.3 x 13.6 x 4.4 cm)
Weight:	1.3 lbs (0.6 kg)
Water Rating:	IPX7
Power Supply Range:	10V - 20V DC
Typical Power Consumption:	7.1 W
Digital Size (diagonal):	5.0"
Display Resolution:	480 x 480 square
Preloaded Maps:	Canada LakeVu HD
Internal 5 Hz GPS Receiver:	Y
Dual Frequency (50/200 kHz) capable:	Y
Dual Beam (77/200 kHz) capable:	Y
DownVu capable:	Y
SideVu capable:	N
Trasmit Power:	Y, 500 W (RMS) / 4,000 W (peak to peak)
Frequencies Supported (kHz):	Traditional - 50/77/200; DownVu - 260 or 455
Maximum Depth Capabilities:	Y, 2,300 ft. at 77 kHz, freshwater
Accepts MicroSD Card:	Y, for optional mapping and user data storage
NMEA 0183 Compatible:	Y, 1 input port/1 output port
AIS and DSC support:	Y, with NMEA 0183
User Data Sharing Cable Compatible:	Y
Sonar History Rewind:	Y
Sonar Recording:	Y
Bottom Lock:	Y
Water Temperature Log/Graph:	Y
Tide Tables:	Y
Mounting Options:	Bail/Flush
Gift Box Dimensions:	11.5" x 8.2" x 6.7" (291 x 209 x 170 mm)

Features of Garmin echoMAP Scanning Sonar 55DV with Transducer:

Easy to install and easy to use
Sunlight readable screen with auto-dimming display and backlit keypad
Preloaded Canada LakeVu HD
Built-in 500 W (RMS) traditional HD-ID sonar and DownVu scanning sonar capabilities that allows you to see up to 750 feet below your boat
Quick release mount allows for quick install and removal
5 Hz Internal GPS that updates 5x a second
Sonar recording can be saved and returned to on your home computer
Sonar history rewind
Ability to share user data between devices
Additional maps and charts available
