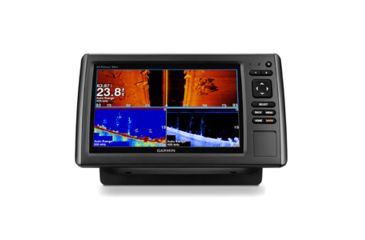

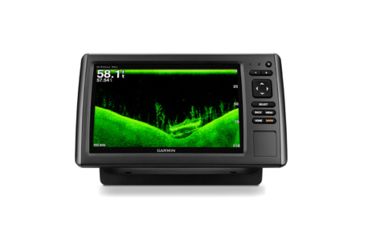

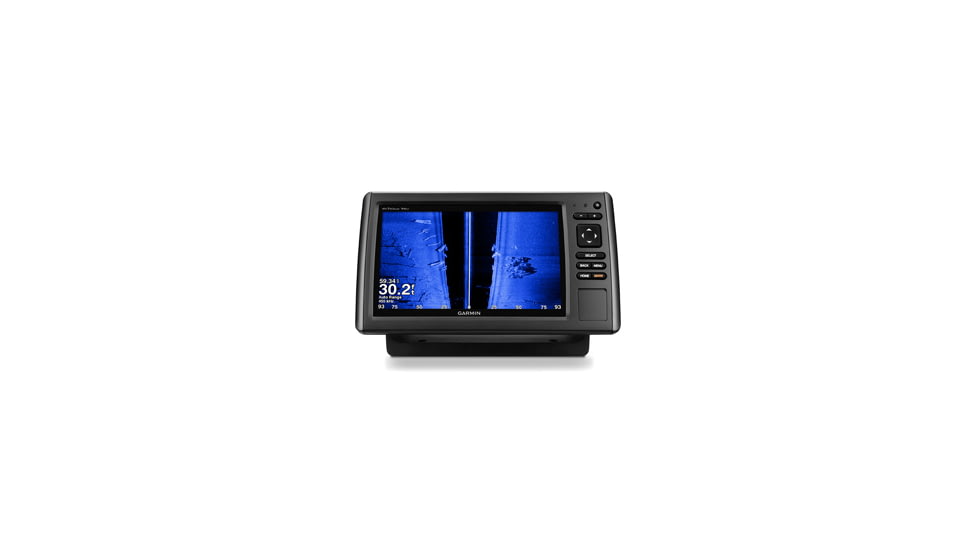

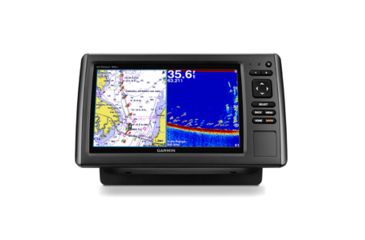

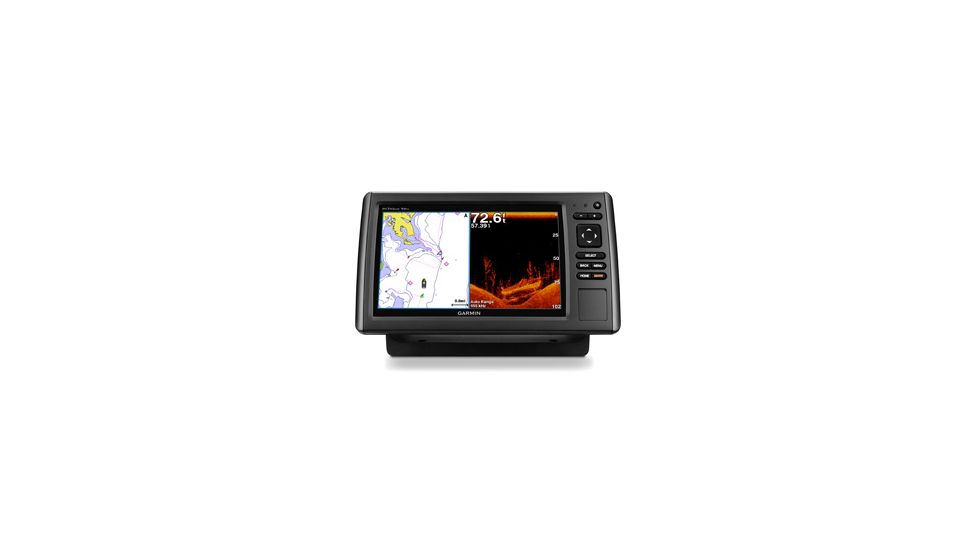

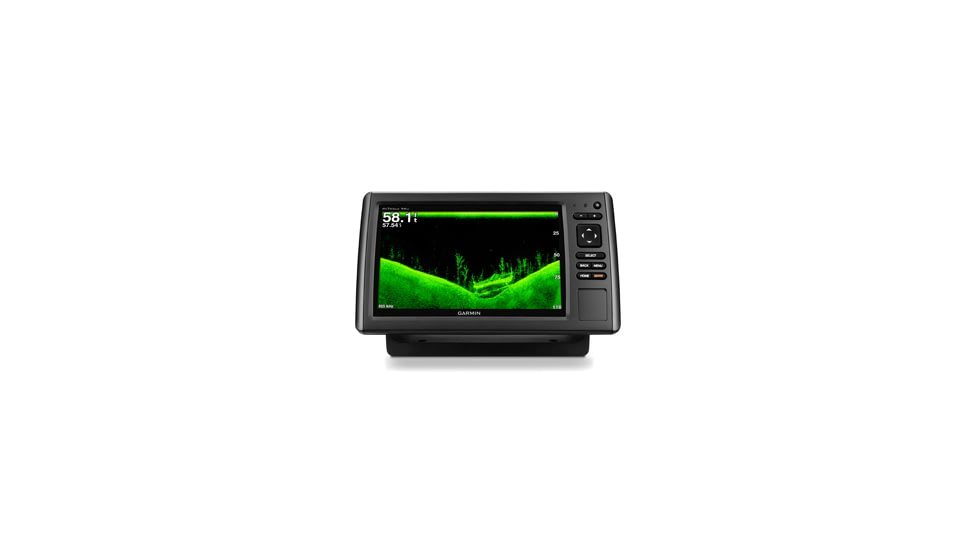

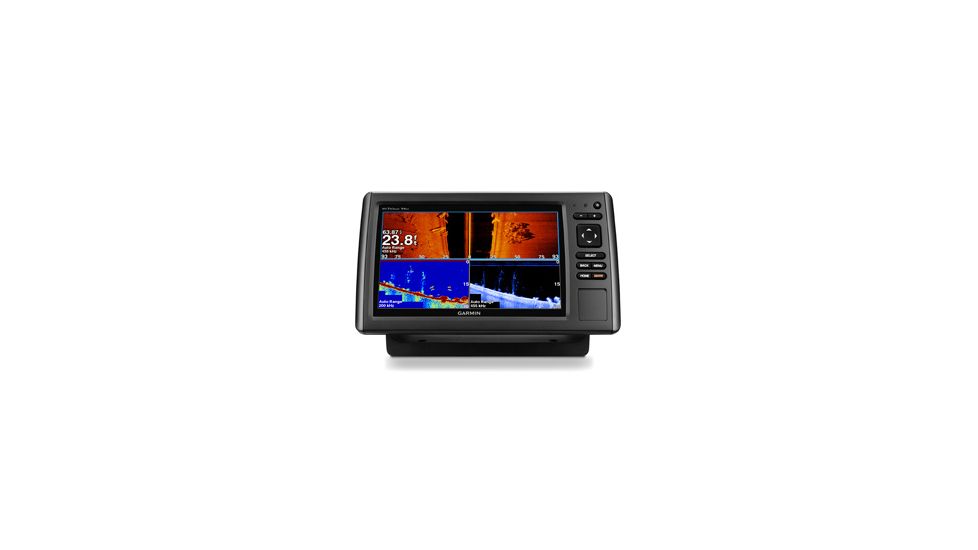

Product Info for Garmin echoMAP Sonar 94SV

Gain the best leverage on the fish below your boat when you take the Garmin echoMAP Sonar 94SV on your next fishing trip. Offering an all-around view of the mysterious water, this Sonar System from Garmin has traditional HD-ID sonar, as well as SideVu and DownVu for viewing the water beneath and alongside your boat. Incredibly easy to use and simple to install, the Garmin echoMAP Fishing Sonar 94SV offers built-in BlueChart g2 coastal maps, allowing you extensive information on tidal stations, currents, depth contours, and more. With the stellar 5 Hz internal GPS, your boat's position and heading is updated five times each second, ensuring that you have the best view of your boat and its surroundings with the Garmin echoMAP Boating Sonar 94SV.

Specifications for Garmin echoMAP GPS Sonar 94SV:

Physical dimensions:	11.3" x 6.4" x 2" (28.8cm x 16.3cm x 5.1cm)
Display size, WxH:	9.0" diagonal
Display resolution, WxH:	480 x 800 pixels
Display type:	WVGA display
Weight:	2.3 lbs. (1.0kg)
Water rating:	IPX7
Antenna:	Internal only
NMEA 0183 compatible:	Y
Power consumption:	11W
Mounting options:	Bail or flush
Garmin Marine Network ports:	N
Preloaded maps:	BlueChart g2 (coastal maps)
Accepts data cards:	1 microSD card
Waypoints:	3,000
Routes:	100
Track log:	20,000 points; 50 saved tracks
Garmin Sonar compatible:	Y
Supports AIS (tracks target ships position):	Y
Supports DSC (displays position data from DSC-capable VHF radio):	Y
Tide tables:	Y
BlueChart Mobile (planning) compatible:	N
Dual-frequency (50/200 kHz) sonar capable:	Y
Dual-beam (77/200 kHz) sonar capable:	Y
Transmit power:	500 W (RMS) / 4,000 W (peak to peak)
DownVu:	Y (built-in)
SideVu:	Y (built-in)
Maximum depth:	2,300 ft @ 77 kHz, freshwater; 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up):	Y
Water temperature log and graph:	Y
Sonar recording:	Y
Sonar history rewind:	Y
NMEA 0183 input ports:	1
NMEA 0183 output ports:	1
Video input ports:	N
Video output ports:	N
Wireless connectivity:	N

Features of Garmin echoMAP High Contrast Sonar 94SV:

High-contrast color display with keypad control with preloaded U.S. BlueChart g2 maps
Built-in DownVu and SideVu scanning sonar with the clearest images on the water
Built-in 500 W (RMS) HD-ID sonar (4,000 W peak-to-peak)
5 Hz Internal GPS updates position and heading 5 times per second
Tilting, quick-disconnect mount
Easy to use and easy to install
Sunlight readable, auto dimming display and backlit keypad
Sonar recording that saves digital information for playback on your computer
Sonar history rewind allows you to check your sonar history while on the water
Trolling motor transducer support
Share user data with other Garmin devices

Package Contents:

Garmin echoMAP Fishing Sonar 94SV
echoMAP 94sv with U.S. BlueChart g2
Power/data cable
Y-cable adapter (12-pin to double 4-pin)
Quick release mount
Flush mount
Protective cover
Transducer adapter cable (4-pin to 8-pin)
Hardware
Documentation
