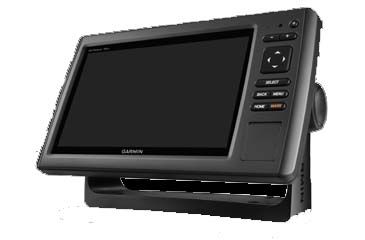

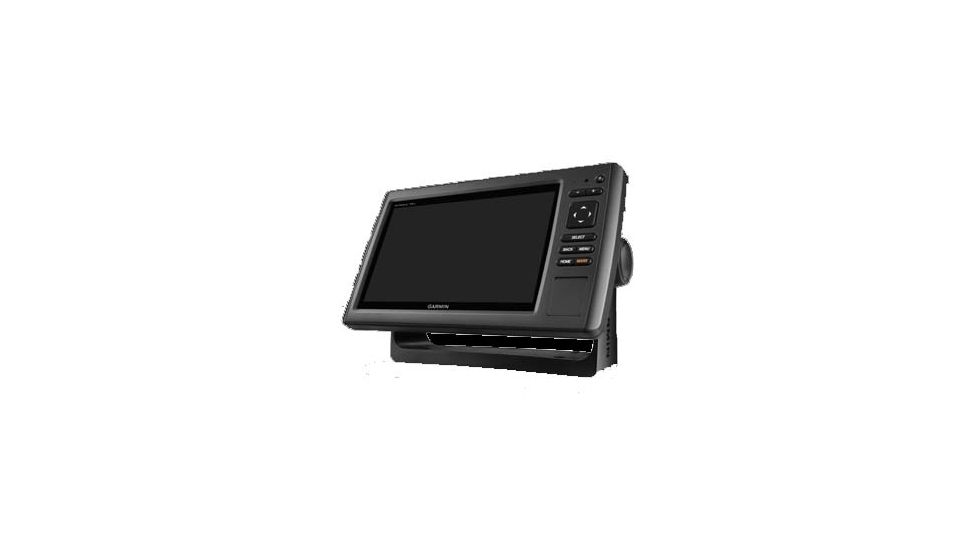

Garmin echoMAP Sonar 95SV with Transducer 010-01393-00
Tap Tap to Zoom
Code: GA-FH-010-1393-00
MPN: 010-01393-00
UPC: 753759126711
Product Info for Garmin echoMAP Sonar 95SV with Transducer
With a large, easy to view screen, the Garmin echoMAP Sonar 95SV with Transducer provides the clearest and most detailed scanning sonar picture in real time. Featuring a quick release mount that offers easy installation and removal, this Sonar System from Garmin is ready to go whenever you are, automatically uploading Canada LakeVu HD maps which give detailed coverage of more than 6,000 lakes, rivers, and reservoirs. The Garmin echoMAP Fishing Sonar 95SV without Transducer shows a full representation of the water around your boat, thanks to the traditional HD-ID sonar, the DownVu scanning sonar that shows what is beneath your boat, and the SideVu scanning sonar that shows what is around the sides of your boat. With a 5 Hz Internal GPS, the Garmin echoMAP Lake Sonar 95SV with Transducer updates your location and heading 5 times per second, providing the most fluid and accurate picture possible.
Specifications for Garmin echoMAP DownVu Sonar 95SV with Transducer:
| Dimensions: | 11.3" x 6.4" x 2.0" (28.8 x 16.3 x 5.1 cm) |
| Weight: | 2.3 lbs (1.0 kg) |
| Water Rating: | IPX7 |
| Power Supply Range: | 10V - 20V DC |
| Typical Power Consumption: | 11 W |
| Digital Size (diagonal): | 9.0" |
| Display Resolution: | 480 x 800 WVGA |
| Preloaded Maps: | Canada LakeVu HD |
| Internal 5 Hz GPS Receiver: | Y |
| Dual Frequency (50/200 kHz) capable: | Y |
| Dual Beam (77/200 kHz) capable: | Y |
| DownVu capable: | Y |
| SideVu capable: | Y |
| Trasmit Power: | Y, 500 W (RMS) / 4,000 W (peak to peak) |
| Frequencies Supported (kHz): | Traditional - 50/77/200; DownVu - 260 or 455; SideVu - 260 or 455 |
| Maximum Depth Capabilities: | Y, 2,300 ft. at 77 kHz, freshwater |
| Accepts MicroSD Card: | Y, for optional mapping and user data storage |
| NMEA 0183 Compatible: | Y, 1 input port/1 output port |
| AIS and DSC support: | Y, with NMEA 0183 |
| User Data Sharing Cable Compatible: | Y |
| Sonar History Rewind: | Y |
| Sonar Recording: | Y |
| Bottom Lock: | Y |
| Water Temperature Log/Graph: | Y |
| Tide Tables: | Y |
| Mounting Options: | Bail/Flush |
| Gift Box Dimensions: | 13.4" x 10.1" x 8.3" (341 x 257 x 211 mm) |
Features of Garmin echoMAP Boating Sonar 95SV with Transducer:
- Easy to install and easy to use
- Sunlight readable screen with auto-dimming display and backlit keypad
- Preloaded Canada LakeVu HD
- Built-in 500 W (RMS) traditional HD-ID sonar, DownVu, and SideVu scanning sonar capabilities that allows you to see up to 750 feet below your boat
- Quick release mount allows for quick install and removal
- 5 Hz Internal GPS that updates 5x a second
- Sonar recording can be saved and returned to on your home computer
- Sonar history rewind
- Ability to share user data between devices
- Additional maps and charts available
Package Contents:
- Garmin echoMAP Sonar 95SV with Transducer
- echoMAP 95sv with Canada LakeVu HD
- Power/data cable
- GT40-TM transducer (77/200kHz/DownVu/SideVu, 12-pin)
- Y-cable adapter (12-pin to double 4-pin)
- Quick-release mount
- Flush mount
- Protective cover
- Hardware
- Documentation
