Code: GA-F75-DFCOR-010-00705-80
MPN: 010-00705-80
UPC: 753759132347
Product Info for Garmin GHP Reactor Steer-by-wire Corepack
Get the perfect autopilot system for your boat's steering system when you buy a Garmin GHP Reactor Steer-by-wire Corepack. Ideal for a variety of vessels, this AutoPilot System from Garmin installs easily and calibrates quickly for your boat. The solid state 9-axis AHRS reacts to the sea and holds course, improving your control over your boat when you engage the Garmin GHP Reactor Steer-by-wire Pack. This autopilot system minimizes heading error, course deviation, rudder movement, and power consumption, ensuring that your course is effortless with the Garmin GHP Reactor Steer-by-wire AutoPilot Corepack. The Shadow Drive technology gives you the security of knowing you're still in control of your boat, even when the autopilot is engaged, so you feel your best while using the Garmin GHP Reactor Steer-by-wire Boating Corepack.
Specifications for Garmin GHP Reactor Steer-by-wire Automated Corepack:
| Physical dimensions: | 6.7" x 3.5" x 2.0" (170mm x 90mm x 50mm) |
| Weight: | 7.1 oz (200 g) |
| Water rating: | IPX7 |
| NMEA 2000 Load Equivalency Number (LEN): | 4 |
| Compass safe distance: | 11.8" (300mm) |
| Temperature range: | From -40°F to 185°F (from -40° to 85°C) |
Features of Garmin GHP Reactor Steer-by-wire Steering Corepack:
- Contains sensory equipment used to determine heading and rate of turn
- Connect the CCU to the NMEA 2000 network, easily sharing any information between devices
- Brain of the GHP autopilot system
- Solid state 9-axis AHRS reacts to the sea to hold course, even when the boat is pitching and rolling
- Minimizes heading error, course deviation, rudder movement, and power consumption
- Easy installation anywhere and in any orientation
- Offers route following, route engage, and Autopilot Virtual Device capabilities
- Complete package for many vessel types and steering systems including hydraulically steered systems, steer-by-wire, solenoid-driven and cable-actuated systems, linear actuated sailboats, and more
- Auto Guidance path option
- Minimal commissioning and calibration can be done in under five minutes
- Shadow Drive technology allows you to maintain control even when autopilot is engaged
Package Contents:
- Garmin GHP Reactor Steer-by-wire Set
- GHP Reactor CCU
- GHC 20 helm control display
- CCU cable
- Buzzer
- NMEA 2000 drop cables (2 m)
- NMEA 2000 power cable
- NMEA 2000 T-connectors
- Male and female terminators
- Documentation
Related Products to Garmin GHP Reactor Steer-by-wire Corepack
Garmin GHP Reactor Steer-by-wire Corepack Unavailable & Discontinued Models
List of Unorderable Models

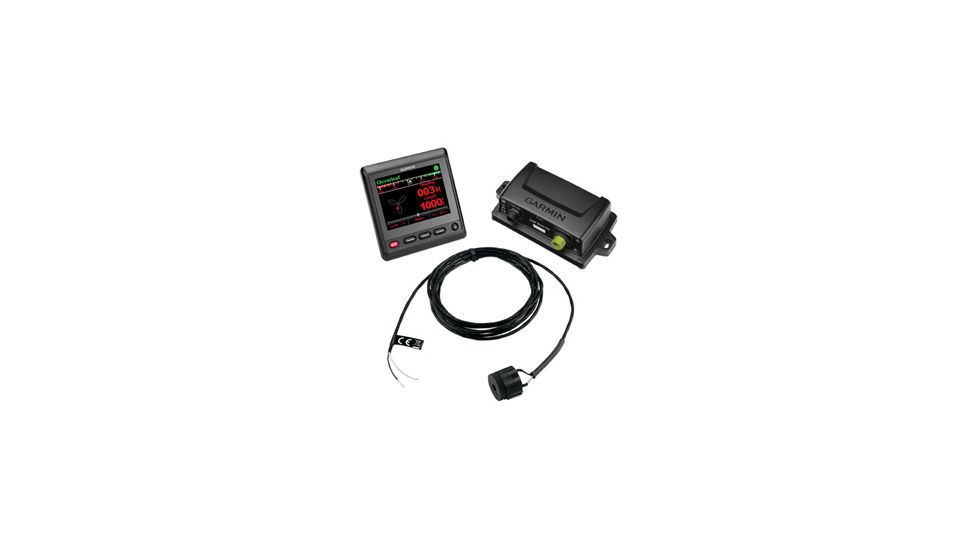

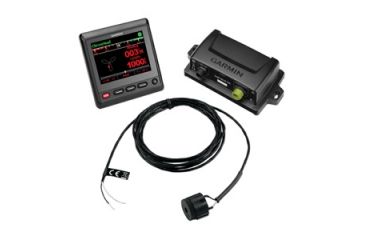

- Garmin GHP Reactor Steer-by-wire Standard Corepack 010-00705-80 , MPN: 010-00705-80 , UPC: 753759132347 , Code: GA-F75-DFCOR-010-00705-80

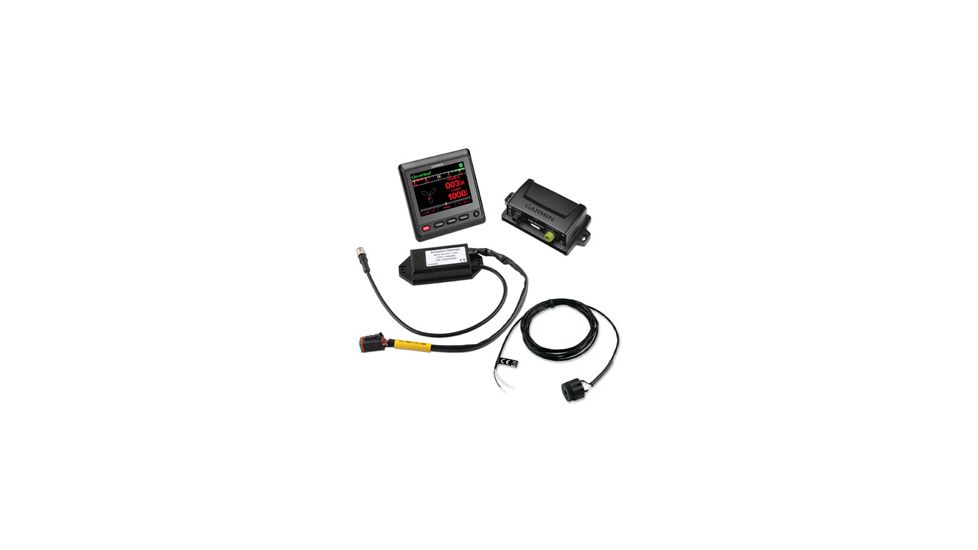

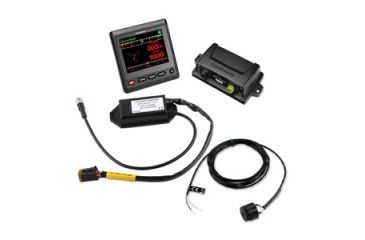

- Garmin GHP Reactor Steer-by-wire Corepack for Yamaha Helm Master 010-00705-81 , MPN: 010-00705-81 , UPC: 753759132354 , Code: GA-F75-DFCOR-010-00705-81

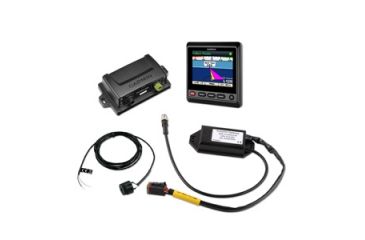

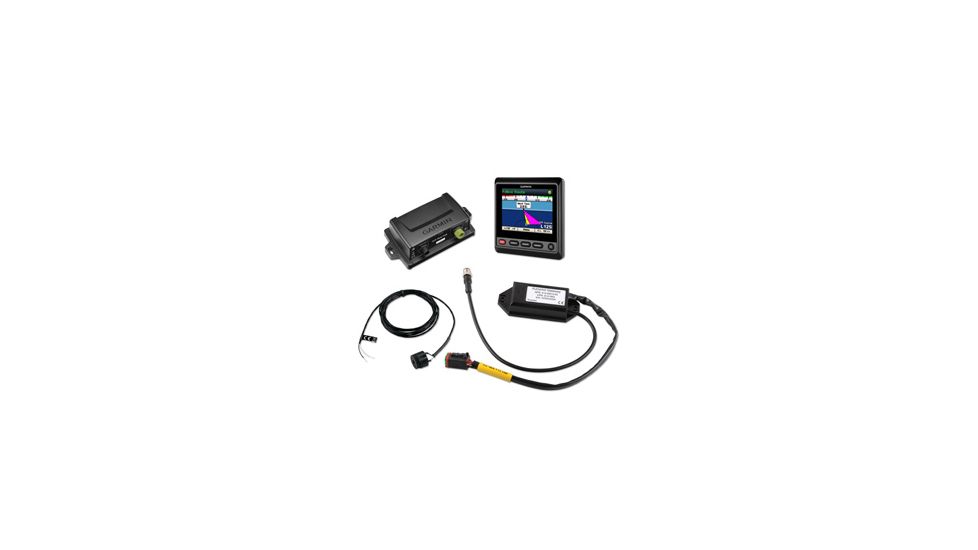

- Garmin GHP Reactor Steer-by-wire Corepack for Volvo-Penta 010-00705-85 , MPN: 010-00705-85 , UPC: 753759132378 , Code: GA-F75-DFCOR-010-00705-85

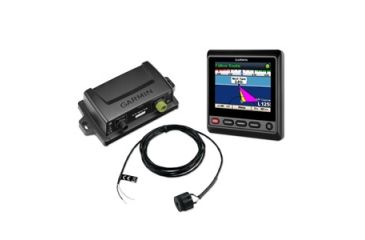

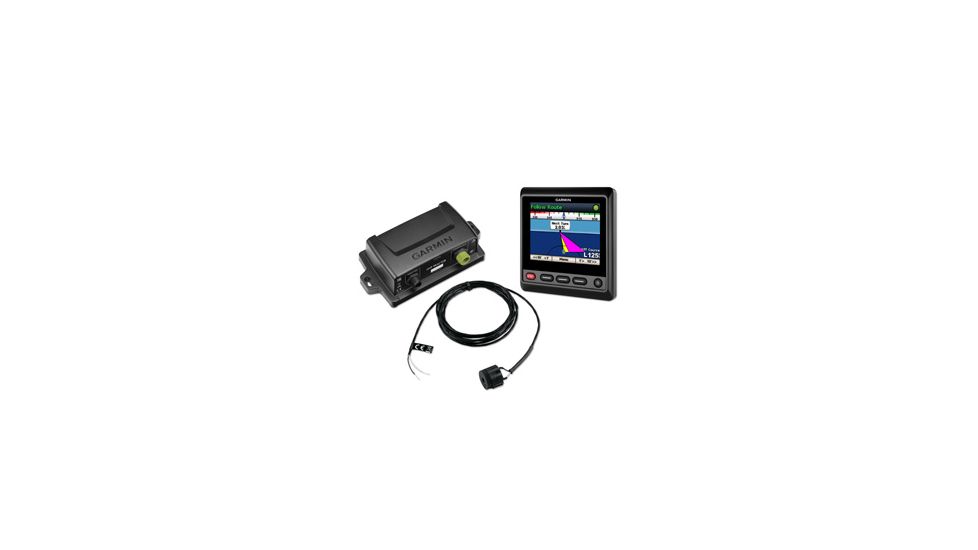

- Garmin GHP Reactor Steer-by-wire Corepack for Viking VIPER 010-00705-82 , MPN: 010-00705-82 , UPC: 753759132361 , Code: GA-F75-DFCOR-010-00705-82
