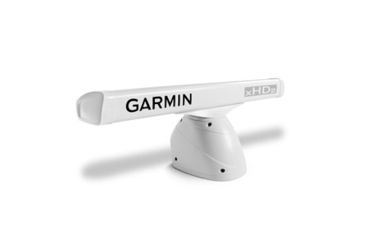

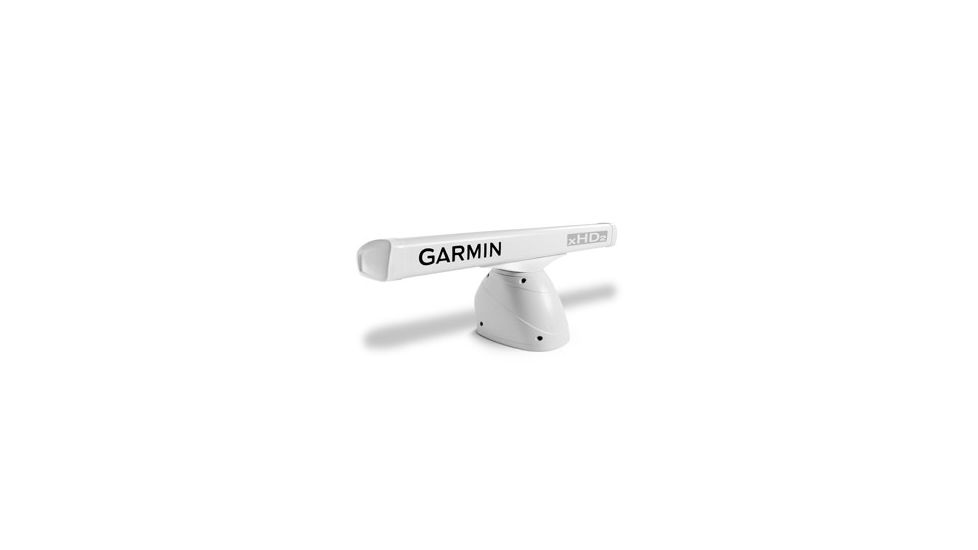

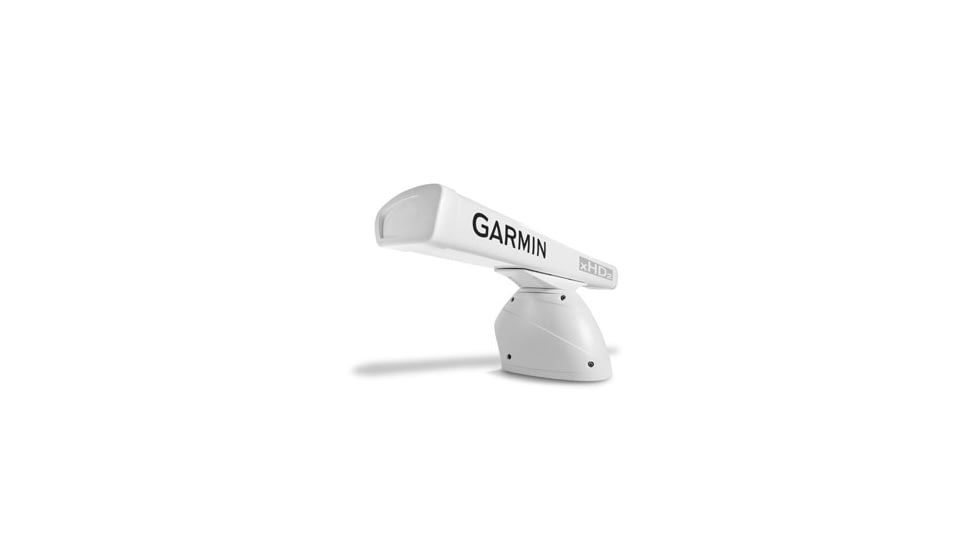

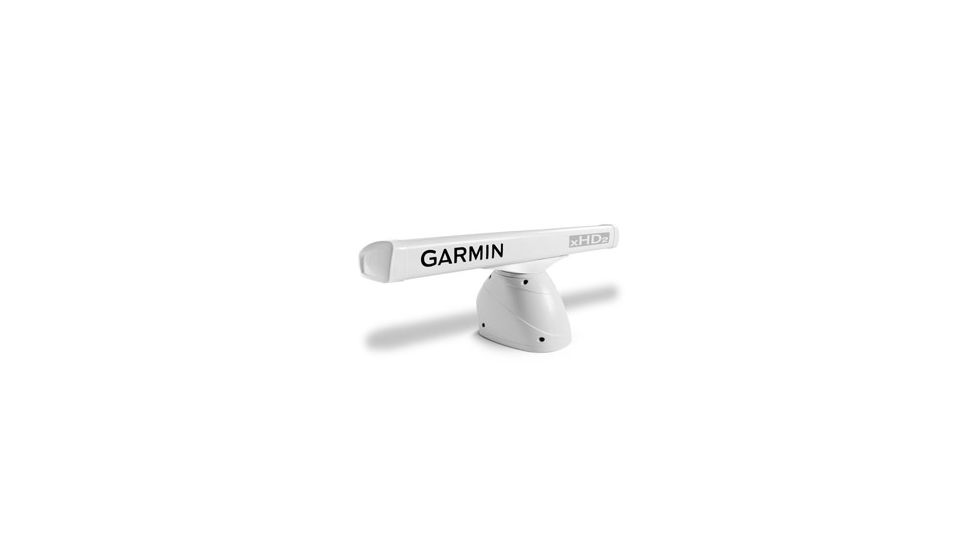

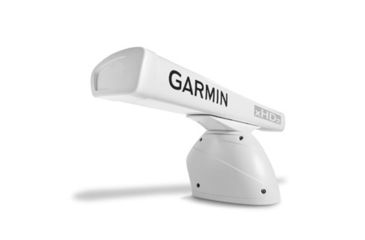

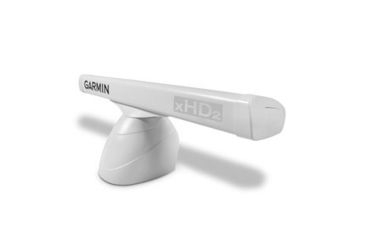

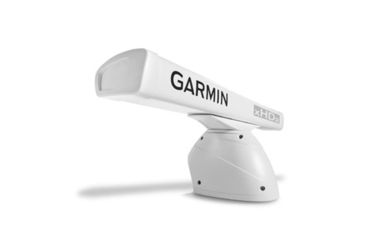

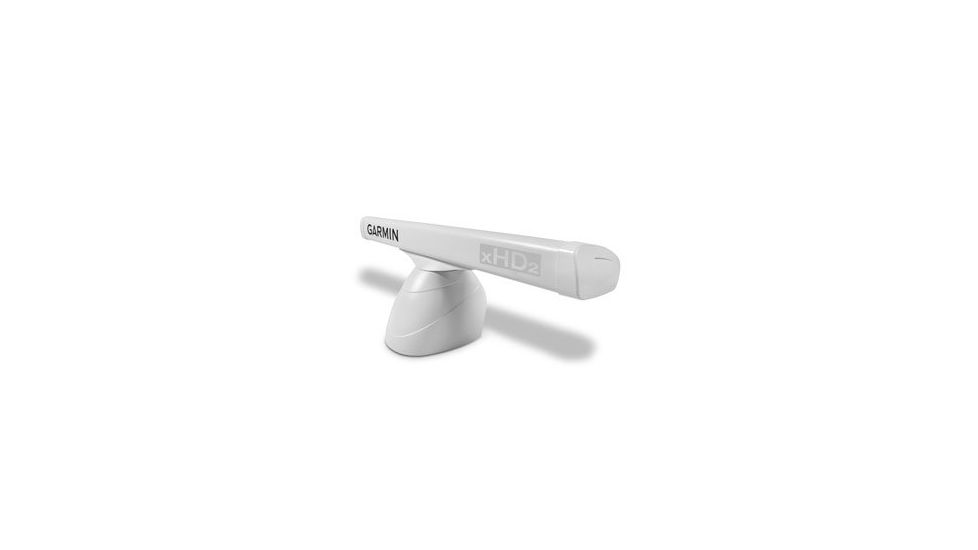

Garmin GMR xHD/xHD2, Top Assy, Pedestal

4-foot Open Array Radar

High-definition radar with 4-foot open array

High sensitivity with 1.8 degree horizontal beamwidth for consistent target positions, excellent target separation and reliable operation

Dual range radar with dual radar support

No complex user settings; easy to install and start using

Quiet rotation and reliable operation

High-power xHD2 Radar with Narrow 1.8 Degree Beam

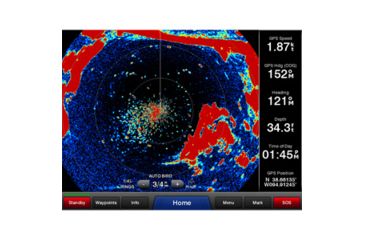

Its narrow 1.8 degree horizontal beamwidth picks out targets well off in the distance. It paints a clear image of the shoreline, other vessels, and impending weather on your Garmin chartplotter. You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true color imagery also helps you discriminate large targets from small ones and enhances target separation. Rotation speeds of 24 and 48 rpm with a max range scale of 72 nautical miles.

The Power of SimpleRadar

This radar is designed to be easy to install and use. There are no complex user settings to fuss around with, just install it and start using. You can rely on the GMR xHD2 to provide reliable, optimum performance in all conditions.

Vertical Range Scaling

Fits the selected radar range to the vertical size of your display to show more forward looking radar returns on screen and make it easier to interpret target distances.

Dual Range with Overlay

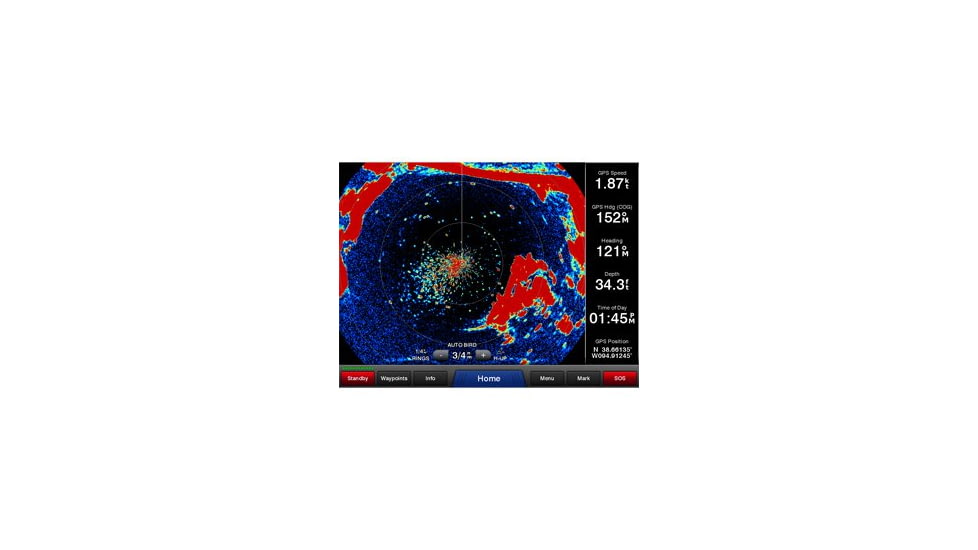

Single radar antenna is capable of providing split screen images on your chartplotter side-by-side, with independent range setting and controls for both close and long range. One or both ranges can also be viewed as a chart overlay.

Features of Garmin GMR xHD/xHD2, Top Assy, Pedestal

• General
• Physical dimensions: 4' array: 52.25" x 5" x 6.75" (132.7 x 12.7 x 17.1 cm), Pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm)
• Weight: array: 12.2 lb (5.5 kg), pedestal: 47.1 lb (21.4 kg)
• Water rating:IPX6
• Power consumption: 55 W typical for 424-426, 90W typical for 1224-1226
• Antenna length: 48" (121.92 cm)
• Rotation speed (RPM): 24 and 48 rpm
• Transmit power: 4 kW for 424-426, 12W typical for 1224-1226
• Power input: 10-32 V
• Beam width: 1.8 horizontal, 23 vertical
• Maximum range: 72 nm
• Minimum range: 20 meters
• Radar type: Open-Array
• Additional
• Bird Mode: Yes

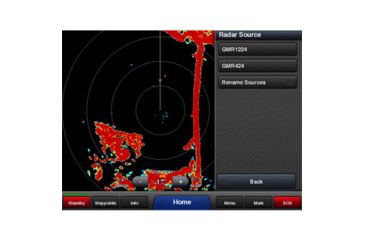

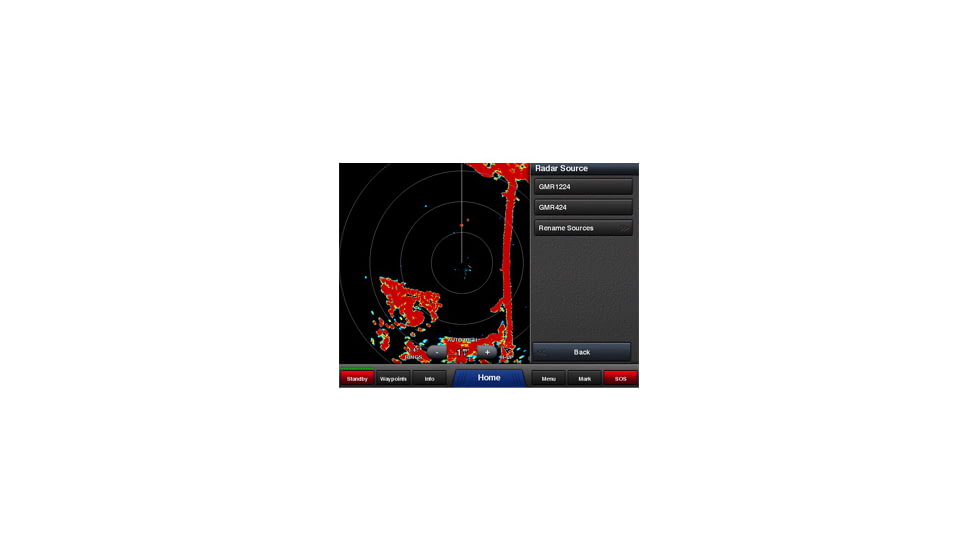

• Dual Radar Support: Yes

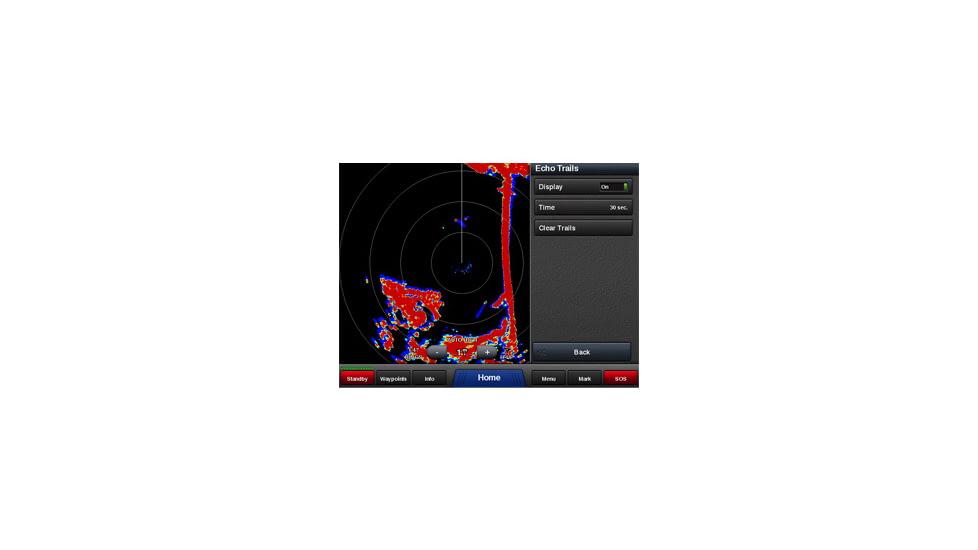

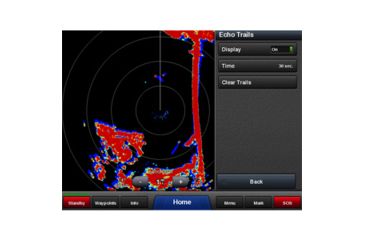

• Echo Trails: Yes
• Programmable Antenna Parking Position: Yes
• Max Wind Speed: 80 kt

Package Contents:

• Garmin GMR xHD/xHD2, Top Assy, Pedestal
• GMR xHD2
• Mounting hardware kit and template
• Power cable (15 meters)
• Network cable (15 meters)
• Cable grommet
• Documentation
