Garmin GNX Wireless Sail Pack 52 010-01616-20

The Information You Need to Make Confident Decisions

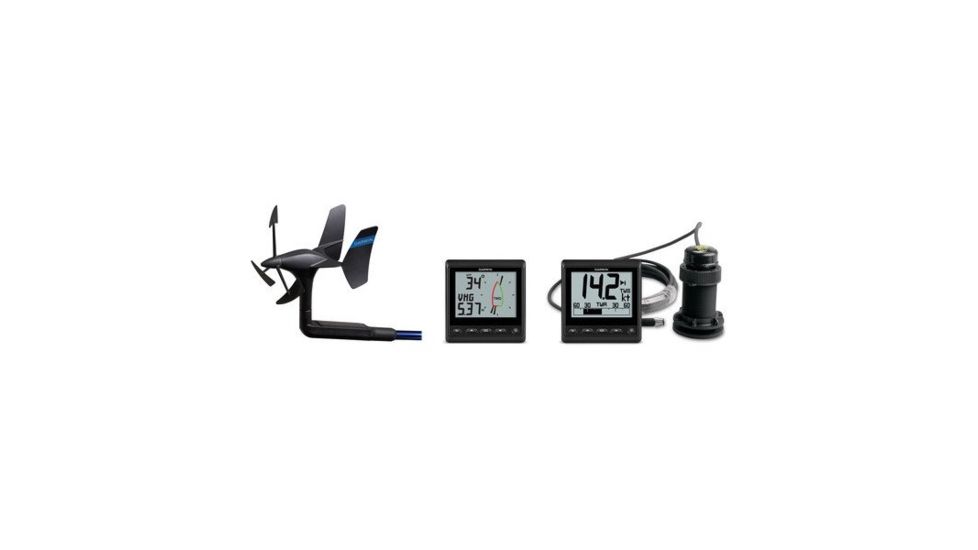

Includes Garmin GNX Wind and GNX 20 marine instruments, gWind Wireless 2 transducer and DST800 thru-hull smart transducer

GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays

gWind Wireless 2 transducer eliminates running wires through masts up to 50 feet

DST800 transducer provides water depth, water speed and water temperature data

Easy plug-and-play installation with NMEA 2000 network

With a GNX Wireless Sail Pack, you will have all the equipment you need to know whats going on with the wind and the water.

gWind Wireless 2 Transducer

gWind Wireless 2 offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent via an ANT connection directly to a GNX Wind instrument or to a compatible Garmin GPSMAP chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions.

GNX 20 Marine Instrument

The easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles: single, dual and triple function plus gauge and graph mode to display wind, depth and speed data, or customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night.

DST800 Thru-hull Smart Transducer

DST800 provides water depth, water speed and water temperature data to the NMEA 2000 network. This 100 W transducer can read depths up to 330 feet.

Features of Garmin GNX Wireless Sail Pack 52

• gWind Wireless 2 Transducer
• Unit Dimension, WxH: 13.6" x 24" (345 mm x 610 mm)
• Weight: 350 g
• Waterproof: Yes (IPX6)
• Temp Range: From 5F to 158F (-15C to 70C)
• Storage Temperature: From -4F to 176F (-20C to 80C)
• Power Usage: Battery (rechargeable though the solar panel)
• Accuracy Angle: Better than 1.5
• Speed: Better than 3%
• Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
• Wireless Connectivity: Yes
• GNX Wind instrument:
• Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30 mm)
• Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60 mm; 101.6 mm diagonal)
• Weight: 8 oz (230 g)
• Water rating: IPX7
• NMEA 2000 certified: Yes
• Power consumption: 0.35 W (day); 0.4 W (night)
• Voltage range: 9-16 V (from NMEA 2000)
• Mounting options: Flush or Flat
• Temperature range: From 5 to 158 degrees F (from -15 to 70 degrees C)
• Compass-safe distance: 8.25" (209 mm)
• GNX 20 instrument:
• Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30 mm)
• Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60 mm; 101.6 mm diagonal)
• Weight: 8.0oz (230g)
• Water rating: IPX7
• NMEA 2000 certified: Yes
• Power consumption: 0.35 W (day); 0.4 W (night)
• Voltage range: 9-16 V (from NMEA 2000)
• Mounting options: Flush or Flat
• Temperature range: From 5 to 158 degrees F (from -15 to 70 degrees C)
• Compass-safe distance: 8.25" (209 mm)

Package Contents:

• Garmin GNX Wireless Sail Pack 52
• gWind Wireless 2 transducer with mast bracket
• GNX Wind
• GNX 20
• DST800 thru-hull smart transducer
• NMEA 2000 power cable
• NMEA 2000 terminators
• 2 NMEA 2000 drop cable (2 m)
• 4 NMEA 2000 T-connector
• Mounting hardware
• NiMH battery
• Documentation
