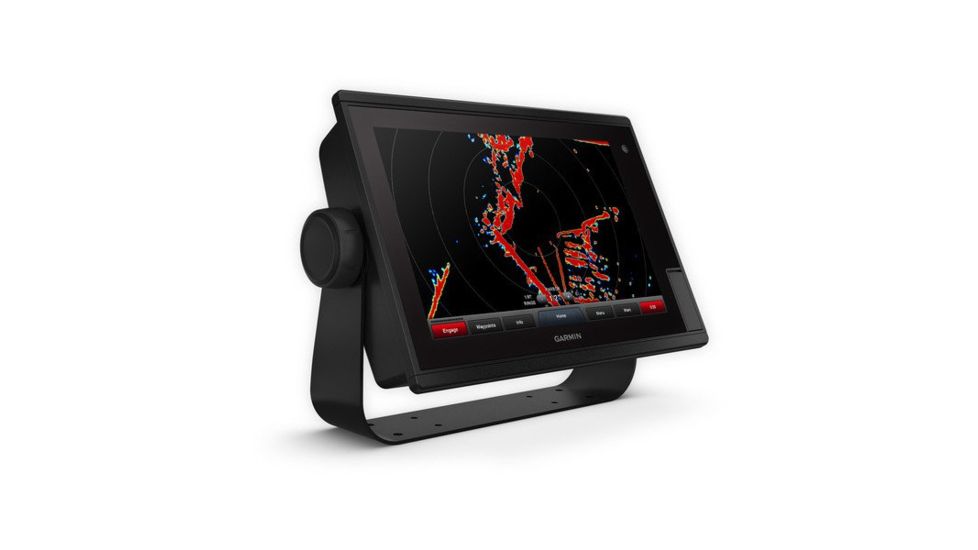

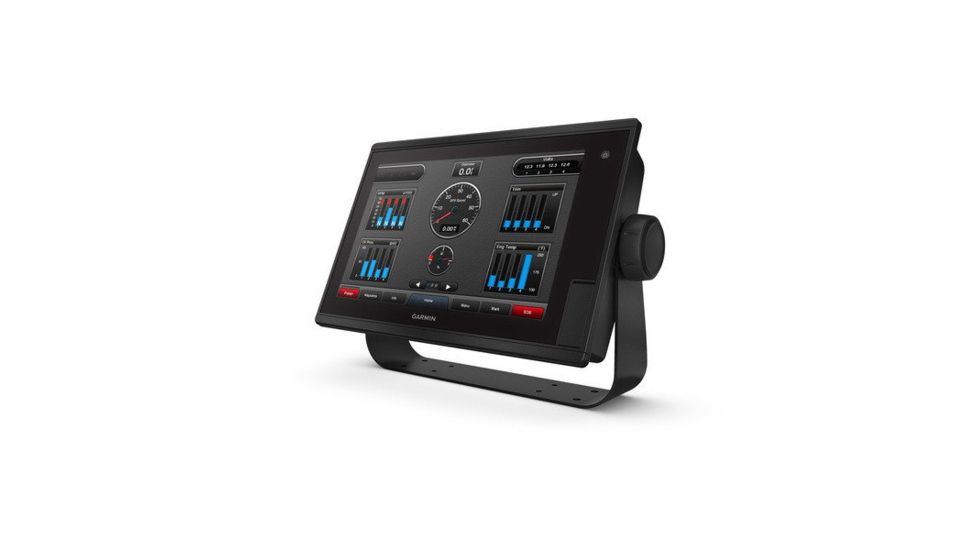

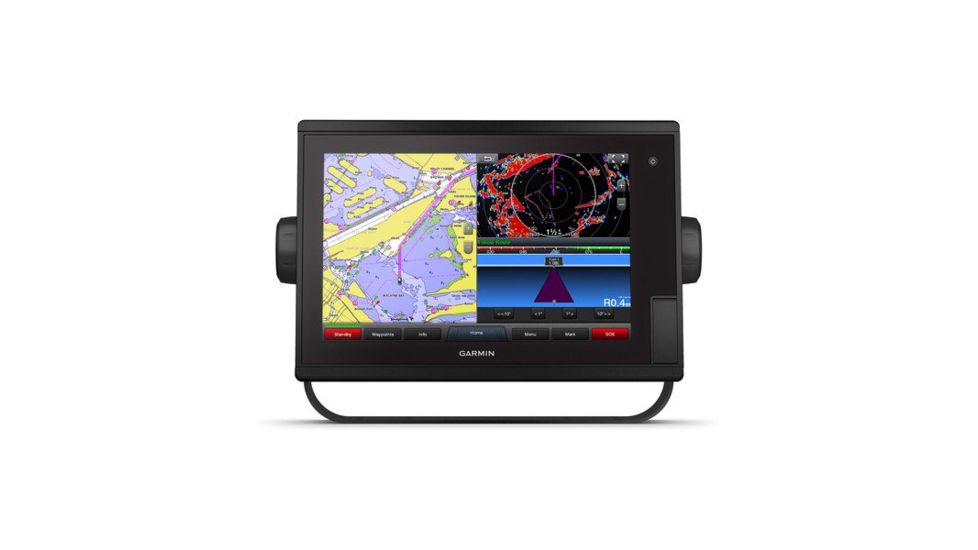

Garmin GPSMAP 1222 Touch 010-01917-10

12 Touchscreen Fully Network Capable Chartplotter

Fully network capable to build your marine system

Network sharing allows you to share data among all compatible units connected to the network

Supports optional sonar modules, including Panoptix all-seeing sonar

Add free all-in-one ActiveCaptain app to manage your marine experience from nearly anywhere

Supports optional BlueChart g3 Vision premium charts

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a prerace guidance page. It shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

Heading and Position Refreshed 10 Times Per Second

The fast, responsive 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. Now, its quick and easy to drop up to 5,000 accurate waypoints and find your way back to them.

Features of Garmin GPSMAP 1222 Touch

• General
• Physical dimensions:13 x 8.9 x 3.1 (33.0 x 22.6 x 7.9 cm)
• Display size:10.3" x 6.4" (26.2 x 16.3 mm)
• Display resolution:1280 x 800 pixels
• Display type:WXGA display
• Weight:5.8 lbs. (2.63 kg)
• Water rating:IPX7
• Power consumption:Max power usage at 10 Vdc: 36.5 W
• Typical current draw at 12 Vdc: 2.4 A
• Max current draw at 12 Vdc: 3.0 A
• Antenna:Internal or external over NMEA 2000
• Mounting options:Bail or flush
• Receiver:10 Hz high-sensitivity
• Garmin Marine Network ports:2
• Maps & Memory
• Preloaded maps:None
• Accepts data cards:2 SD cards
• Waypoints:5,000
• Routes:100
• Track log:50,000 points; 50 saved tracks

Package Contents:

• Garmin GPSMAP 1222 Touch
• GPSMAP 1222 Touch chartplotter
• Power/data cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 meters)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
