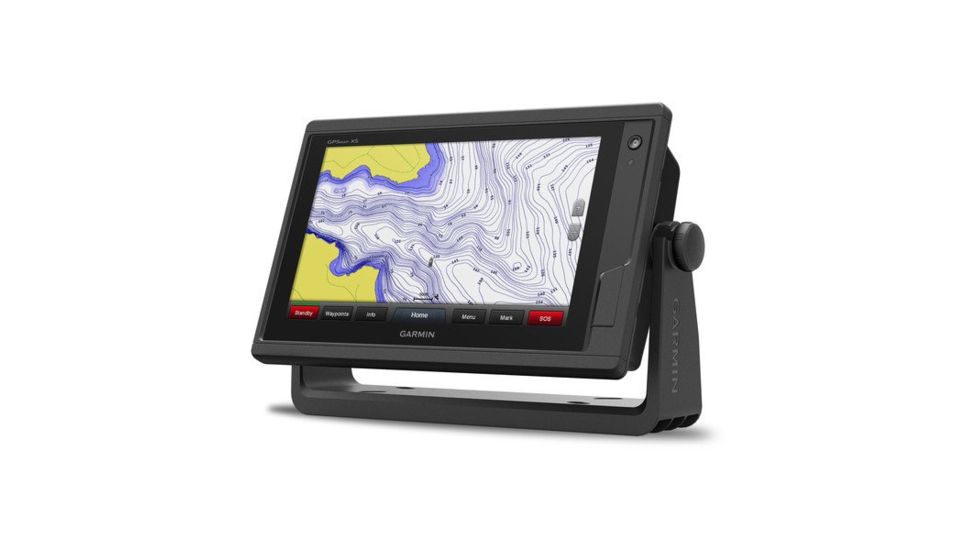

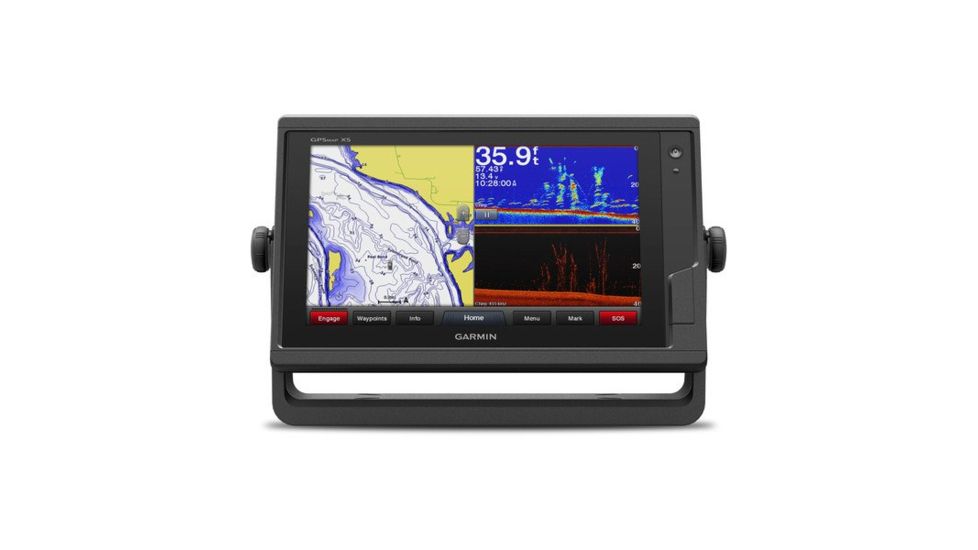

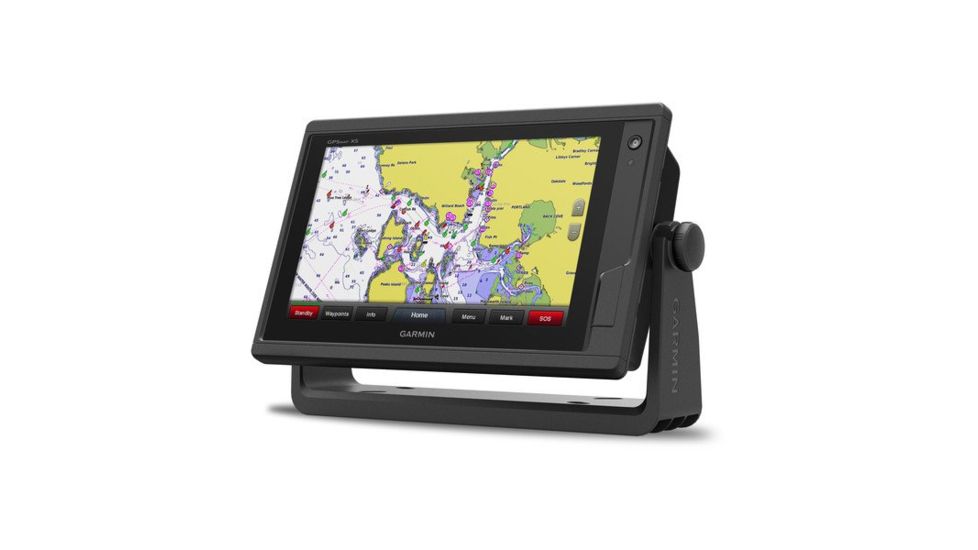

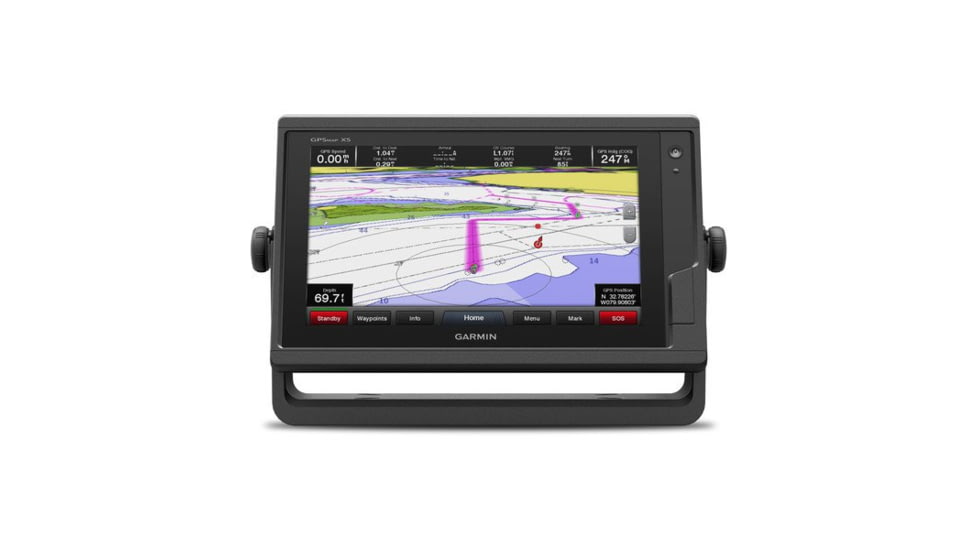

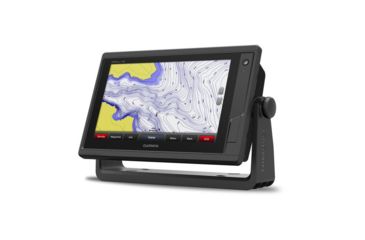

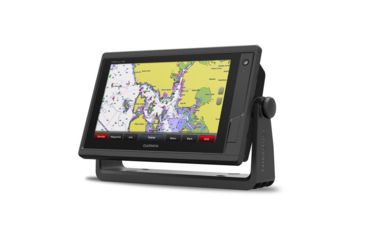

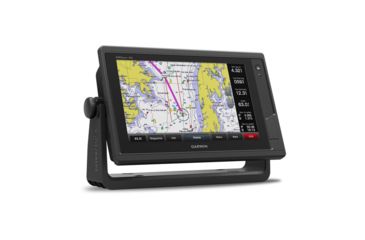

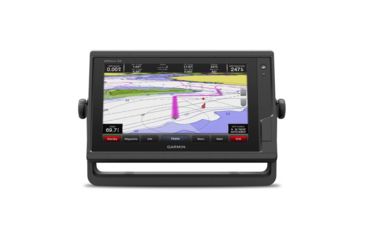

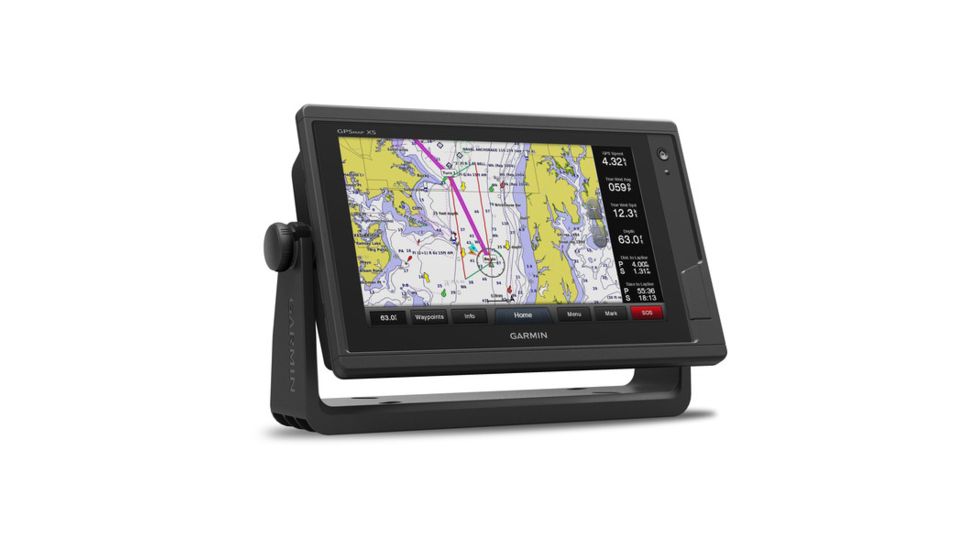

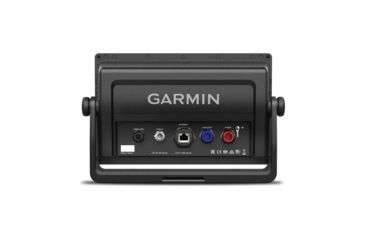

Garmin GPSMap 942 XS, US+Canada+Bahamas g2, Lakevu HD 010-01739-03

Touchscreen Chartplotter/Sonar Combo

High-resolution intuitive touchscreen controls

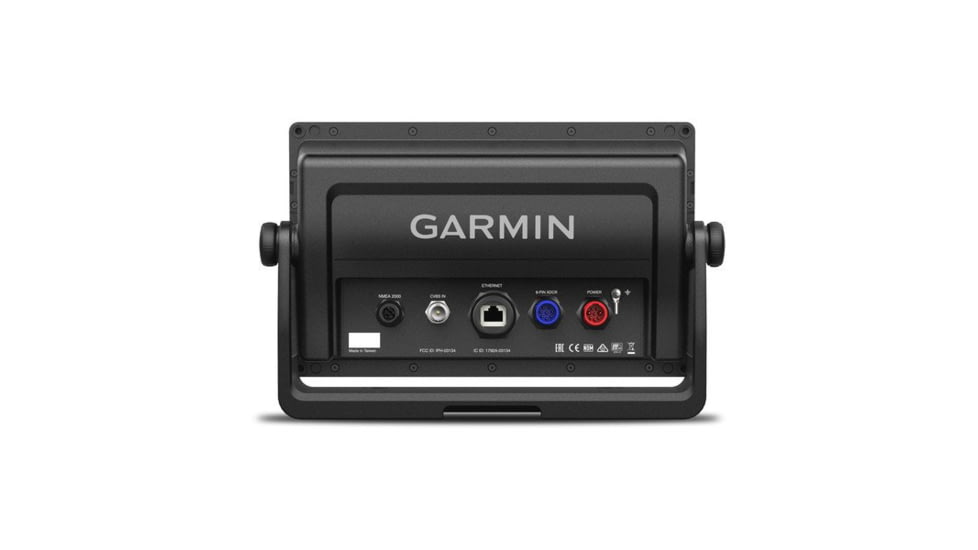

NMEA 2000 and NMEA 0183 support for network connectivity, including autopilots, digital switching, weather, FUSION-Link, VHF, AIS and more

Garmin Marine Network support for sharing sonar, including Panoptix sonar, maps, user data, radar and IP cameras among multiple units

Preloaded U.S. LakeVu g3 maps and BlueChart g3 charts

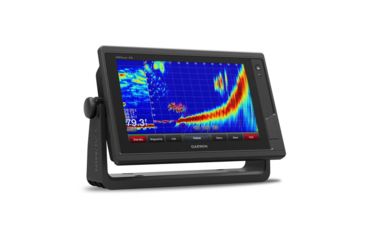

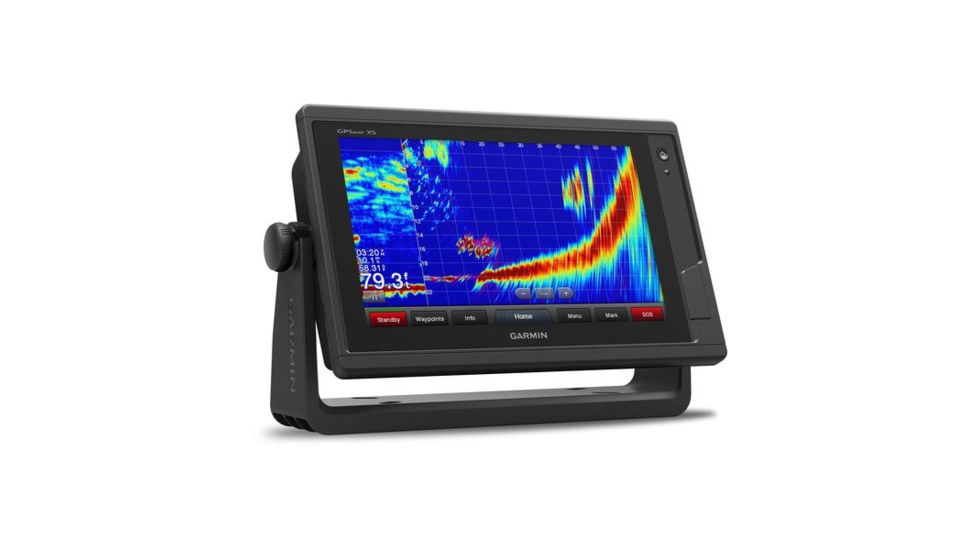

Experience an advanced navigation solution with this compact GPSMAP touchscreen combo. Includes wireless connectivity features for mobile apps, NMEA 2000 support and Garmin Marine Network capabilities for radar and Panoptix all-seeing sonar, including Panoptix FrontVu collision avoidance sonar. It also has built-in Garmin CHIRP and CHIRP ClearVu sonar (transducer sold separately).

Features of Garmin GPSMap 942 XS, US+Canada+Bahamas g2, Lakevu HD

• General
• Physical dimensions:10.1" x 6.4" x 2.1" (25.6 x 16.2 x 5.2 cm)
• Display size:7.7" x 4.5" (19.6 x 11.4 cm)
• Display resolution:1024 x 600 pixels
• Display type:Multi-touch touchscreen WSVGA display
• Weight:2.52 lbs
• Water rating:IPX7
• Power consumption:Max power usage at 10 Vdc: 27 WTypical current draw at 12 Vdc: 1.3 AMax current draw at 12 Vdc: 2.3 A
• Antenna:Internal or external over NMEA 2000
• Mounting options:Bail or flush
• Receiver:10 Hz high-sensitivity
• Garmin Marine Network ports:1
• Maps & Memory
• Preloaded maps:BlueChart g2 (US and Western Canada coastal maps) and LakeV HD (inland maps)
• Accepts data cards:2 microSD cards
• Waypoints:5,000
• Routes:100
• Track log:50,000 points; 50 saved tracks

Package Contents:

• Garmin GPSMap 942 XS, US+Canada+Bahamas g2, Lakevu HD
• GPSMAP 942xs chartplotter
• Power cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
