Product Info for Garmin GRID 20

Sit Back and Take Controlimage

Provides intuitive, easy-to-use remote access and control of your entire Garmin marine system

360-degree, all-in-one joystick with a rotary knob and push-to-select button

Enables easy chartplotter menu/setting navigation and fine control, even in the worst conditions

4 favorite keys can be designated to restore your system to a previously saved configuration

Allows wired or wireless installation options

The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions. You can designate 4 favorite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, theres also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays or even into the arm of the captains chair.

Specifications for Garmin GRID 20:

Manufacturer: Garmin
Color: Black

Features of Garmin GRID 20

  • Dimensions (WHD):5.6 x 2.2 x 2.7 (14.1 x 5.6 x 6.8 cm)
  • Weight: 6.3 oz (179 g)
  • Temperature range: From 5 to 158F (from -15 to 70C)
  • Material: Fully gasketed, high-impact plastic
  • Water rating: IPX7
  • Compass-safe distance: 4.5 (114 mm)
  • Power input:
  • NMEA 2000
  • -or-
  • Wired power (with included power cable):
  • Input power: 9-32 V dc
  • Fuse: 1.0 Amp, Fast Blow
  • Maximum power usage at 9 V dc: 1.5 W
  • Typical current draw at 12 V dc: 40 mA
  • Maximum current draw at 12 V dc: 120 mA
  • -or-
  • 2x AA battery powered (not included)

Package Contents:

  • Garmin GRID 20
  • GRID 20
  • Mounting hardware
  • Power cable
  • Documentation

Garmin GRID 20 Orderable Models

List of Orderable Models

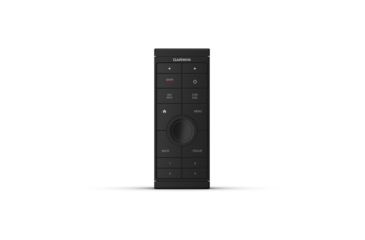

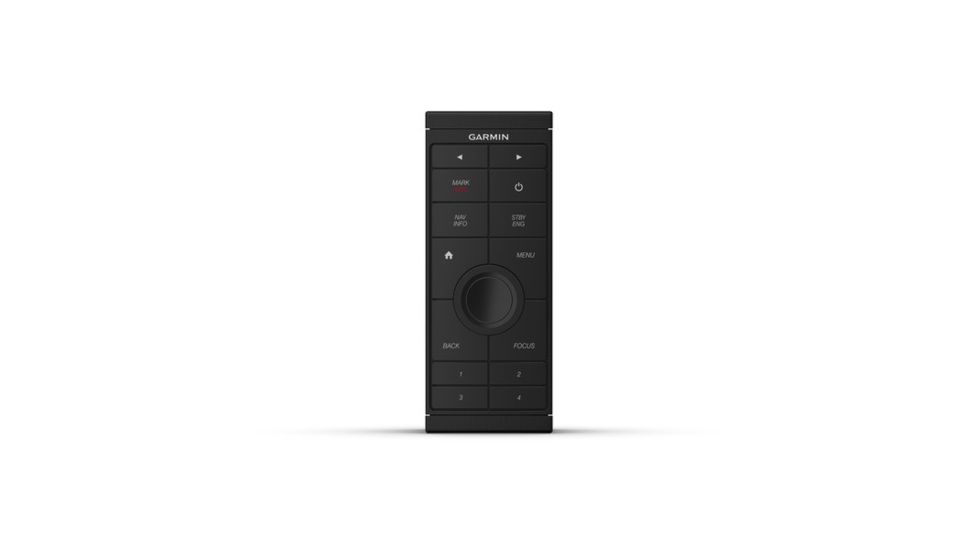

  • Garmin GRID 20, Vertical Portrait, 010-02011-00 , MPN: 010-02011-00 , UPC: 753759204945 , Code: GA-F75-GARGRID20-010-02011-00

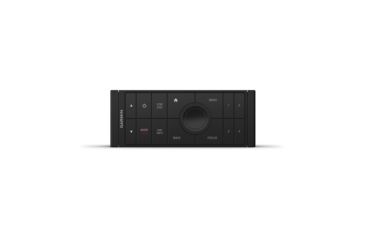

  • Garmin GRID 20, Horizontal Landscape, 010-02011-01 , MPN: 010-02011-01 , UPC: 753759204952 , Code: GA-F75-GARGRID20-010-02011-01
