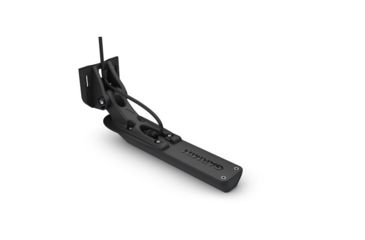

Garmin GT34UHD-TM, xdcr, 12pin, Ultra High Def CV/SV, Transom 010-12776-00 Color: Black, Additional Features: 12 pin, w/ Free Shipping

Ultra High-Definition Sonar System Transom Mount Transducer

Add stunningly clear Ultra High-Definition ClearVuu and Ultra High-Definition SideVuu scanning sonar images to your compatible chartplotter. Plug directly into your 8600xsv or ECHOMAP Ultra series chartplotter or use the GCV 20 sonar module to display on other compatible chartplotters. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

Ultra High-Definition ClearVuu Scanning

This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVuu Scanning

This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications for Garmin GT34UHD-TM, xdcr, 12pin, Ultra High Def CV/SV, Transom:

Features of Garmin GT34UHD-TM, xdcr, 12pin, Ultra High Def CV/SV, Transom

• General
• Frequency:Ultra High-Definition ClearVuu: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHzUltra High-Definition SideVuu: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
• Power:500 W
• Beamwidth:ClearVuu: 0.74x46 @ 800 kHzSideVuu: 0.441x55 @ 1200 kHz
• Maximum depth:200' Ultra High-Definition ClearVuu 125' to each side Ultra High-Definition SideVuu, 250' total, at a maximum depth of 30'
• Depth/Speed/Temperature:Depth and Temperature
• Number of pins:12-pin
• Cable length:20 ft.
• Supported deadrise/Transom angles:0-70 degree transom

Package Contents:

• Garmin GT34UHD-TM, xdcr, 12pin, Ultra High Def CV/SV, Transom
