Garmin gWind Race Transducer 010-01228-00
1 of 1 images
Garmin gWind Race Transducer 010-01228-00
Tap Tap to Zoom
Questions & Answers
Code: GA-XA-010-01228-00
MPN: 010-01228-00
UPC: 753759112233
Product Info for Garmin gWind Race Transducer

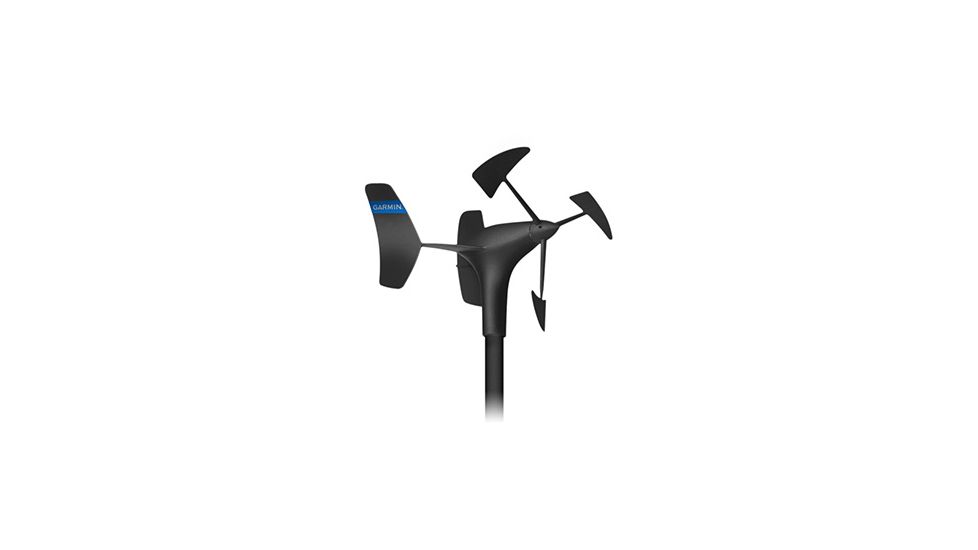

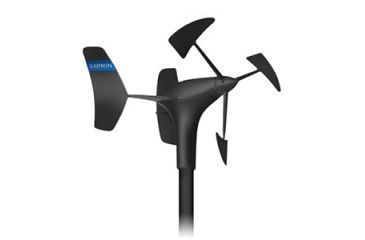

Race on with the Garmin gWind Racing Sailboat Transducer to keep track of accurate wind speed readings for guidance in safer sailing. This wind transducer created by the specialists at Garmin features a 3.3 feet (1 meter) straight pole to raise the transducer above the mast to remove turbulence errors. The Garmin gWind Race Transducer w/ Three-Bladed Propeller comes with twin-fin technology and a 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The Garmin gWind Race Transducer is very efficient and provides excellent linearity.
Specifications for Garmin gWind Race Transducer:
| Unit Dimension, H: | 1.18 m |
| Weight: | 320 g |
| Cable Length: | 25 m |
| Waterproof: | Yes (IPX6) |
| Temp Range: | From 5°F to 158°F (-15°C to 70°C) |
| Storage Temperature: | From -4°F to 176°F (-20°C to 80°C) |
| Voltage Range: | 9-16V |
| Power Usage: | 0.33W |
| Typical Current Draw at 12 VDC: | 28 mA |
| Compass Safe Distance: | N/A |
| Accuracy Angle: | Better than ±1.5° |
| Speed: | Better than ±3% |
| Wind Speed Range: | 0. 8-90 knots (0. 4-50 m/s) |
| NMEA 2000 Load Equivalency Number (LEN): | N/A |
| Wireless Connectivity: | No |
Features of Garmin gWind Racing Sailboat Transducer:
- Designed for racing sailboats
- 3.3 feet (1 meter) straight pole raises the wind transducer above the mast to remove turbulence errors from the sail wash
- Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air twin-fin design gives a more stable True Wind Angle (TWA)
- Optic reading technique provides superior performance at low wind speeds and excellent linearity
- GND 10 black box bridges NMEA 2000 data to Nexus Network and enables Garmin compatible chartplotters integrate with Nexus sail equipment and vice versa
Package Contents:
- Garmin gWind Race Transducer w/ Three-Bladed Propeller
