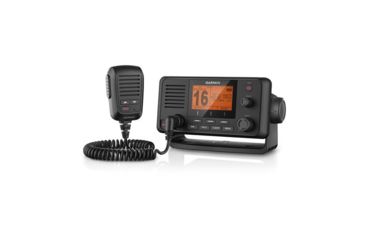

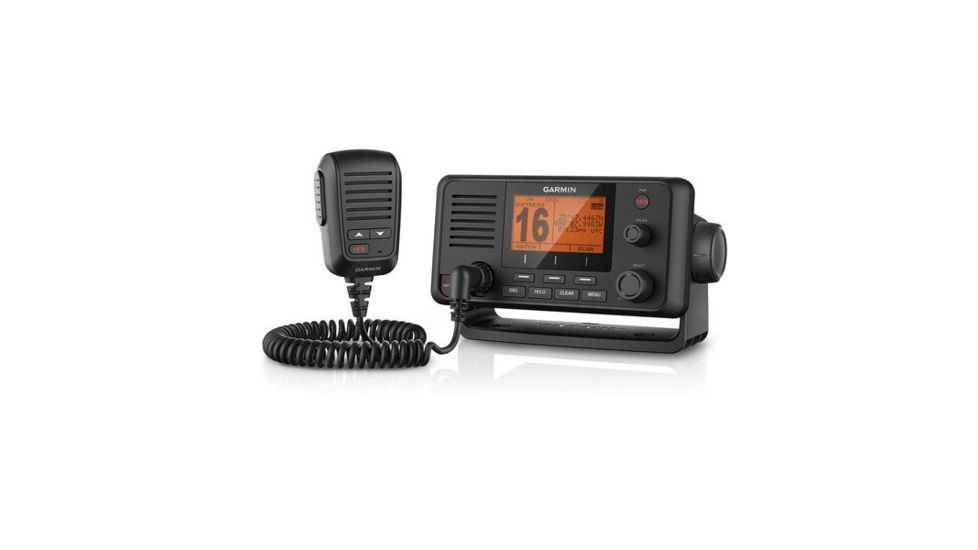

Garmin VHF210 010-01751-00

Stay in Contact on the Water

Standard Class D Digital Selective Calling (DSC) functionality

25 W of transmit power

Compatible with GHS 11 second-station handset

Frequency bands include all U.S., Canadian and international marine channels plus 10 NOAA weather channels

Removable fist mic handset can be relocated away from the radio

Easy plug-and-play installation via the NMEA 2000 network to compatible chartplotters and MFDs

Communication is critical on the water. This easy-to-install fixed-mount VHF 210 radio enhances communication to help you stay in contact with the shore and other boats in your area.

Increase Your Peace of Mind

During an emergency situation, the 25 W transmit power of VHF 210 gives fishermen, sailors and cruisers confidence at their fingertips.

Communicate Confidently on the Water

VHF 210 is easy to install and use and features a large, easy-to-read display. Just plug and play via the NMEA 2000 network to compatible Garmin chartplotters and MFDs. It provides standard Class D DSC functionality (distress calling and direct calling with user-programmed MMSI). It also includes frequency bands for all U.S., Canadian and international marine channels and 10 NOAA weather channels. VHF 210 is NMEA 0183 compatible, and its removable fist microphone can be relocated away from the radio. Its compatible with the GHS 11 second-station handset.

Communicate with Style

Because your helm is a source of pride, the VHF 210 marine radio is designed to complement the appearance of GPSMAP 7x2/9x2, 10x2/12x2, 7400/7600 series chartplotters and GPSMAP 8400/8600 series MFDs.

Features of Garmin VHF210

• Unit Dimensions, HxWxD: 3.9 x 7.8 x 5.8 (9.8 x 19.7 x 14.9 cm)
• Weight: Radio without microphone 42.8 oz. (1.2 kg); Microphone 8.8 oz. (0.25 kg)
• Water rating: IPX7
• Temperature Range: Operating (from -15C to 70C; from 5F to 158F); Storage (from -20C to 70C; from -4F to 158F);
• Compass-safe Distance: 29.5 (75 cm)
• NMEA 2000: Yes
• NMEA 0183: Yes
• Digital Selective Calling: Class D
• Frequency Bands: All USA, Canadian, and international marine channels; 10 NOAA weather channels
• Operating Voltage: 10.8 - 15.6 Vdc
• Current Draw: Standby 350 mA; Receive 600 mA; Transmit from 2.0 A to 6.0 A (from 1 W to 25 W)
• Frequency Range: 156.050 MHz to 163.275 MHz (including WX channels)
• Hailer Output Power: 20 W at 4
• Hailer horn impedance: 4
• External speaker impedance: 4
• Antenna connector: S0-239 (50 )
• Maximum antenna gain: 9 dBi

Package Contents:

• Garmin VHF210
• VHF 210
• Hailer NMEA 0183 cable
• Power cable
• Bail mount and knobs
• Flush mount gasket
• Marine mounting screws
• Mic hanger
• Protective cover
• Removable speaker mic
• Documentation
