Garmin VHF315 010-02047-00

Enjoy Reliable Communication

Reliable 25-watt VHF Class D DSC marine radio

Includes GHS 11 handset and new active speaker to use as intercom between up to 3 stations

Built-in GPS receiver (requires external antenna)

NMEA 2000 connectivity for easy integration with compatible chartplotters and multifunction displays

Preprogrammed with U.S., Canadian and international marine channels plus 10 NOAA weather channels

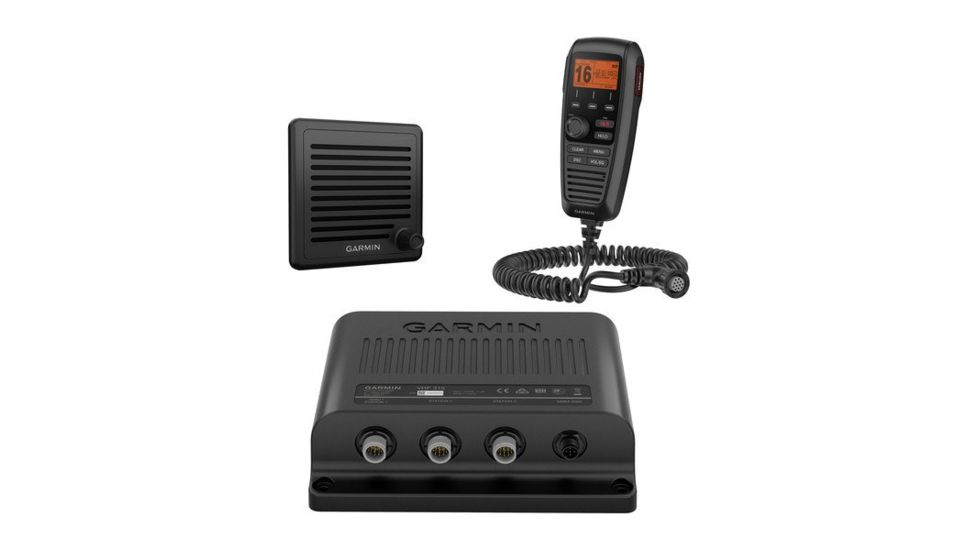

The 25-watt VHF 315 marine radio with Class D DSC is a modular communication solution. It provides the security of reliable communication and full NOAA weather alerts on the water by meeting the latest industry standards. Its easy to use and integrates seamlessly into the Garmin onboard system. It has a built-in GPS receiver with connector for required external antenna. VHF 315 includes a GHS 11 handset and new active speaker to use as an intercom between up to 3 stations. Its also equipped with a two-way 30-watt hailer system for communication with other boats or deckhands. NMEA 2000 connectivity enables easy integration with compatible chartplotters, multifunction displays and convenient software updates. Simplified handset connectors and an uncomplicated, easy-to-use interface allow you to get your radio set up quickly, so you can get back out on the water and start communicating.

Features of Garmin VHF315

• Dimensions: 8.1 x 7.1 x 2.4 (20.5 x 18.1 x 6.0 cm)
• Weight: 3.4 lbs. (1.53 kg)
• Operating Temperature Range: 5F to 158F (-15C to 70C)
• Water rating: IPX7
• Compass-safe Distance: 2 (5 cm)
• Digital Selective Calling: Class D
• Frequency Bands: All USA, Canadian, and international marine channels; 10 NOAA weather channels
• Operating Voltage: 9.6 - 16 Vdc
• Current Draw: Standby: 350 mA; Receive: 600 mA; Transmit High Power: 6 A max; Transmit Low Power: 2 A max
• Transmitter Power (at 13.6 Vdc): High Power: 23-25 W; Low Power: 0.7-1 W
• NMEA 2000 LEN: 1
• NMEA 0183: Yes
• Active Speaker Specifications
• GHS 11 Specifications

Package Contents:

• Garmin VHF315
• VHF 315 marine radio
• GHS 11
• Cradle (for GHS 11)
• Active speaker
• Power cable
• Deck cable (10 meters)
• Microphone hanger
• Mounting hardware
• Documentation
