Humminbird 858c HD DI Combo Marine GPS Navigator 409000-1

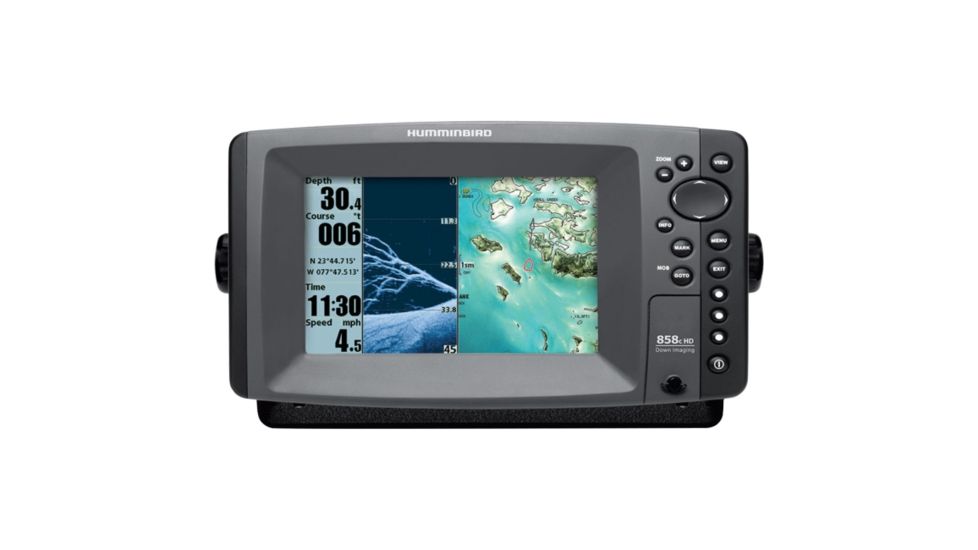

Humminbird 858c HD DI Combo Marine GPS Navigator, 7", 65536 Colors 4090001
Humminbird 858c HD DI Combo Marine GPS Navigator, 7", 65536 Colors 4090001
1 of 1 images
Humminbird 858c HD DI Combo Marine GPS Navigator, 7", 65536 Colors 4090001

Tap Tap to Zoom

Questions & Answers

Code: 4H-FH-4090001

MPN: 409000-1

UPC: 082324038372

Product No Longer Available

Product Info for Humminbird 858c HD DI Combo Marine GPS Navigator

Humminbird 858c HD DI Combo features a super bright LED backlit LCD 7" display. This wide screen 480V x 800H, 16:9 Color provides bright, crystal-clear images for easy viewing in harsh sunlight. The HD Down Imaging™ sonar with DualBeam PLUS™ with SwitchFire™ has 4000 watts PTP power output, GPS Chartplotting with built-in ContourXD™ map and Advanced Fishing System capabilities. Includes a unit cover, dual card reader and Instant Access Preset Buttons..image

Specifications for Humminbird 858c HD DI Combo External GPS Combo - Down Imaging:

Display Size: 7" diagonal
Display Pixel Matrix: 480V x 800H
Display Type: 16
Display Colors/Grayscale: 65,000 Colors
Down Imaging Sonar Coverage: 455 kHz / 75° @ -10db; 800 kHz / 45° @ -10db
Dual Beam PLUS Sonar Coverage: 200 kHz / 25° @ -10db; 455 kHz / 16° @ -10db
Target Separation: 2.5 inches
Power Output (RMS): 500 Watts (RMS)
Power Output (Peak to Peak): 4000 Watts (Peak-to-Peak)
Temperature: Included
Speed: GPS Speed Included
Backlight: Yes
Waterproof: Yes
Mount: In-dash
Unit Size: 11" W x 6" H x 2" D
Mount: Gimbal
Unit Size: 11" W x 6" H x 4" D
Transducer - Standard: XNT-9-DI-T
Transducer Mounting: Inside Hull or Transom
Power Input: 10-20 VDC
Power Draw, Lights off: 780mA

Features of Humminbird 858c HD DI Combo GPS w/ Down Imaging:

  • ADVANCED SONAR FEATURES
  • Switchfire Sonar
  • Screen Snap Shot to Memory Card
  • Sonar Recording
  • Split Screen Zoom
  • Split Screen Bottom Lock
  • Wide Narrow Cone Split Screen
  • Instant Image Update
  • Freeze Frame with the ability to Mark Structure on Sonar
  • Selective Fish ID+
  • Real Time Sonar RTS Window
  • Sonar Echo Enhancement
  • TrueArch Technology
  • USER-FRIENDLY TECHNOLOGY
  • 3D Chart View
  • Large Digits View
  • Custom View Selections
  • Custom Digital Readout Selection
  • Selectable Display Colors
  • Selectable Background Colors
  • View Preset Keys
  • Temperature Graph
  • Temperature Alarm
  • Triplog
  • X-Press™ Menu System

Package Contents:

  • Humminbird 858c HD DI Combo Marine GPS Navigator, 7", 65536 Colors 4090001
  • Unit cover
