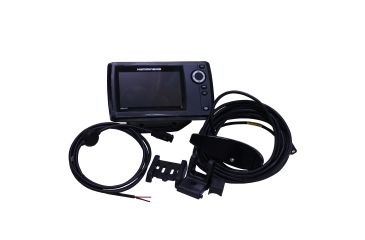

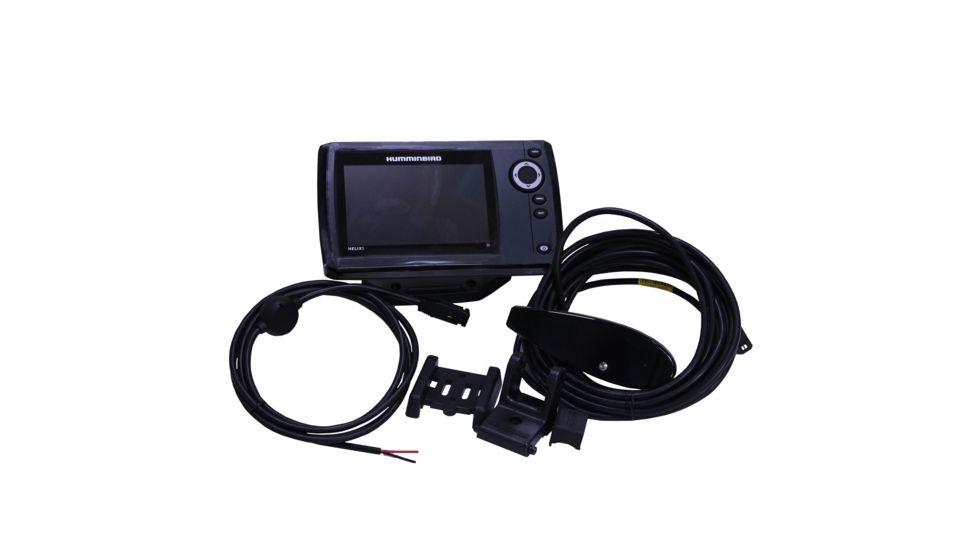

Humminbird HELIX 5 DI G2 410200-1
Tap Tap to Zoom
Questions & Answers
Code: 4H-F81-410200-1
MPN: 410200-1
UPC: 082324049019
List: $384.60Save $34.61
$349.99
Product Info for Humminbird HELIX 5 DI G2 410200-1
If fishing is in your DNA, there's no such thing as "too early" or "too far." High expectations go with the territory. The HELIX5 Series answers the call with an uncompromising, 5" widescreen display. This HELIX 5 DI G2 model features Down Imaging, DualBeam PLUS and SwitchFire
WARNING:
California`s Proposition 65
Specifications for Humminbird HELIX 5 DI G2 410200-1:
| Display Size - Diagonal: | 5" |
| Display Pixel Matrix: | 800H X 480V |
| Display Type: | Color TFT |
| Display Colors Grayscale: | 16-bit |
| Sonar Standard: | Down Imaging/DualBeam PLUS |
| Standard Sonar Coverage: | 16?, 28?, 45? & 75? @ -10db |
| Standard Sonar Frequency: | 455/800/200/455 kHz |
| Sonar Optional: | None |
| Target Separation: | 2.5" |
| Power Output RMS: | 500 Watts |
| Power Output Peak to Peak: | 4000 Watts |
| Depth Capability: | 350' (DI) & 600' (2D) |
| Temperature: | Built-In Transducer |
| Speed: | Optional |
| Backlight: | LED |
| Unit Size - Gimbal Mount: | 7.55"W x 4.64"H x 3.3"D |
| Mount A Type: | Gimbal Mount |
| Unit Size - Indash Mount: | 7.55"W x 4.28"D x 1.13"D |
| Mount B Unit Size2: | Optional In-Dash |
| Mounting Options: | Gimbal or Optional In-Dash |
| Transducer Standard: | XNT 9 DI T |
| Transducer Mounting: | Transom |
| Power Input: | 10.8-20 VDC |
| Power Draw: | 650 mA |
| PC Connect: | Optional |
| SwitchFire Sonar: | Included |
| Humminbird PC: | Optional |
| Upgradable Internal Software: | Optional |
| Split Screen Zoom: | Included |
| Split Screen Bottom Lock: | Included |
| Large Digits View: | Included |
| Wide/Narrow Cone Split Screen: | Included |
| Custom View Selections: | Included |
| Custom Digital Readout: | Included |
| Temperature Alarm: | Included |
| Freeze Frame: | Included |
| Instant Image Update: | Included |
| Selective Fish ID+: | Included |
| Real Time Sonar: | Included |
| Triplog: | Optional |
| X-Press Menu System: | Included |
| Card Reader Available: | No |
Features of Humminbird Helix 5 , DI G2 410200-1:
- Down Imaging Sonar: Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
- SwitchFire Sonar: Take command of how your sonar returns appear with Clear and Max Modes.
- DualBeam Plus Sonar: Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area
- Up-gradable Software: Access software updates to enhance the performance of your Humminbird unit through the My Humminbird section of the site
Package Contents:
- Humminbird HELIX 5 DI G2 410200-1
Humminbird HELIX 5 DI G2 410200-1 Orderable Models
List of Orderable Models
- Humminbird HELIX 5 DI G2 410200-1 , MPN: 410200-1 , UPC: 082324049019 , Code: 4H-F81-410200-1
