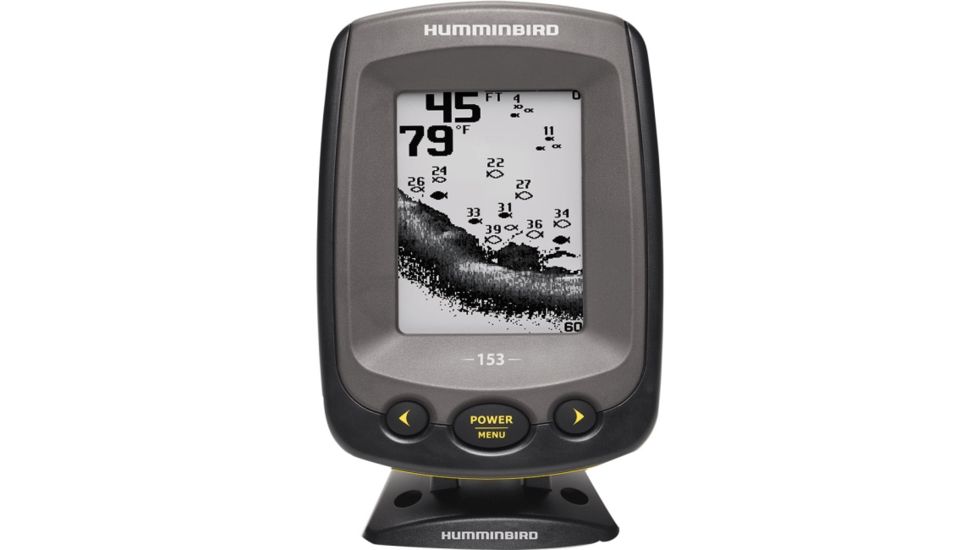

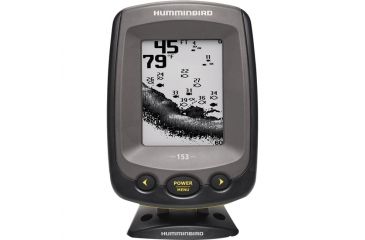

Humminbird PiranhaMax 153 4088301

Humminbird PiranhaMax 153, 4" FSTN LCD, 800 W Peak, 100 W RMS, 83 kHz,200 kHz 4088301
Humminbird PiranhaMax 153, 4" FSTN LCD, 800 W Peak, 100 W RMS, 83 kHz,200 kHz 4088301
1 of 1 images
Humminbird PiranhaMax 153, 4" FSTN LCD, 800 W Peak, 100 W RMS, 83 kHz,200 kHz 4088301

Tap Tap to Zoom

Questions & Answers

Code: 4H-FH-4088301

MPN: 4088301

UPC: 082324037382

Product No Longer Available

Product Info for Humminbird PiranhaMax 153

Humminbird PiranhaMax 153 features a 4 level grayscale 160V X 128H, 4" display with 800 watts PTP power output with Dual Frequency sonar. The design also allows drop-in replacement for competitive in-dash models.image

Specifications for Humminbird PiranhaMax 153 Fishfinder:

Display Size: 4.0" diagonal
Display Pixel Matrix: 160V x 128H
Display Type: FSTN LCD
Display Colors/Grayscale: 4 Level Grayscale
Dual Beam Sonar Coverage: 83 kHz / 60° @ -10db; 200 kHz / 20° @ -10db
Target Separation: 2.5 inches
Power Output (RMS): 100 Watts (RMS)
Power Output (Peak to Peak): 800 Watts (Peak-to-Peak)
Temperature: Included
Backlight: Yes
Waterproof: Yes
Mount: Tilt
Unit Size: 4-3/8" W x 6-1/8" H x 3-1/4" D
Transducer - Standard: XNT-9-20-T
Transducer Mounting: Inside Hull or Transom
Power Input: 10-20 VDC

Features of Humminbird PiranhaMax 153:

  • Temperature Sensor

Package Contents:

  • Humminbird PiranhaMax 153, 4" FSTN LCD, 800 W Peak, 100 W RMS, 83 kHz,200 kHz 4088301
