Humminbird XNT-9-HW-MSI-150-T MEGA SI/DI Dual Spectrum CHIRP Transducer w/Temp f/HELIX 7/8 MEGA SI 710297-1 Color: Black, $10.00 Off w/ Free Shipping

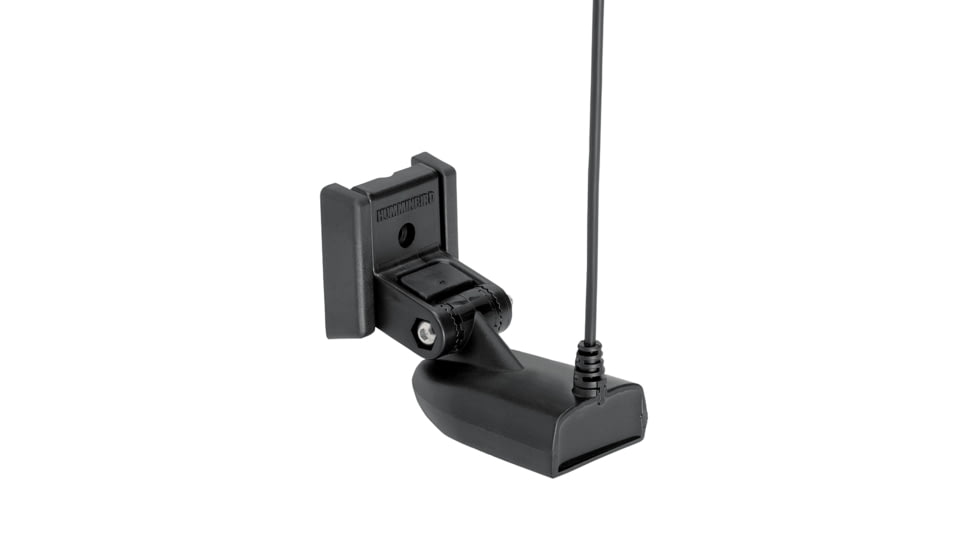

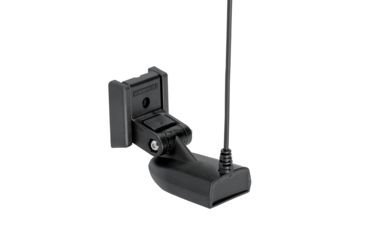

XNT-9-HW-MSI-150-T MEGA SI/DI Dual Spectrum CHIRP Transducer with Temp f/HELIX 7/8 MEGA SIMEGA Side Imaging Transom Mount Transducer supports MEGA Imaging/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor rugged composite design impact-release mounting bracket and 20' cable.

Specifications for Humminbird XNT-9-HW-MSI-150-T MEGA SI/DI Dual Spectrum CHIRP Transducer w/Temp f/HELIX 7/8 MEGA SI:

Features of Humminbird XNT-9-HW-MSI-150-T MEGA SI/DI Dual Spectrum CHIRP Transducer w/Temp f/HELIX 7/8 MEGA SI

• This accessory is compatible with the following Humminbird products: HELIX 7 CHIRP MEGA SI GPS G3 HELIX 7 CHIRP MEGA SI GPS G3N. HELIX 8 CHIRP MEGA SI GPS G3N
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz Narrow: 180-240 kHz Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (146m) MEGA SI: 1075-1150 kHz - 250ft (76m)
• Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 125ft (38m) MEGA DI: 1075-1150 kHz - 75ft (23m)

Package Contents:

• Humminbird XNT-9-HW-MSI-150-T MEGA SI/DI Dual Spectrum CHIRP Transducer w/Temp f/HELIX 7/8 MEGA SI
