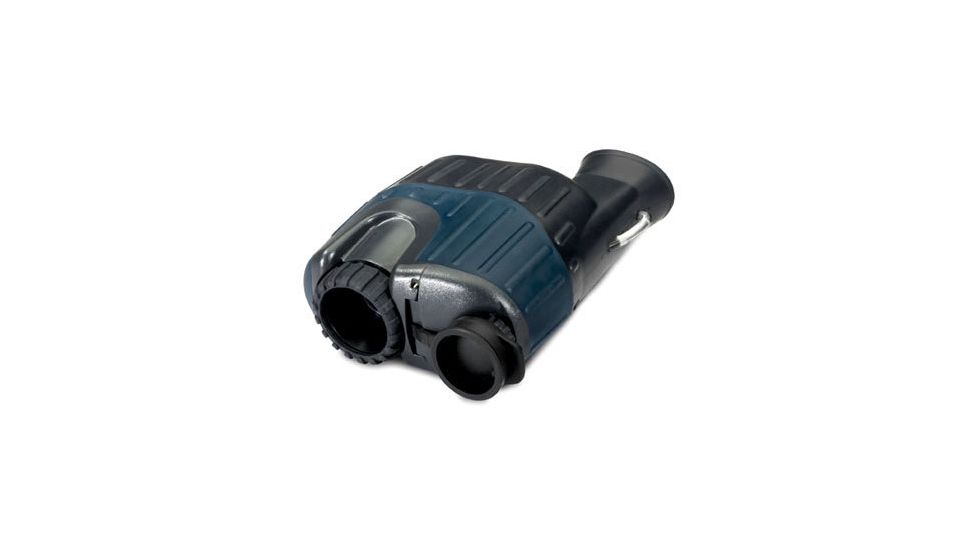

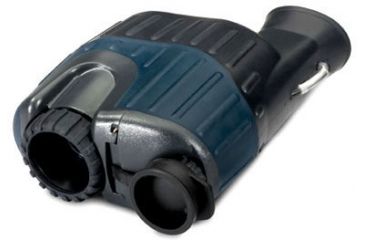

Morovision Thermal-Eye X-50 Thermal Camera RCP-1000380-0001
Tap Tap to Zoom
Product Not Available for Order Yet
Morovision Thermal-Eye X-50 Thermal Camera RCP-1000380-0001 is not available yet, but it is coming to our store soon! If you are looking for something you can receive sooner, please consider the replacements selected by our product experts below
Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.
Product Info for Morovision Thermal-Eye X-50 Thermal Camera RCP-1000380-0001
Morovision Thermal-Eye X-50 Thermal Camera sets the standard for affordable, small, lightweight thermal imaging cameras. This powerful, compact camera is a pocket-sized, rugged and durable. Because criminals cant' hide their heat, this camera is the perfect partner in fighting crime. It detects heat signature - up to 1,000 feet away - in total darkness or when vision is compromised by smoke, bright lights, glare and shadows. With the X-50 Thermal Camera, hiding criminals are quickly located, exposed and apprehended. Priced right for your budget, your operation cannot afford to protect and serve without the Morovision X50 Thermal Eye Camera.
The Thermal Eye X-50 is optimal for finding objects in no-light situations, search & rescue operations, fugitive pursuit and other law enforcement applications. Morovision is known for the highest quality in all of their Morovision Night Vision products. Be sure to check out the rest of Morovision products and other high performance product selection.
Specifications for Morovision Thermal-Eye X-50 Thermal Camera:
| Focal Plane Array | Type & Material:Amorphous Silicon Microbolometer
Pixel Count (Resolution): 100 x 80 Spectral Response: 7-14 ?m (filter bandwidth) Thermal Sensitivity: less than or equal to 150 mK |
| Thermal Imaging Performance | Startup Time: ~ 5 sec
Detection Range for Human Activity: Up to 1000ft (305m) Contrast/Brightness & Pixel Processing: Fully Automatic Susceptibility to Blinding Visible Light: None Infrared Polarity: White = Hot, Black = Cold |
| Optics | Field of View: 11° x 8°
Lens Focal Length: 16mm Minimum Focus Distance: ~ 3 ft. (1 meter) |
| Video | Output format: Analog: NTSC or PAL on rear outlet jack
Viewfinder Display: Monochrome LCD (320 x 240 pixels) Viewfinder Dimming: Integral to power on/off switch |
| Power | Power Source: Two (2) AA batteries
Operating Time: ~ 2 Hours with alkaline ~5 Hours with lithium 77° F (25° C), night-time operation Auxiliary Power: 9 to 12 VDC input on rear outlet jack |
| Environmental Characteristics | Operating Temperature: -14°F to 122°F (-10°C to 50°C)
Storage Temperature: -4°F to 176°F (-20°C to 80°C) Water & Shock Resistance: Waterproof to 9ft (3m) submersion, buoyant in fresh water Shockproof to 6 ft (2m) drop - IEC level IPX6 EMC Compliance:FCC Part 15 & CE Mark Pan Speed / Control: 36° per second (max) / Single-speed control |
| Physical Characteristics | Size:5.25" L x 4.50" W x 2.0" H (13.4 x 11.4 x 5.1 cm)
Weight: 13 oz (381g), batteries installed Eye Cup: Integral to camera body with 2" eye relief Mounting: 1/4-20 Tripod Mount |
Features of Morovision Thermal-Eye X-50 Thermal Camera:
- Developed with advanced amorphous silicon microbolometer technology.
- Rugged design with integral rubber eye cup can survive accidental drops and underwater submersion to 9 feet.
- Pocket-sized, weighing only 13 ounces.
- Detects human activity from over 300 meters away.
- Sealed cover for enclosing video and power jacks
- Operates for 2 hours on 2 commercial AA alkaline batteries.
Package Contents:
- Morovision Thermal-Eye X-50 Thermal Camera
- 2 AA Alkaline Batteries
- Neck Strap & Wrist Strap
- Lens Cover
- Lens Cleaning Cloth
- Operator's Manual
