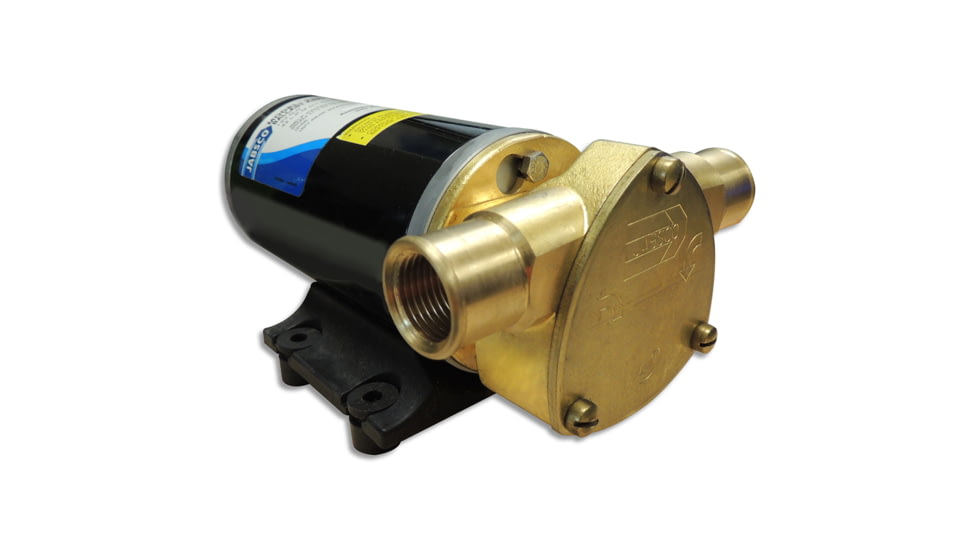

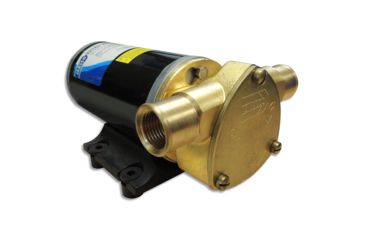

Jabsco Ballast King Bronze DC Pump w/Deutsch Connector w/o Reversing Switch 22610-9407

Jabsco Ballast King Bronze DC Pump w/Deutsch Connector w/o Reversing Switch - 15 GPM 75414
Jabsco Ballast King Bronze DC Pump w/Deutsch Connector w/o Reversing Switch - 15 GPM 75414
1 of 1 images
Jabsco Ballast King Bronze DC Pump w/Deutsch Connector w/o Reversing Switch - 15 GPM 75414

Tap Tap to Zoom

Questions & Answers
Color:
Black
Voltage:
12 volts

Code: 684-LS5-CWR5118-22610-9407

MPN: 22610-9407

UPC: 671880840361

Product No Longer Available

Product Info for Jabsco Ballast King Bronze DC Pump w/Deutsch Connector w/o Reversing Switch

Ballast King Bronze DC Pump with Deutsch Connector without Reversing Switch - 15 GPMWakeboard and Ski Boat Ballast Pumpimage

Features of Jabsco Ballast King Bronze DC Pump w/Deutsch Connector w/o Reversing Switch

  • Flow rate: 15 US gallons/min (57 Litres/min)
  • Self-priming from dry up to 1.2m (4ft)
  • Adds approx 125lbs (56kgs) of ballast per minute
  • Reversible to both fill and empty tanks
  • Simple design means fewer wearing parts
  • ISO 8846 MARINE (Ignition protection)
  • Applications:The Ballast King is designed to pump water into Wakeboard Liquid Ballast Tanks and when reversed will also pump water out of them. It has a flow rate of 15 gallons per minute so it can fill most ballast tanks in about five minutes. It is equipped with a Run-Dry Protection Device (patent pending) to automatically shut-off the pump and protect the impeller from run-dry damage should the pump be mistakenly left on after the Ballast Tank is empty. :Body Materials: Bronze
  • Impeller: Jabsco Neoprene compound
  • Seal: Lip Type
  • Port(s): 1/2" Internal Pipe Threads 1" External Hose Barb
  • Voltage: 12 (Vdc)
  • Amp Draw: 19 (amp)
  • Fuse Size: 25 (amp)
  • Motor Type: Equipped with Run-Dry Protection Device (Patent Pending) Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball Type Shaft Bearing Reversible
  • Duty Cycle: 30 Minutes Max
  • Dimensions: 3 5/8 x 8 x 4 3/4 (inches)

Package Contents:

  • Jabsco Ballast King Bronze DC Pump w/Deutsch Connector w/o Reversing Switch
