Johnson Pump Aqua Jet 3.5 GPM Water Pressure System 10-13395-104

Johnson Pump Aqua Jet 3.5 GPM Water Pressure System - 24V 49138
Johnson Pump Aqua Jet 3.5 GPM Water Pressure System - 24V 49138
1 of 1 images
Johnson Pump Aqua Jet 3.5 GPM Water Pressure System - 24V 49138

Tap Tap to Zoom

Questions & Answers
Color:
Black
Voltage:
24 volts

Code: 686-LS5-CWR4676-10-13395-104

MPN: 10-13395-104

UPC: 729321910842

Product No Longer Available

Product Info for Johnson Pump Aqua Jet 3.5 GPM Water Pressure System

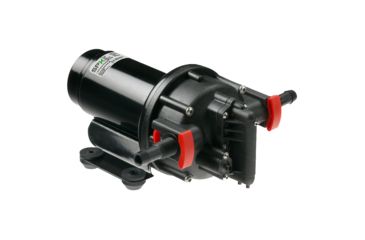

Aqua Jet Water Pressure Systems - 3.5GPM - 24Vimage

The five chamber Aqua Jet WPS-series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics. It is recommended to install the WPS-pumps with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake.

Diaphragm: Santoprene

Valves: EPDM

Body: PP/PPA

Motor: 85W

Capacity: 13 l/min - 3.5 GPM

Pressure Cut Off:2.8 bar - 41psi

Fuze Size: 5 A

Connection:3/8" NPT/hose 1/2" 1/2"NPT/Hose 3/4" 1/2" NPT 3/4" Hose

Weight: 2 kg /4.5lbs

Length: 2365 mm/9.31"

Width: 210 mm/8.25"

Height: 116 mm/4.575"

Features of Johnson Pump Aqua Jet 3.5 GPM Water Pressure System

  • Gallons Per Minute: 3.5
  • PSI: 41
  • Volts: 24

Package Contents:

  • Johnson Pump Aqua Jet 3.5 GPM Water Pressure System
