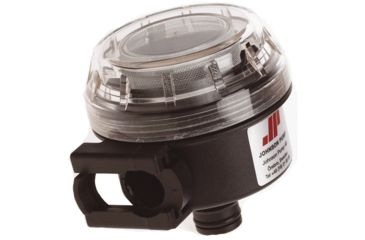

Product Info for Johnson Pump Inlet Strainer
PUMProtector Strainer
The PUMProtector inlet and universal strainers feature transparent covers for simple inspection a wide variety of KlickTite port connectors for simple installation and removal and high quality materials for simple maintenance. The connectors make it possible to remove the entire unit for thorough cleaning wherever it's most convenient.
Materials
Strainer - Polyamide 66 black
Cover - Acrylic clear 01-36012 P02
Screen - Stainless steel 40 mesh
O-rings - Silicone and EPDM
Diameter 80 mm / 3.15"
Height 60 mm / 2.35"
Weight 0.15 kg / 0.33 lbs
Mesh size 40
Max Liquid Temp. - +50C - +120F
Max Temp. for Drinking Water - +30C - +85F
KlickTite Connector - Built-in KlickTite 1 x 1/2" hose / 3/8" NPT 1 x 3/4" hose / 1/2" NPT
Specifications for Johnson Pump Inlet Strainer:
| Manufacturer: | Johnson Pump |
| Color: | Black |
Features of Johnson Pump Inlet Strainer
- Max Liquid Temp: 50C - 120F, Max Temp for Drinking Water: 30C - 85F, Built-in KlickTite connector, KlickTite Connector Dimensions: 1 x 1/2" hose and 3/8" NPT; 1 x 3/4" hose and 1/2" NPT
Package Contents:
- Johnson Pump Inlet Strainer
Johnson Pump Inlet Strainer Orderable Models
List of Orderable Models
- Johnson Pump Inlet Strainer - 40 Mesh Screen, 09-24653-02-CN , MPN: 09-24653-02-CN , UPC: 729321246538 , Code: 686-PPA-CWR9531-09-24653-02-CN
