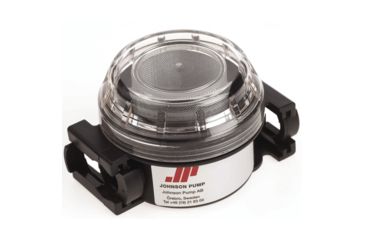

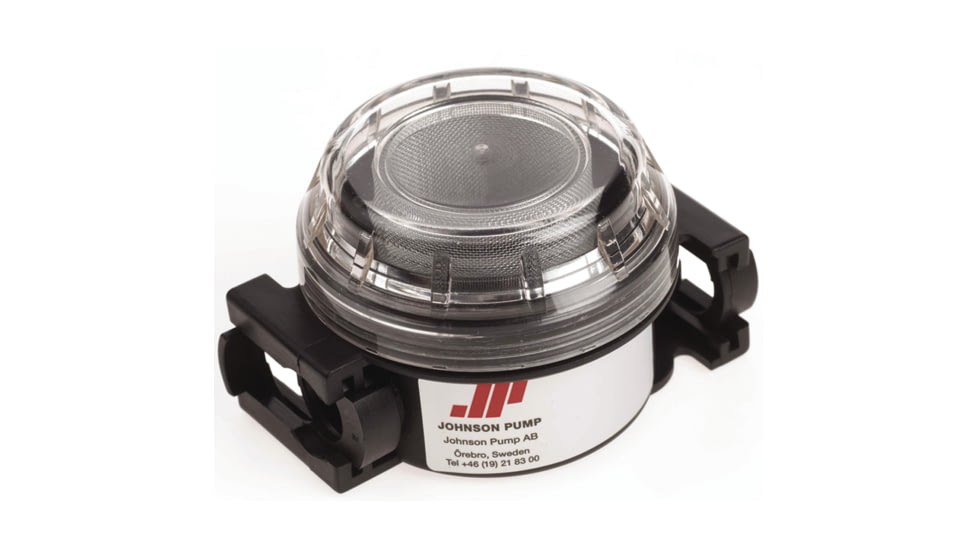

Product Info for Johnson Pump Universal Strainer
PUMProtector Strainer
The PUMProtector inlet and universal strainers feature transparent covers for simple inspection a wide variety of KlickTite port connectors for simple installation and removal and high quality materials for simple maintenance. The connectors make it possible to remove the entire unit for thorough cleaning wherever it's most convenient.
Materials
Strainer - Polyamide 66 black
Cover - Acrylic clear 01-36012 P02
Screen - Stainless steel 40 mesh
O-rings - Silicone and EPDM
Diameter 80 mm / 3.15"
Height 60 mm / 2.35"
Weight 0.15 kg / 0.33 lbs
Mesh size 40
Max Liquid Temp. - +50C - +120F
Max Temp. for Drinking Water - +30C - +85F
KlickTite Connector - 2 x 1/2" hose / 3/8" NPT 2 x 3/4" hose / 1/2" NPT
Specifications for Johnson Pump Universal Strainer:
| Manufacturer: | Johnson Pump |
| Color: | Black |
| Additional Features: | Mesh Screen |
Features of Johnson Pump Universal Strainer
- Mesh Type: 40, Maximum Liquid Temperature: +50C -+ 120F, Maximum Temperature for Drinking Water: +30C -+ 85F, Transparent Cover
Package Contents:
- Johnson Pump Universal Strainer
Johnson Pump Universal Strainer Orderable Models
List of Orderable Models
- Johnson Pump Universal Strainer - 20 Mesh Screen, 09-24652-04-CN , MPN: 09-24652-04-CN , UPC: 7330717008864 , Code: 686-PPA-CWR17168-09-24652-04-CN
Johnson Pump Universal Strainer Unavailable & Discontinued Models
List of Unorderable Models
- Johnson Pump Universal Strainer - 40 Mesh Screen, 09-24652-02-CN , MPN: 09-24652-02-CN , UPC: 729321652025 , Code: 686-PPA-CWR17168-09-24652-02-CN
