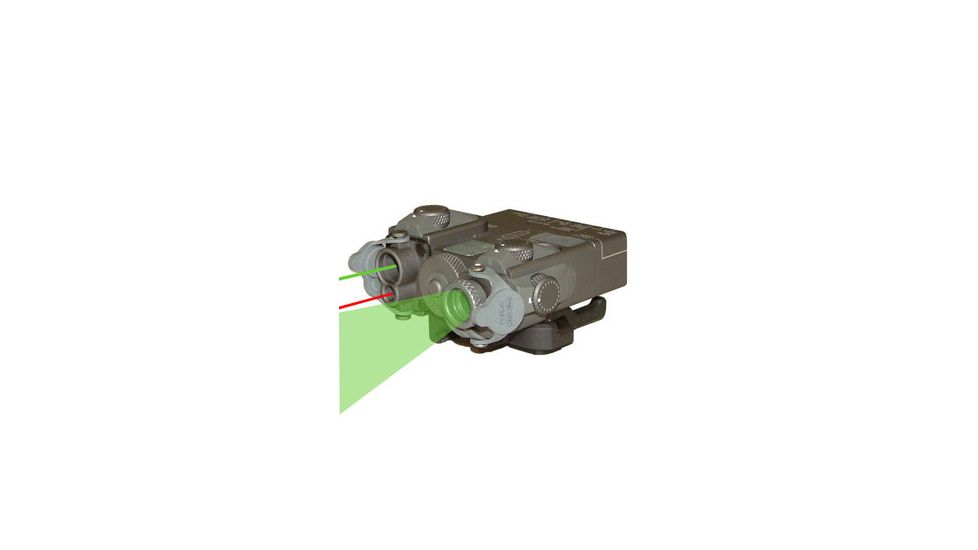

Steiner Laser Devices High Power DBAL A2H Laser with Visible Green Pointer (532nm)

Steiner DBAL-2AH Tactical Laser System with Visible Green Pointer (635nm) (<5mW), Infrared Pointer (835nm) (<50mW) and Infrared Pointer/Illuminator (835nm) (<150mW) is equipped with a focusable infrared illuminator, infrared pointer and the brightest visible aiming laser allowed by law. This new High Power model of Aiming Laser by Steiner, offers even more unbeatable advantages with the addition of a 150mW infrared illuminator. This Laser by Steiner is designed for maximum operational versatility while keeping weight and size to a minimum. The Steiner Laser Sight from DBAL-A2H series is currently in service by special operations forces worldwide and is also contracted the U.S. Department of Defense as the AN/PEG-15A (NSN #5855-01-535-6166).

When duty calls, the superior Steiner Advanced DBAL-A2 H Tactical Laser is combat-ready and considered the most innovative multi-functional laser system available today. Supplied with Quick Release Throw Lever Mount, One 3-volt Lithium Battery, 7in. Remote Cable Pressure Pad (Specify remote cable length if different from stand). Aiming laser by Steiner is waterproof to 3 meters. This laser system by Laser Device is designed for use in daylight or low light operations (Visible) as well as night time operations (NVD). The aiming laser system emits a highly collimated beam of IR light for precise aiming of the weapon and a separate IR ILLUM for illumination of the target area. The IR Illuminator is equipped with an adjustable bezel to vary the size of the illumination beam based on the size and distance of tech target. The visible pointer and IR pointer are co aligned. The visible pointer can be sued to boresight the device without the requirement of a night vision device and will simultaneously boresight the IR pointer.

Specifications for Steiner Dual Beam Aiming Laser DBAL-2AH Advanced High-Power:

Features of Steiner Aiming Laser DBAL 2AH with Visible Green Pointer, Infrared Pointer and Infrared Pointer/Illuminator:

• NSN #5855-01-535-6166
• Activation and low battery indicator light
• Fully adjustable windage and elevation for pin-point accuracy
• Single adjustment mechanism for both visible and IR pointers
• Hi- and Lo-power modes of laser operation
• Manufactured in the U.S.A.
• Meets MIL-STD-810F for adverse environmental conditions
• Positive On/Off/Kill switch prevents accidental activation
• Precision glass lenses produce a virtually round laser point
• Single adjustment mechanism for visible and IR pointers (patent pending)
• Instantly switch between laser functions
  • Visible Pointer only
  • IR Pointer only
  • IR illuminator only
  • IR Pointer & IR Illuminator combined
• Waterproof to 3 Meters
• Momentary remote cable pressure pad switch and integrated momentary activation switch
  • Single tap enables momentary activation
  • Double tap instantly activates the laser in a continuous ON mode. Built-in safety mechanism returns the unit to momentary activation after 5 minutes

Package Contents:

• Steiner Laser Devices DBAL A-2H Aiming Tactical Laser with Visible Green Pointer (532nm) (<5mW), Infrared Pointer (835nm) (<50mW) and Infrared Pointer/Illuminator (835nm) (<150mW)
• Quick Release Mount
• Battery
• 7 in. remote cable pressure pad switch
• Optical pattern generators
• Nylon pouch

Steiner eOptics 2-Year Warranty

Covers all Night Vision Devices, Laser Aiming Solutions, Beacons, and Battle Lights. Valid in U.S. and Canada only. eOptics warrants its products against defects in workmanship and materials for a period of 2 years from the date of purchase. Warranty is void if the product has been abused, misused, neglected, or disassembled prior to the return to the manufacturer. The Steiner eOptics Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
