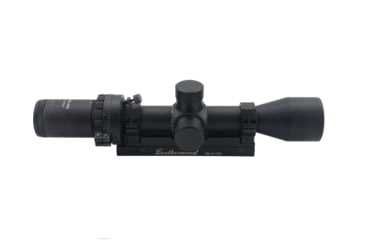

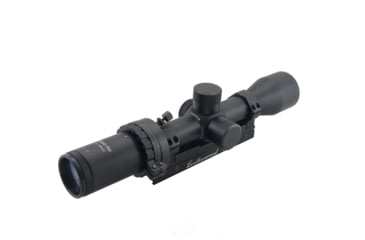

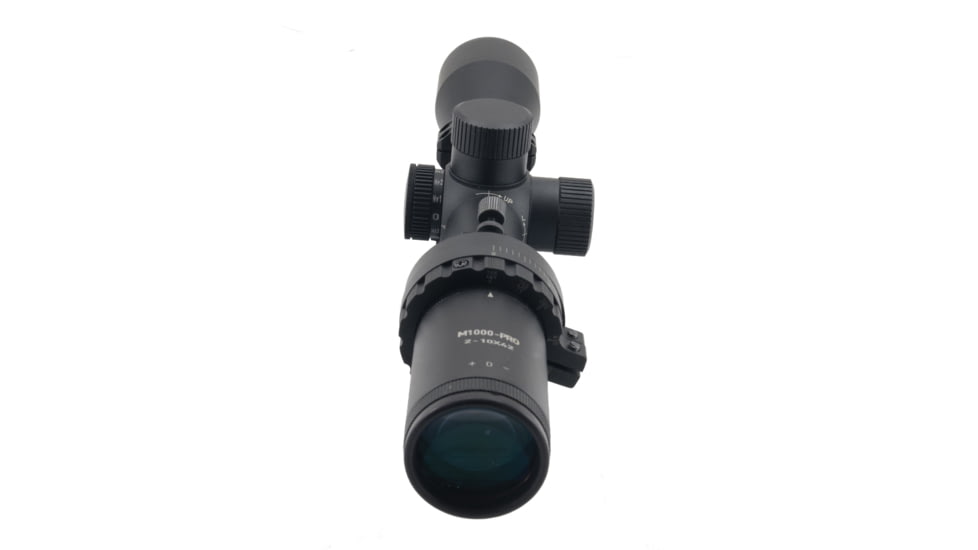

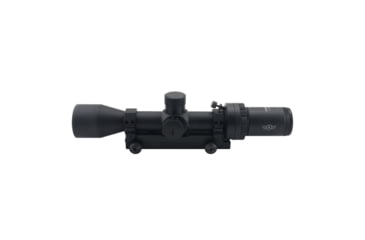

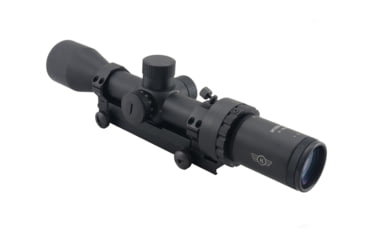

Product Info for Hi-Lux Optics Automatic Ranging Trajectory ART M1000-PRO 2-10x42mm LPVO Rifle Scopes, 30mm Tube

For the 50th anniversary of Jim Leatherwoods legendary Automatic Ranging Trajectory (ART) scope, Hi-Lux introduces the redesigned ART M1000-PRO. The original Auto-Ranging Telescope (ARTel) was issued to US Army and Marine Corp servicemen over 40 years ago. Since then, Hi-Lux has refined and improved the ART systems general cam to compensate the bullet drop of virtually any caliber.image

The ART scopes integrated mount provides external adjustment through the Trajectory cam. Selecting the proper cam setting will effectively match your rifles trajectory curve to the curve of the trajectory cam.

There are two ways to automatically compensate for trajectory when using the ART scope:

1) Framing known sized targets within the HR1 reticle

2) Dialing the Cam to a known distance

Once the known size target is framed, the ART scope will automatically compensate for bullet trajectory from 200 out to 1000 yards. This means no holdover or guesswork.

The M1000-PRO Trajectory cam has been designed to be modular and interchangeable. Caliber specific cams will be introduced in the future.

WARNING: California`s Proposition 65

Specifications for Hi-Lux Optics Automatic Ranging Trajectory ART M1000-PRO 2-10x42mm LPVO Rifle Scopes, 30mm Tube:

Manufacturer: Hi-Lux Optics
Objective Lens Diameter: 42 mm
Magnification: 2 - 10 x
Reticle: HR1 MOA
Tube Diameter: 30 mm
Reticle Focal Plane: Second Focal Plane (SFP)
Exit Pupil: 4 - 12 mm
Finish: Matte
Field of View, Linear: 11 - 53 ft at 100 yds
Eye Relief: 3.5 in
Diopter Adjustment Range: -2 - 3 dpt
Color: Black
Weight: 32 oz
Adjustment Click Value: 1/4 MOA
Length: 12 in
Adjustment Type: MOA
Parallax: 100 yds
Illumination Type: LED
Battery Type: CR2032
Width: 4 in
Fabric/Material: 6061-T6 Aluminum
Adjustment Range: 70 MOA
Height: 4 in
Focus Range: 25 yds to infinity
Lens Material: ED Glass
Optical Coating: Fully Multi-Coated, Diamond Tuff14
Brightness Settings: 11
Battery Life: 500 hours
Operating Temperature: -20 - 60 Celsius
Weather Resistance: Yes
Water Resistance Level: IP66
Shockproof: Yes
Fogproof: Yes
Battery Quantity: 1
Package Type: Box
Magnification Type: Variable
Condition: New
W/E Travel at 100 Yds: 70 MOA
Mount Type: Picatinny
Attachment Type: Picatinny

Features of Hi-Lux Optics Automatic Ranging Trajectory ART M1000-PRO 2-10x42mm LPVO Rifle Scopes, 30mm Tube

  • Automatic Ranging Trajectory (ART) Integrated Mount compensates for bullet drop from 200 - 1000 yards or meters (depending on initial setup)
  • External Windage adjustment built in front ring

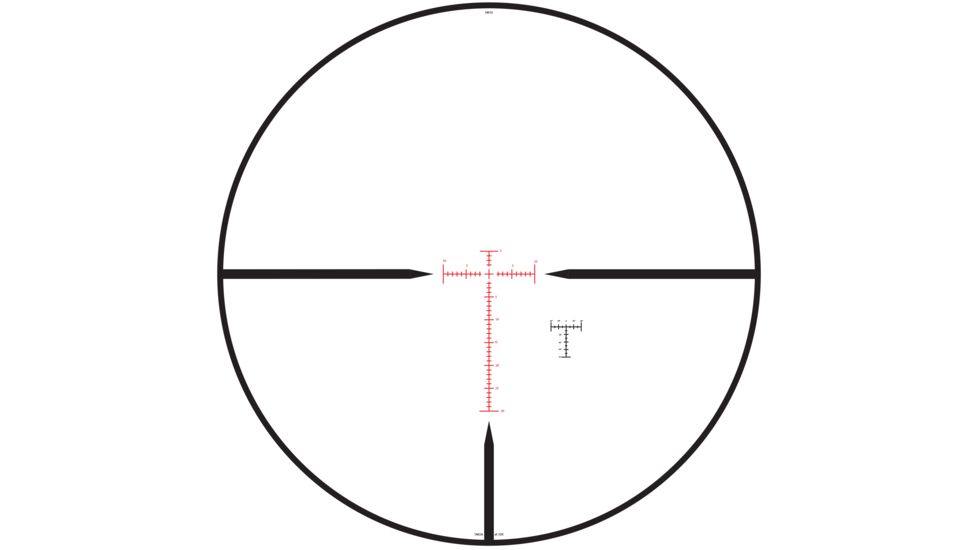

  • HR1 MOA Ranging Reticle allows the shooter to rangefind known sized targets by framing them within the reticle.

Package Contents:

  • Hi-Lux Optics Automatic Ranging Trajectory ART M1000-PRO 2-10x42mm LPVO Rifle Scopes, 30mm Tube
  • Flip Up Lens Covers
  • Microfiber Cloth
  • CR2032

Hi-Lux Optics Automatic Ranging Trajectory ART M1000-PRO 2-10x42mm LPVO Rifle Scopes, 30mm Tube Orderable Models

List of Orderable Models

Hi-Lux Optics Automatic Ranging Trajectory M1000-PRO 2-10x42mm LPVO Rifle Scope, 30mm Tube, HR1 MOA Reticle, Red Illumination, Matte Black, M1000-PRO-R , MPN: M1000-PRO-R , UPC: 810194021503 , Code: LW-RS-LARTPRO-M1000-PRO-R
Hi-Lux Optics Automatic Ranging Trajectory M1000-PRO 2-10x42mm LPVO Rifle Scope, 30mm Tube, HR1 MOA Reticle, Green Illumination, Matte Black, M1000-PRO , MPN: M1000-PRO , UPC: 810194021497 , Code: LW-RS-LARTPRO-M1000-PRO
