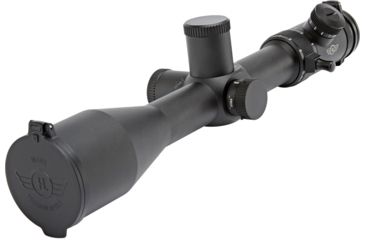

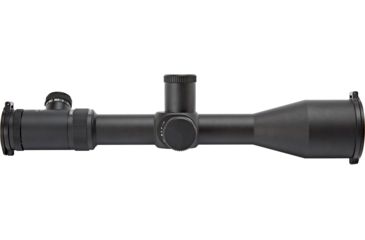

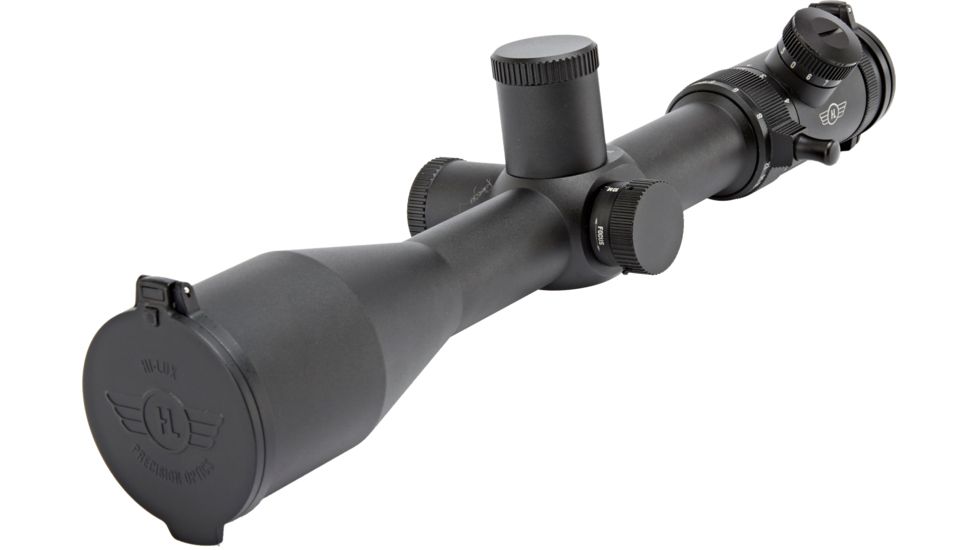

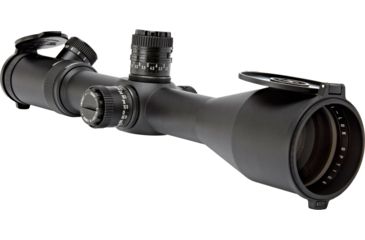

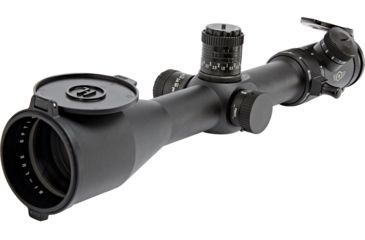

Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP), Color: Black, Tube Diameter: 34 mm w/ Free Shipping — 2 models

Special offer available for this product. Click here to see!
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Red Reticle, Matte Black, Small, UD530X56-R
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
1 of 8 images
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
2 of 8 images
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
3 of 8 images
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
4 of 8 images
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
5 of 8 images
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
6 of 8 images
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
HI-LUX UD 5-30X56 Rifle Scope with Red Reticle, Matte Black, Small, UD530X56-R
7 of 8 images
HI-LUX UD 5-30X56 Rifle Scope with Red Reticle, Matte Black, Small, UD530X56-R
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56
8 of 8 images
HI-LUX UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56

Tap Tap to Zoom

Questions & Answers
how do you turn on the illuminated cross-hairs? Manufacturer Answer

There is a rheostat that you can turn to adjust the intensity of illumination.

by Hi-Lux Optics, Manufacturer, January 7, 2026
Is this scope good for low light conditions Manufacturer Answer

Yes, the 56mm objective allows more light to enter the optic.

by Hi-Lux Optics, Manufacturer, January 29, 2025
View All Q&A You Have a Question? Ask!
Show In Stock Only
2 Models Available
Reticle
All
Illumination Color
All
Search
Click to select this item for your bundle offer!

Buy Together and Save

As low as $667.84
You Save Up to 25%
OP Bucks$11.70

Product Info for Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP)

Looking for a riflescope that compensates for bullet drop regardless of rifle and caliber with the turn of a dial? The Uni-Dial 5-30X56s patented ballistic elevation turret has six colored markers which can be positioned to quickly reference up to 6 different distances. All you need is to know your Data of Previous Engagement or D.O.P.E. Once the turret has been set, the shooter will be able to hit targets by turning to the respective marker for that distance.image

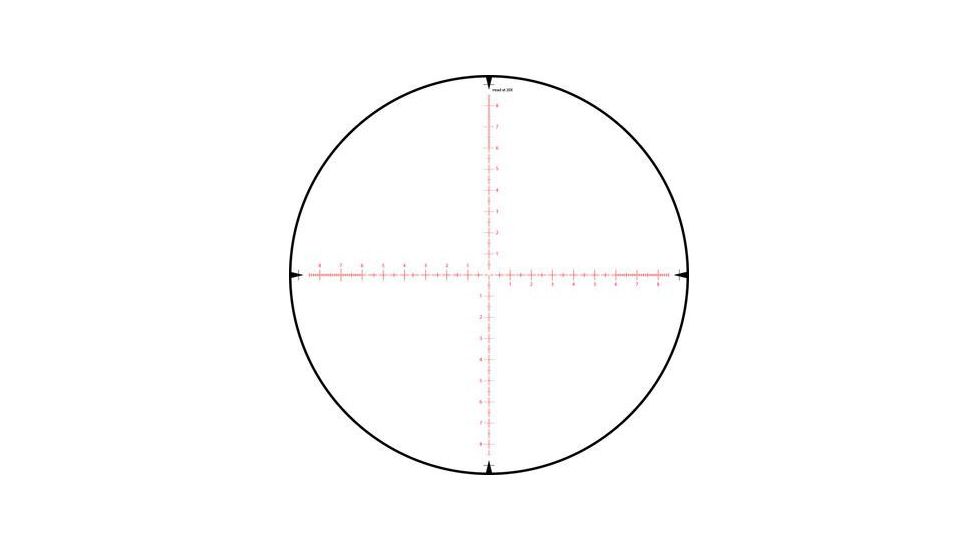

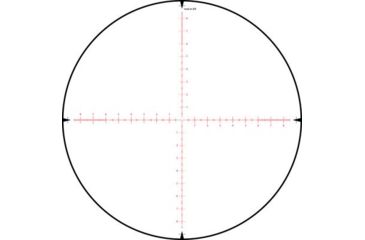

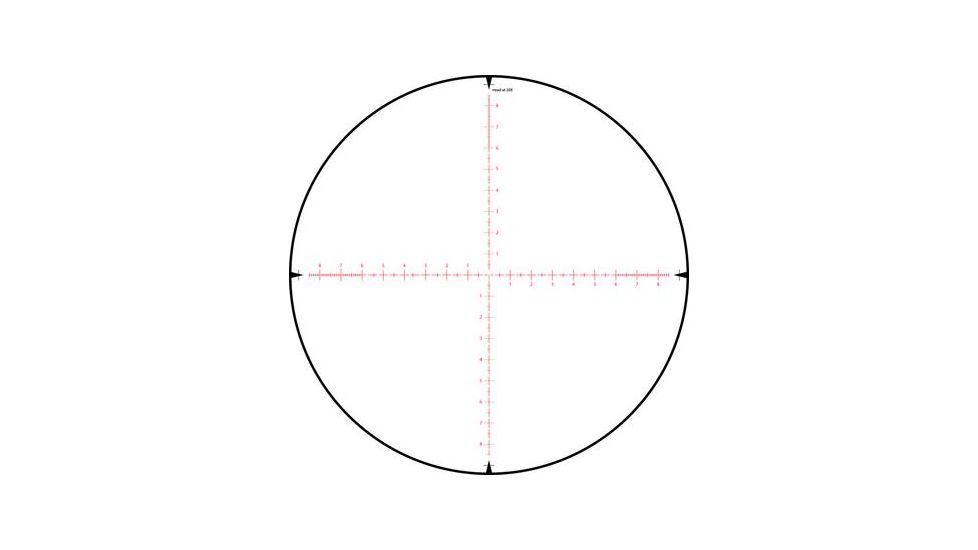

The Uni-Dial 5-30X was designed for the long range target shooter or hunter. With a 56mm objective and 34mm tube, the Uni-Dial 5-30X is a beast at light gathering. The HD Low Dispersion glass lenses produce a bright and crisp sight picture with true color fidelity, even in low light. The Second Focal Plane Mil Reticle clearly indicates every quarter Mil. All glass lenses in the UD530X56 are fully multi-coated with DiamondTuff14 for maximum light transmission. Nitrogen purging and rubber gasket seals guarantee fogproof performance in all temperatures and climates.

WARNING: California`s Proposition 65

Specifications for Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP):

Manufacturer: Hi-Lux Optics
Objective Lens Diameter: 56 mm
Magnification: 5 - 30 x
Tube Diameter: 34 mm
Reticle Focal Plane: Second Focal Plane (SFP)
Exit Pupil: 1.72 - 10.3 mm
Finish: Matte
Field of View, Linear: 1.2 - 7.5 ft at 100 yds
Eye Relief: 3.3 in
Diopter Adjustment Range: -3 - 3 dpt
Color: Black
Weight: 32 oz
Adjustment Click Value: 0.1 Mil Rad
Length: 14.6 in
Adjustment Type: MOA
Parallax: 10 m to Infinity
Illumination Type: LED
Battery Type: CR2032
Width: 4 in
Fabric/Material: Aluminum
Adjustment Range: 85 MOA
Height: 3.5 in
Focus Range: 10 m to Infinity
Lens Material: Glass
Optical Coating: Diamond Tuff14, Fully Multi-Coated
Brightness Settings: 11
Battery Life: 300 hours
Operating Temperature: -20 - 60 Celsius
Weather Resistance: Yes
Water Resistance Level: IP67
Water Resistant Mark: 1 m
Shockproof: Yes
Fogproof: Yes
Battery Quantity: 1
Magnification Type: Variable
Condition: New
W/E Travel at 100 Yds: 85 MOA
Quantity: 1
Attachment Type: Riflescope Ring

Features of Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP)

  • The Uni-Dial 5-30X56 features a wide 5-30X magnification range
  • The scope is housed in a 34mm tube for greater internal adjustment travel
  • The Elevation turret features a toolless adjustable ballistic turret, which can be set for various distances based on your rifle's DOPE

Package Contents:

  • Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP)
  • Flip Up Lens Covers
  • Microfiber Cloth
  • CR2032 Battery

Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP) Orderable Models

List of Orderable Models

  • Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane, Red Reticle, Matte Black, UD530X56-R , MPN: UD530X56-R , UPC: 810194021008 , Code: LW-RS-HLUDRRS-UD530X56-R
  • Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane, Green Reticle, Matte Black, UD530X56 , MPN: UD530X56 , UPC: 810194020995 , Code: LW-RS-HLUDRRS-UD530X56

Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP) Unavailable & Discontinued Models

List of Unorderable Models

  • Open Box, Dealer Demo, Hi-Lux Optics UD 5-30X56 Rifle Scope with Green Reticle, Matte Black, Small, UD530X56 , MPN: UD530X56-DMO , Code: LW-RS-HLUDRRS-UD530X56-DMO
  • Open Box, Dealer Demo, Hi-Lux Optics UD 5-30X56 Rifle Scope with Red Reticle, Matte Black, Small, UD530X56-R , MPN: UD530X56-R-DMO , Code: LW-RS-HLUDRRS-UD530X56-R-DMO
