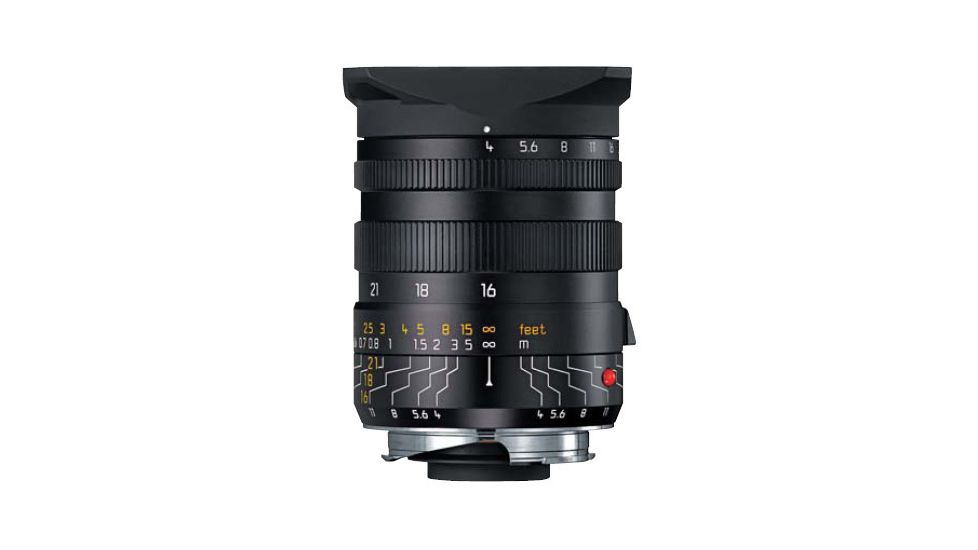

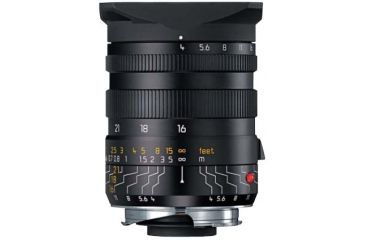

Leica 16-18-21 mm / f4.0 M-Tri-Elmar w/Univ. WA Finder Elmar Camera Lens for M8 Camera 11642

Leica 16-18-21 mm / f4.0 M-Tri-Elmar w/Univ. WA Finder Elmar Camera Lens for M8 Camera 11642
Leica 16-18-21 mm / f4.0 M-Tri-Elmar w/Univ. WA Finder Elmar Camera Lens for M8 Camera 11642
1 of 1 images
Leica 16-18-21 mm / f4.0 M-Tri-Elmar w/Univ. WA Finder Elmar Camera Lens for M8 Camera 11642

Tap Tap to Zoom

Questions & Answers

Code: LE-DA-11642

MPN: 11642

UPC: 799429116422

Product No Longer Available

Product Info for Leica 16-18-21 mm / f4.0 M-Tri-Elmar w/Univ. WA Finder Elmar Camera Lens for M8 Camera 11642

With its impressive angle of view of 107 degrees, the Leica 16-18-21 mm M-Tri-Elmar with WA Finder Elmar Camera Lens for M8 Camera 11642 conquers 16 mm super wide-angle photography in perfect Leica M Camera style. Due to the minimal distortion and barely perceptible field curvature,this Leica Digital Camera Lens can be recommended for highly demanding architecture photography even at the 16 mm setting. Used on the digital M8 camera, it produces the image effect of a 21 - 28 mm lens, still enabling extreme wide-angle views. Leica made he ultra compact shape in this camera lens with two aspherical elements. A new design of the interior on the Digital Camera Lens focuses significantly on the quality in the close-focus range through an adaption of the floating element principle. Brilliant depth of field can therefore be used from a distance of 0.33 m for hyperfocal photography. We can recommend it for use wth Leica Digital M8 Camera and Leica Digital M8.2 RangeFinder Camera without reservation as a top lens, best suited for available light photography.image

Specifications for Leica 16-18-21 mm with Universal Wide Angle Finder Elmar Camera Lens for M8 Camera 11642:

Angle of view (diagonal, horizontal, vertical): for 35 mm (24 x 36 mm):

at 16 mm: 107°, 97°, 74°

at 18 mm: 100°, 90°, 67°

at 21 mm: 92°, 81°, 60°

for digital (18 x 27 mm):

at 16 mm: 90°, 80°, 59°

at 18 mm: 84°, 74°, 53°

at 21 mm: 75°, 65°, 46°, corresponds approx. to a focal length of 21/24/28 mm with 35 mm-format
Optical design: Number of elements / groups: 10/ 7
Distance setting: Focusing range: 0.5 m to Infinity, range from 0.5 to 0.7 m separated by index

Scales: Combined meter/feet graduation with uniform grey figures below 0.7 m

for 35 mm:

at 16 mm: 915 x 1373 mm, approx. 1:38at 18 mm: 833 x 1250 mm, approx. 1:35

at 21 mm: 725 x 1087 mm, approx. 1:30

for digital:

at 16 mm: 688 x 1032 mm, approx. 1:38

at 18 mm: 626 x 939 mm, approx. 1:35

at 21 mm: 545 x 817 mm, approx. 1:30

Highest reproduction ratio: at 0,7 m

at 16 mm: 1:38

at 18 mm: 1:35

at 21 mm: 1:30
Aperture: Setting / Function: Preset, with click-stops, half values available

Lowest value: 22
Bayonet: Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models
Filter (type): Male thread, non-rotating and with stop for filter holder or lens hood
Lens hood: screw-on type lens hood (included in delivery)

filter holder for E67 size filters optionally available
Dimensions and weight: Length: approx. 62/72 mm (with/without lens hood)

Largest diameter: approx. 54 mm (53 x 58 mm with lens hood)

Weight: approx. 335 g

Package Contents:

  • Leica 11642 16-18-21mm Elmar Camera Lens for M8 Camera
