- Gun Make:
- AR Platform
- Color:
- Black
- Base/Mount Type:
- Cantilever Ring Mount
- Tube Diameter:
- 30 mm
- Ring Height:
- 1.4 in, Super High
Code: LU-SCM-78507-182860
MPN: 182860
UPC: 030317034542

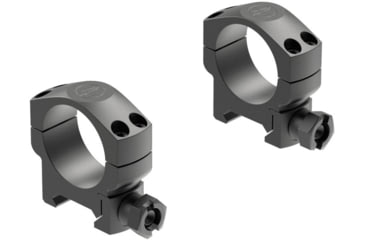

Product Info for Leupold Mark 4 AR 30mm Integrated Mounting System
The Mark 4 AR 30mm Integrated Mounting System (IMS) features a CNC-machined, one-piece aluminum base and ring design. It is made to fit any AR-style rifle with a standard Picatinny (MIL-STD-1913) rail and any scope with a 30mm diameter main tube. This IMS solves the common challenges of mounting a standard riflescope on an AR platform - specifically proper scope height and eye relief.
The Mark 4 AR 30mm Integrated Mounting System (IMS) features a forward cantilever design that pushes your scope out for improved eye relief and a full field of view. It positions the optic 1.4in above the rail (the same height as standard AR iron sights) which makes it faster and more natural to get behind the optic.
Like every Leupold mount, it's built to be as rugged and dependable as the Leupold optics it holds. It’s guaranteed to perform for life, this is the link between scope and rifle you can trust in all conditions.
Specifications for Leupold Mark 4 AR 30mm Integrated Mounting System:
| Manufacturer: | Leupold |
| Fabric/Material: | Aluminum |
| Offset: | 1.75 in |
| Gun Make: | AR Platform |
| Color: | Black |
| Distance Between Rings: | 3.46 in |
| Base/Mount Type: | Cantilever Ring Mount |
| Tube Diameter: | 30 mm |
| Ring Height: | 1.4 in, Super High |
| Length: | 5.43 in |
| Weight: | 6.05 oz |
| Width: | 1.77 in |
| Ring Top Torque: | 28 in-lbs |
Package Contents:
- Leupold Mark 4 AR 30mm Integrated Mounting System
Leupold Mark 4 AR 30mm Integrated Mounting System Orderable Models
List of Orderable Models
- Leupold Mark 4 AR 30mm Integrated Mounting System, Black, 182860 , MPN: 182860 , UPC: 030317034542 , Code: LU-SCM-78507-182860
