Levenhuk MS3 Mechanical Stage for Microscopes 71786

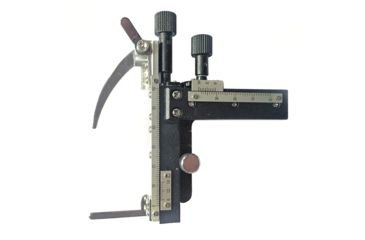

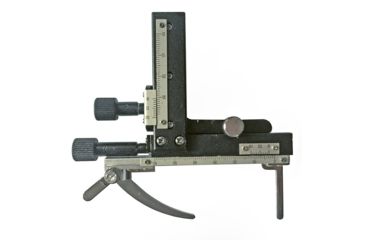

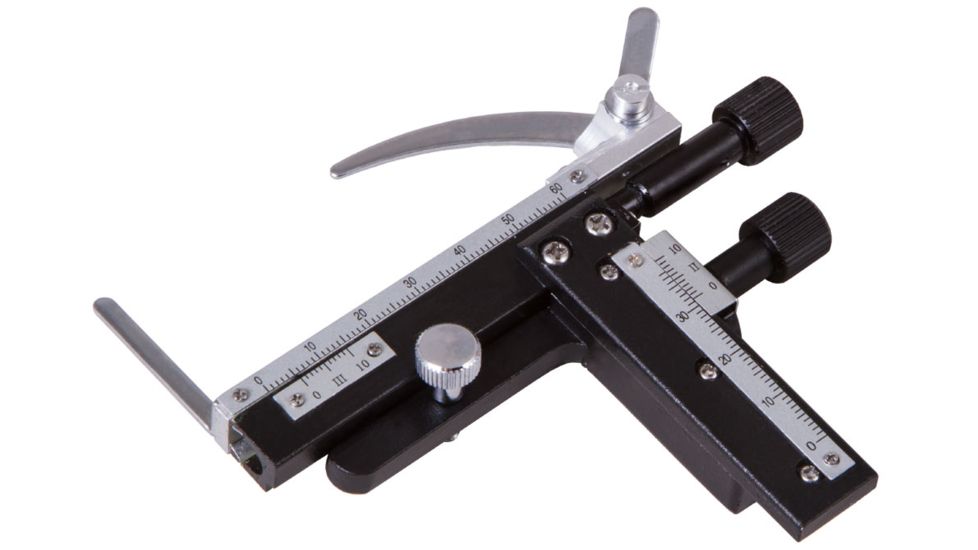

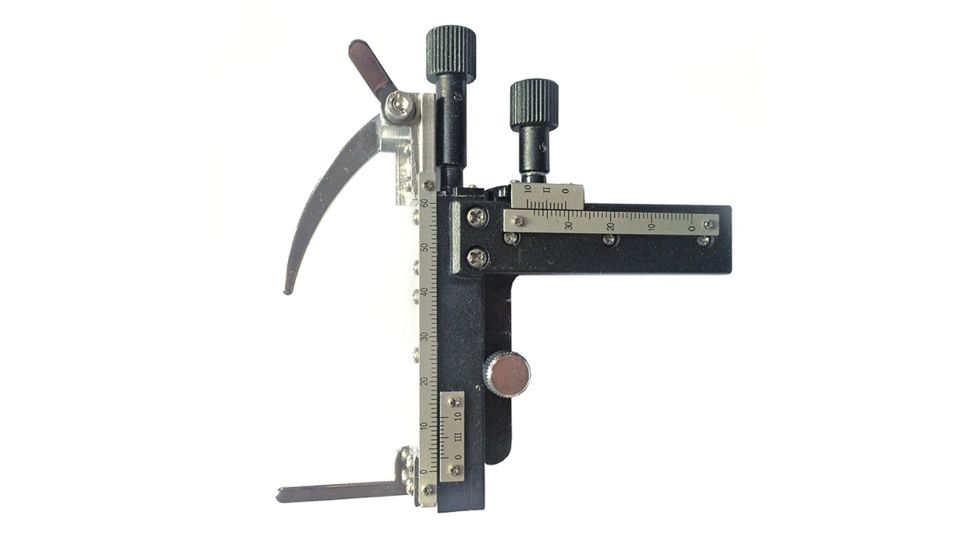

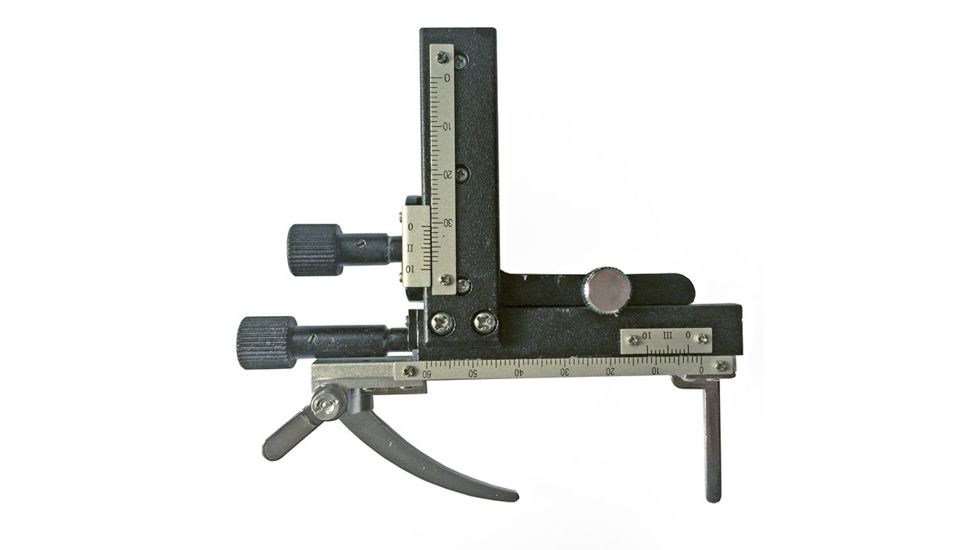

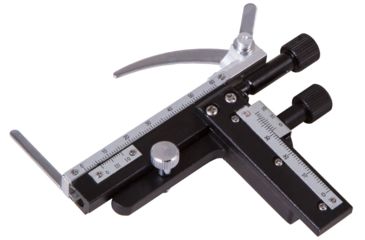

Levenhuk MS3 Mechanical Scale. Attachable scale to control slide movements along - X and Y axes. Features coordinate and nonius scales

Levenhuk Mechanical Scale MS3 is designed to move microscope slides on the stage and determine their coordinates precisely. You can move slides along X axis (left-right) and Y axis (forwards-backwards). The measuring scales and the auxiliary nonius scale help determine the exact coordinates of the slide's areas.

The Levenhuk MS3 Mechanical Scale is a removable accessory. It is easily and quickly installed on the stage. To install it, just unscrew the slide holders and fix the scale assembly with a stage screw. The scale is compatible with Levenhuk Rainbow PLUS, S NG microscopes. Installing the scale onto plastic stages is not recommended since they are not sturdy enough and could be damaged.

Specifications. Movement range along X axis, mm: 0-57. Movement range along Y axis, mm: 0-30. Measuring scale division value, mm: 1. Distance between the dowel pins, mm: 35±0,1. Distance between the dowel pins and the stage screw, mm: 17,5±0,1. Dowel pin diameter, mm: 3. Stage screw thread size: M4. Scale material: metal. Handle material: plastic

Movement range along X axis, mm=0-57; Movement range along Y axis, mm=0-30; Measuring scale division value, mm=1; Distance between the dowel pins, mm=35±0,1; Distance between the dowel pins and the stage screw, mm=17,5±0,1; Dowel pin diameter, mm=3; Stage screw thread size=M4; Scale material=metal; Handle material=plastic

Features of Levenhuk MS3 Mechanical Stage for Microscopes

• Movement range along X axis, mm=057; Movement range along Y axis, mm=030; Measuring scale division value, mm=1; Distance between the dowel pins, mm=350,1; Distance between the dowel pins and the stage screw, mm=17,50,1; Dowel pin diameter, mm=3; Stage screw thread size=M4; Scale material=metal; Handle material=plastic

Package Contents:

• Levenhuk MS3 Mechanical Stage for Microscopes
