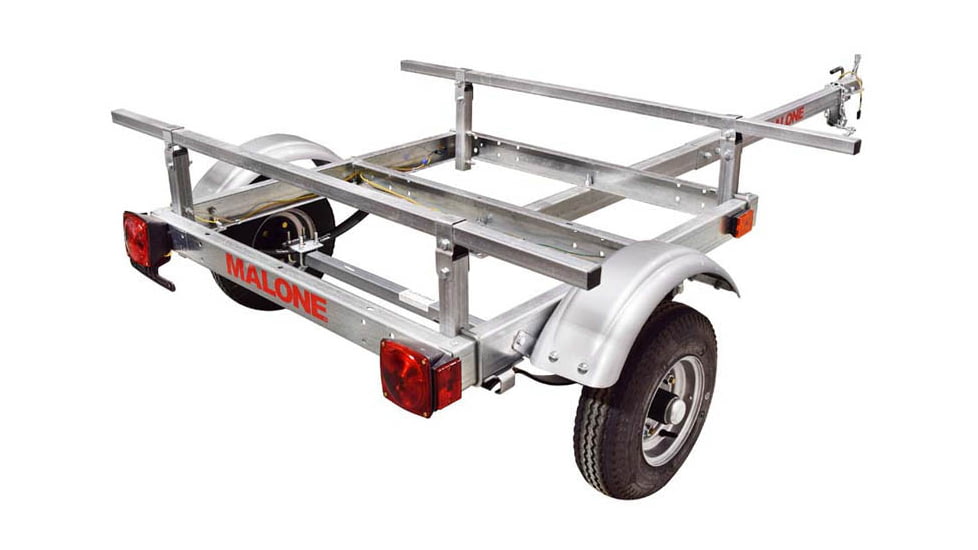

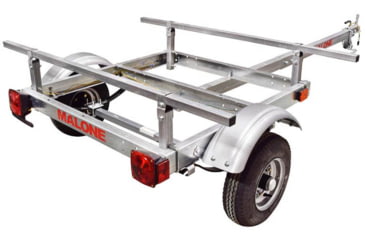

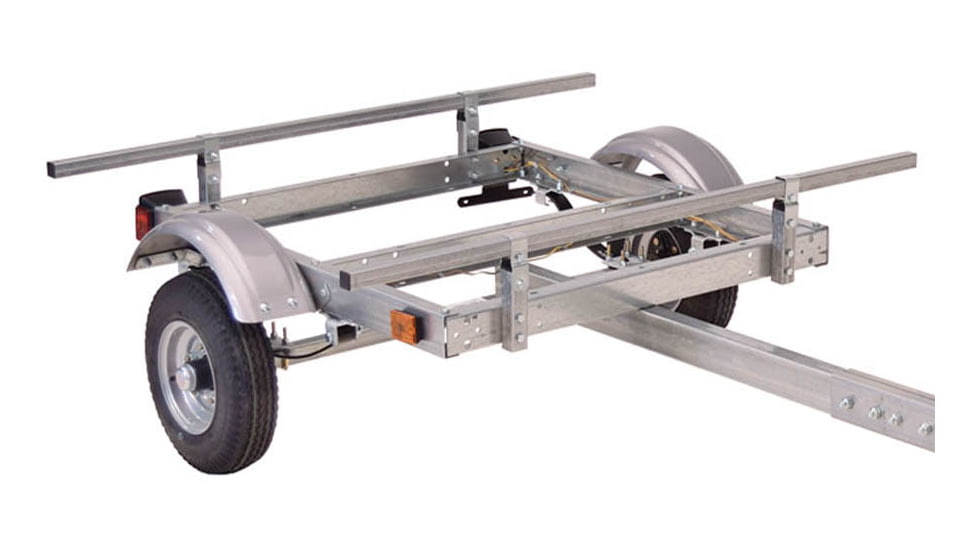

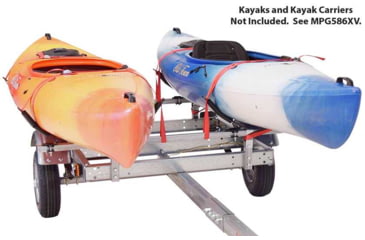

Malone Auto Racks EcoLight Sport Trailer MPG585

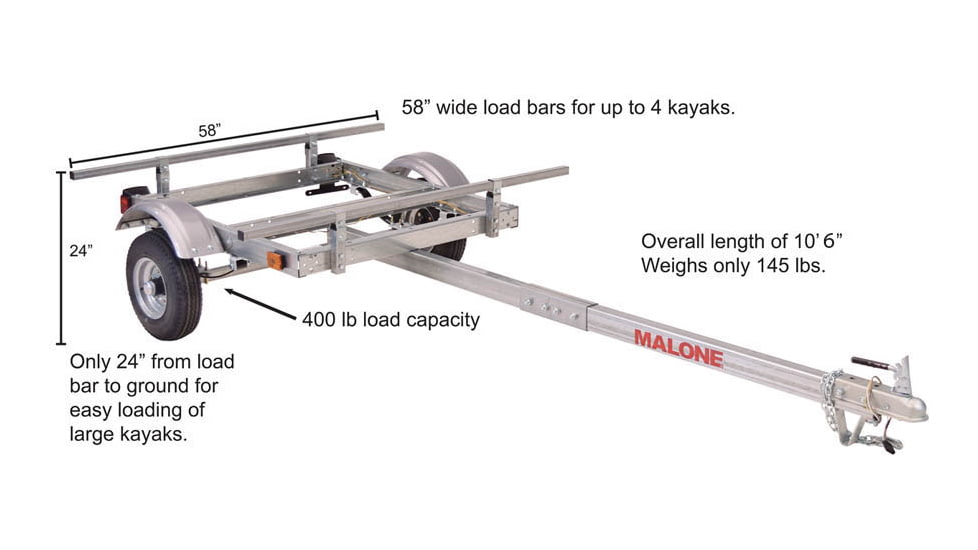

The EcoLight is our most affordable line of kayak trailers. Each unit is proudly designed and built with high grade galvanized steel for years of use. These trailers can safely travel at most posted speed limits while transporting loads up to 400 lbs. Features a reinforced extra-long tongue, 58in wide steel load bars, molded fenders, 8in high-speed tires, powder coated rims and a 2in receiver with lift handle.

This trailer serves as the base frame for the EcoLight Packages and is DOT and Transport Canada certified. All parts and workmanship are guaranteed with a Five Year Limited Warranty. Assembles in 3-5 hours with common shop tools. Detailed assembly instructions included.

Features of Malone Auto Racks EcoLight Sport Trailer

• Marine grade galvanized frame
• DOT approved submersible incandescent lighting
• 8in - five lug high-speed powder coated wheels
• Injection molded fenders
• 58in coated steel load bars
• 2pc extended tongue
• Flat four wire harness
• Tongue skid plate
• Leaf spring suspension
• Galvanized heavy duty axle
• Five Year Limited Warranty
• Width: 58in (55in without cross bars)
• Frame Width Assembled (Without fenders): 40in
• Length: 10ft 9in
• Weight: 145 lb. (Without accessories)
• Capacity: 14ft canoe or kayak
• Frame: Marine grade galvanized steel
• Required Ball Size for Vehicle Attachment: 2in
• Mounting Height for Ball from Ground: 14in
• Wheel Specifications: 8in Diameter; Rated to 70 MPH
• Tire Specifications: 4.80 / 4.00-8in, Load Range B, (785 LB)
• Recommended Tire Pressure: 40 PSI, 90 PSI Max
• Tongue Weight (Unloaded): 12 lb
• Cross Bar Spread: 38.5in (Fixed)
• Height of Cross Bars from Ground: 26in

Package Contents:

• Malone Auto Racks EcoLight Sport Trailer
• 2 Wheels & Tires
• 2pc Extended Tongue
• DOT Approved Lighting & Bearings
• Pre-Tested Electrical System
• Pre-Fitted Chassis Components
• Instruction Manual & Registration Documentation
