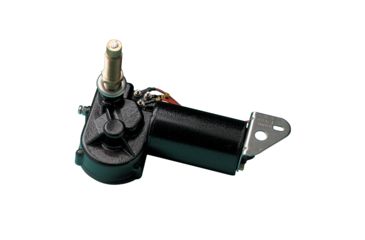

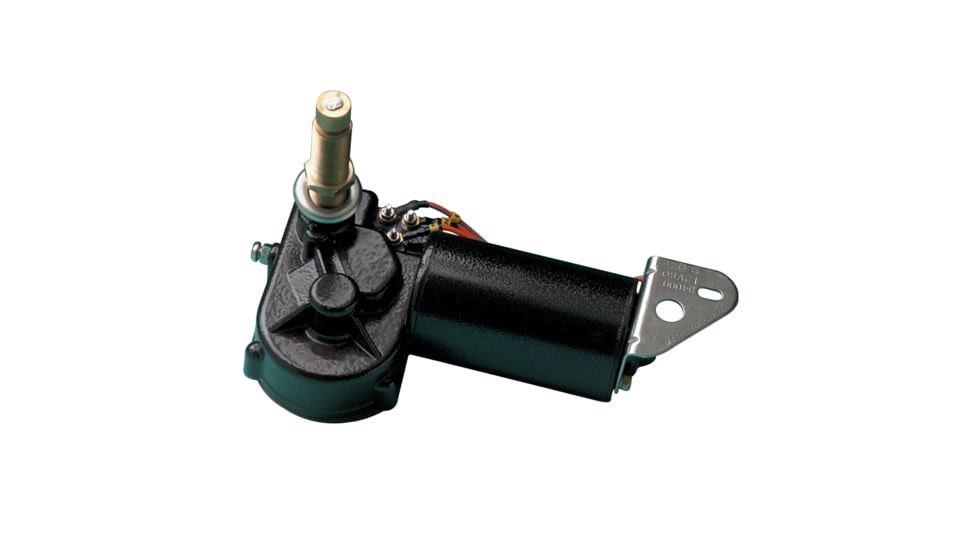

Product Info for Marinco Wiper Motor MRV 12V 2.5" Shaft
The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less. Includes stainless steel fasteners and mounting brackets. This heavy-duty two-speed motor can be operated as one speed.
Features/Specifications:
Economical - an inexpensive alternative to Corrosion-resistant casing, Heavy-duty motor with right angle drive, Two-speed motor, can be operated as one speed, Solid brass knurled drive nut with brass and stainless steel drive shaft, Adjustable right or left self parking, coast to park
Features of Marinco Wiper Motor MRV 12V 2.5" Shaft
- Factory pre-set sweep of 80 or 110 degrees adjustable to 45 60 80 or 110 degrees
- 0.625" diameter shaft (16 mm)
- Available in 3 shaft lengths: 1.5" 2.5" and 3.5" (includes 0.5" length of knurled arm fitting)
- Corrosion-resistant casing
- Heavy-duty motor with right angle drive
- Two-speed motor can be operated as one speed
- Solid brass knurled drive nut with brass and stainless steel drive shaft
- Adjustable right or left self parking coast to park
- Retail version includes 5 amp fuse and holder
- Stainless steel fasteners and mounting bracket
- Use with three-position switch (not included)
- Compact size - 7.625" L x 4" W x 2" D
- Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
- Stall current: 11.5 to 13.0 amps
- No load current: 0.5 to 1.2 amps
Package Contents:
- Marinco Wiper Motor MRV 12V 2.5" Shaft
Related Products to Marinco Wiper Motor MRV 12V 2.5" Shaft
Marinco Wiper Motor MRV 12V 2.5" Shaft Unavailable & Discontinued Models
List of Unorderable Models
- Marinco Wiper Motor MRV 12V 2.5" Shaft - 80, 34000 , MPN: 34000 , UPC: 035028340005 , Code: 35B-BMA-CWR17707-34000
