MDT LRA S90 Bracket for the Send iT MV3 & Spuhr Mounts 107203-BLK Color: Black, Fabric/Material: Aluminum, 13% Off w/ Free S&H

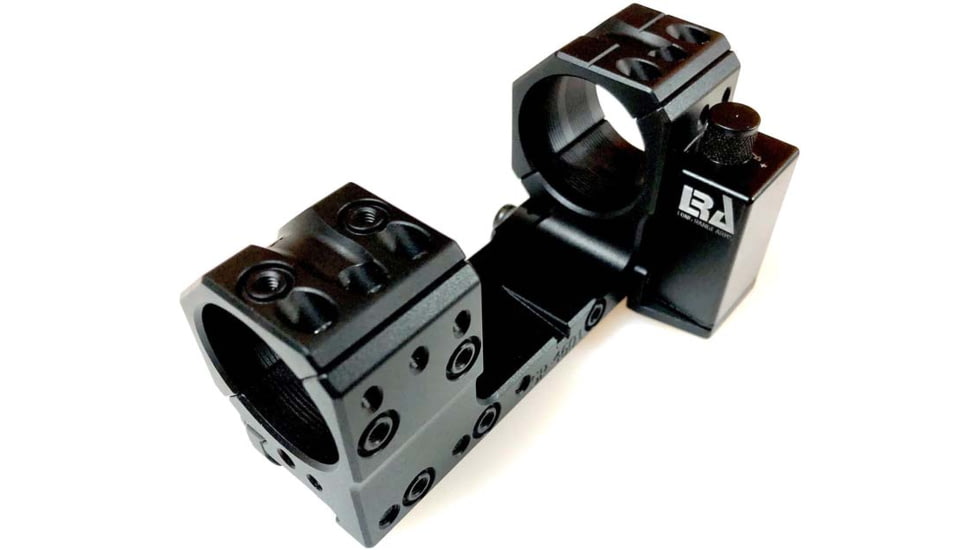

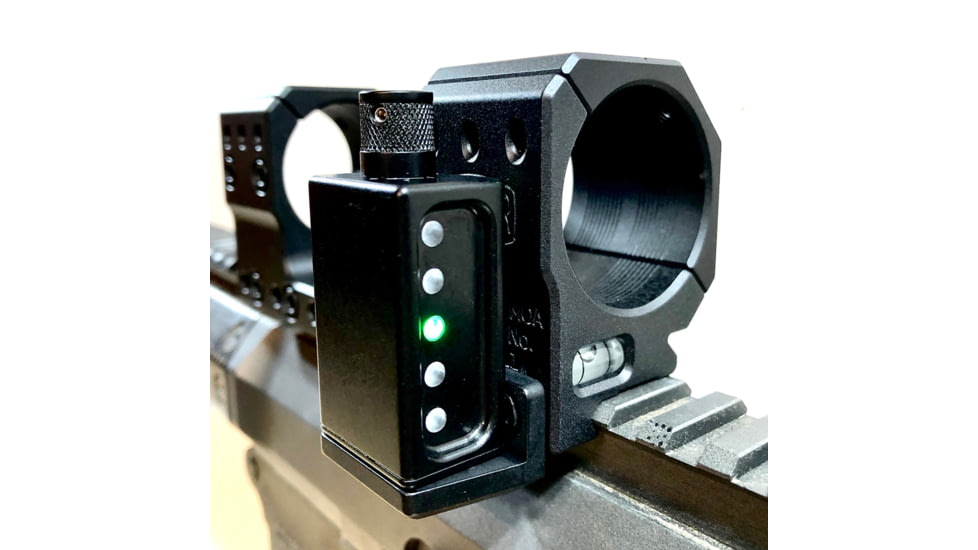

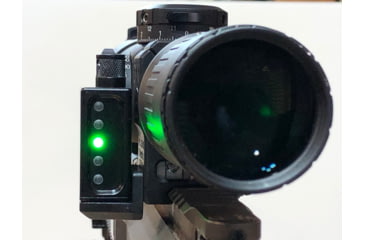

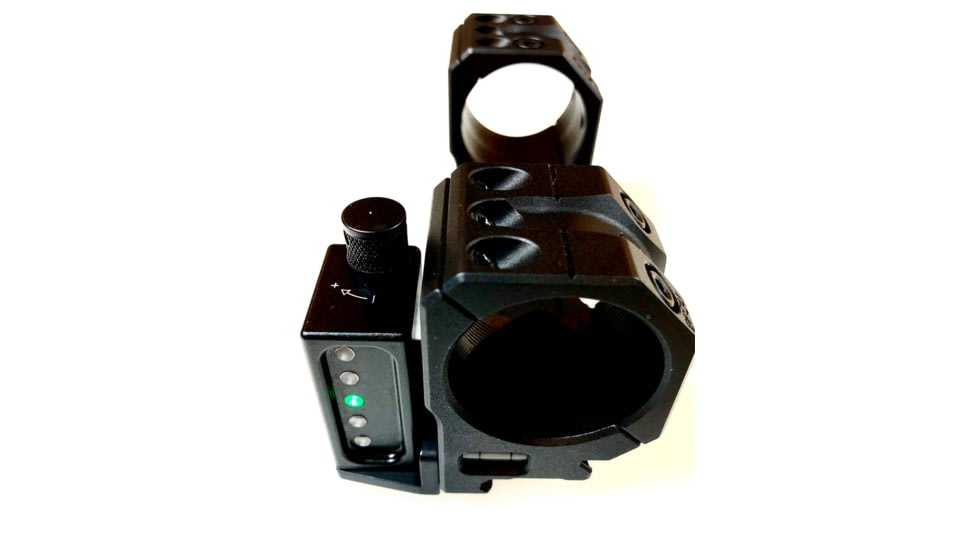

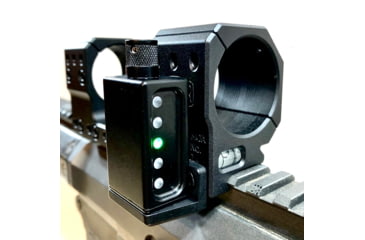

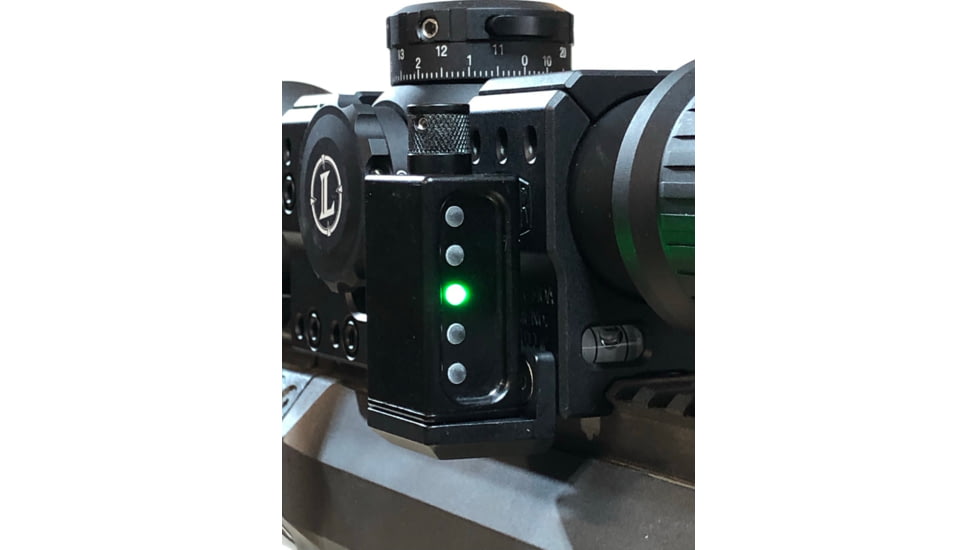

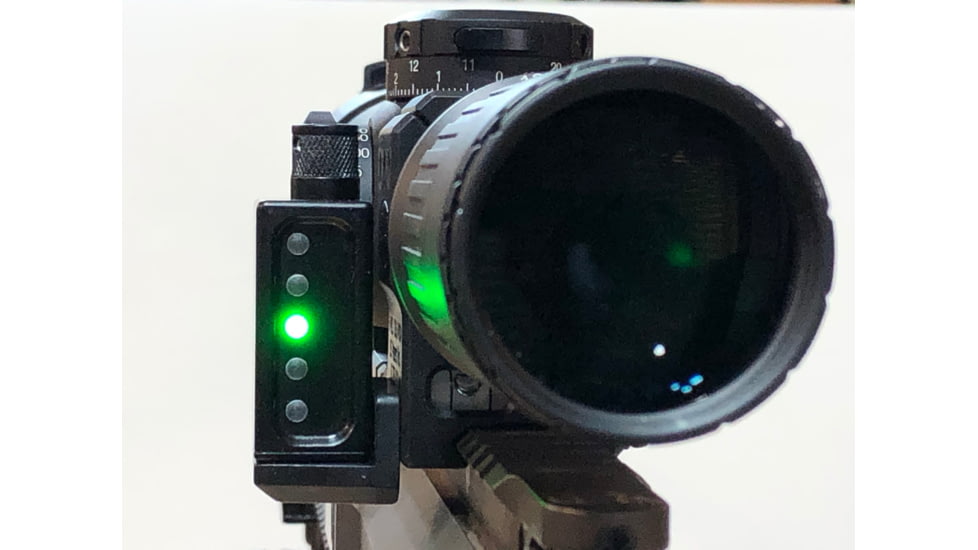

Send iT MV3 Level sold separately. LRA S90 Bracket Allows the Send iT MV3 to be mounted directly to Spuhrs SP, SA, SS, and ST models in the vertical Position.

Screw lengths MUST be checked PRIOR to attaching the mounts. In some applications the screw can bottom out against the scope tube or damage other components if the screw length is excessive or the wrong size/thread pitch is used. YOU are RESPONSIBLE to check the length and size of screws and verify interferences before final assembly. LRA is not liable for damage to our products or the products they are being mounted or attached to.

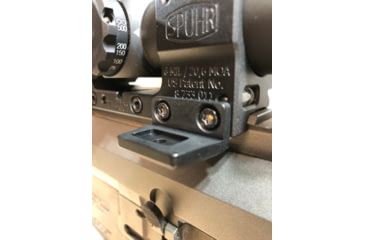

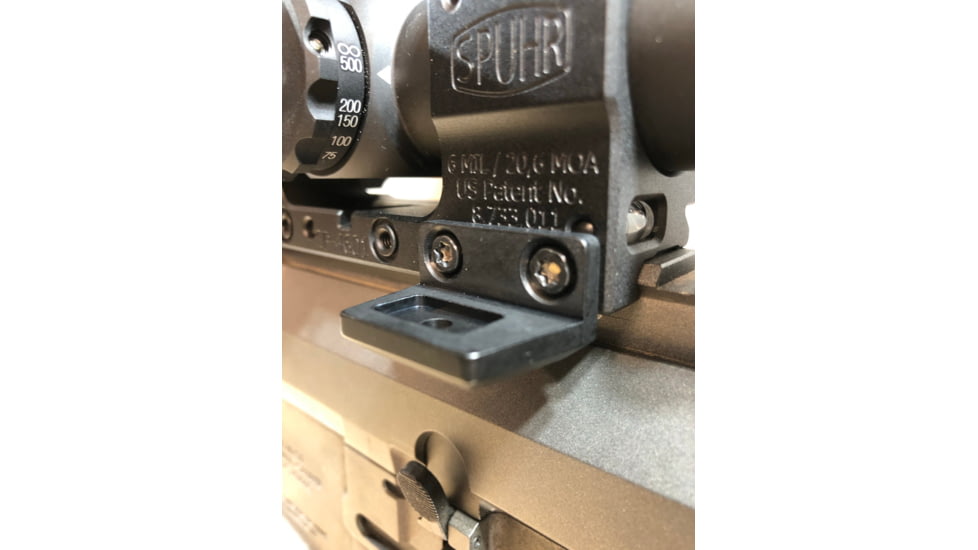

Step 1- Attach the LRA S90 to the Spuhr mount using the (2) supplied 4mm x 10mm flat head screws using either an IP20 or T20 Torx Plus or Torx drive. Torque both screws to 20-25 in-lbs.

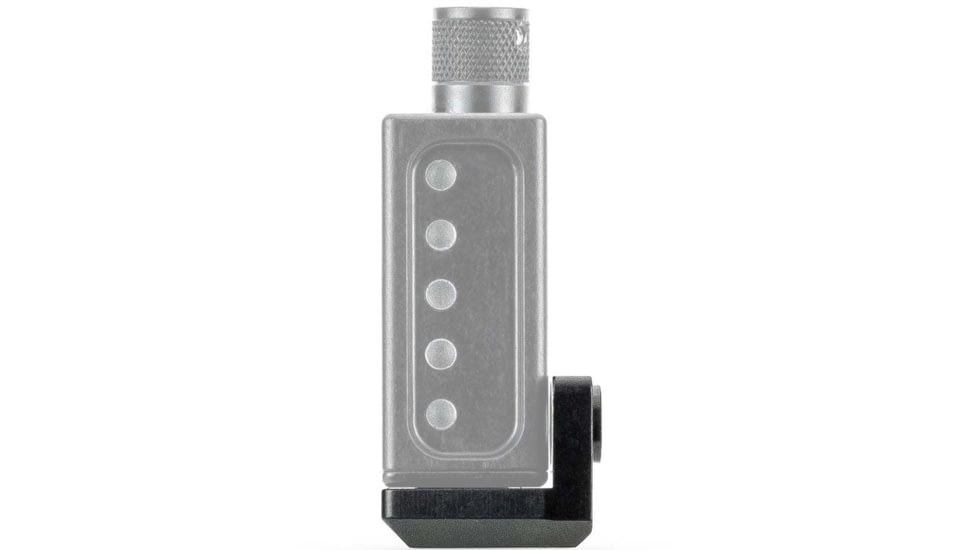

Step 2- attach the Send iT MV3 to the LRA S90 bracket. Follow the instructions included with the Send iT MV3 for removal of the Picatinny mount (link below). Carefully fit the Send iT into the pocket of the LRA S90 bracket by hand and confirm its sitting flat and fully seated BEFORE installing the screw. Install and torque the (1) supplied # 8-32 Flat head screw to 30-34 in-lbs using a 3/32 Allen drive.

Specifications for MDT LRA S90 Bracket for the Send iT MV3 & Spuhr Mounts:

Package Contents:

• MDT LRA S90 Bracket for the Send iT MV3 & Spuhr Mounts

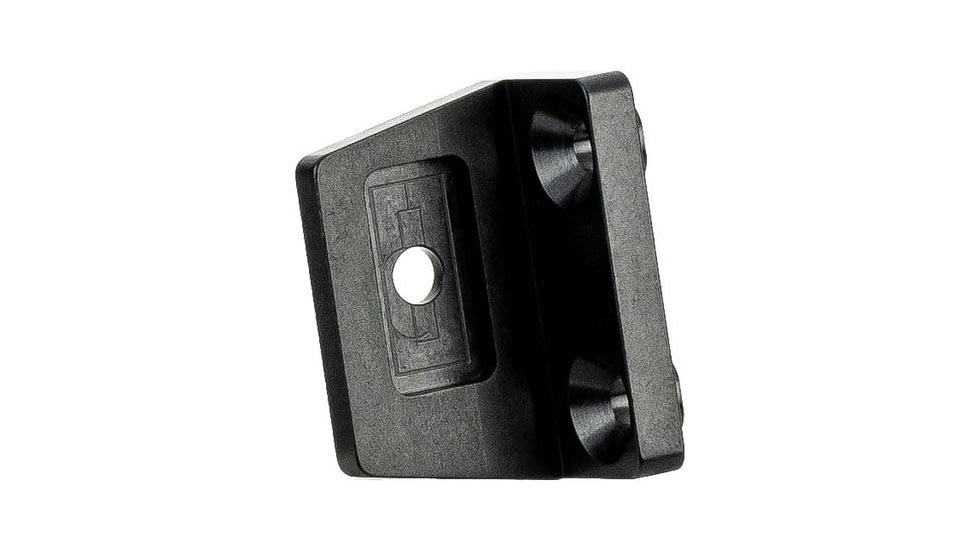

• LRA S90 Bracket
• 8-32 screw (1)
• 4mm x 10mm screws (2)
