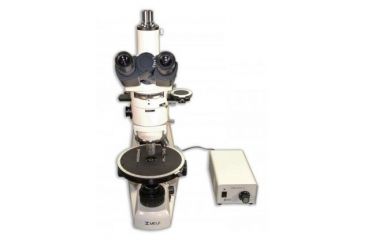

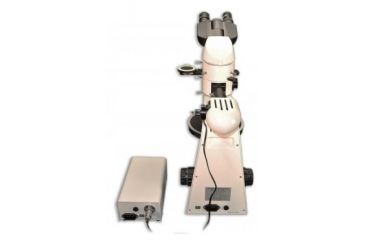

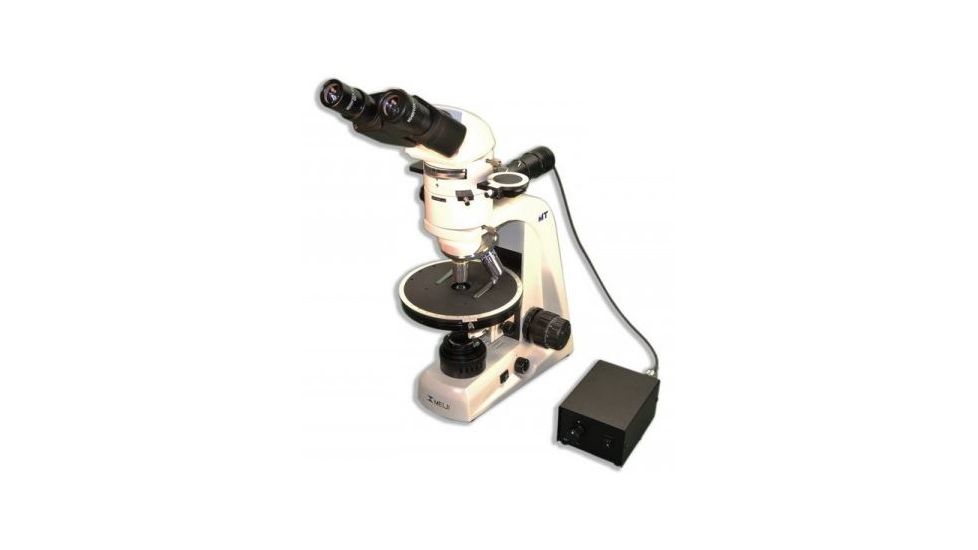

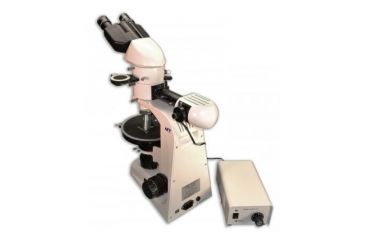

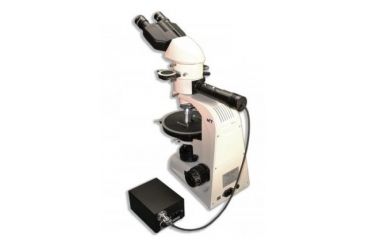

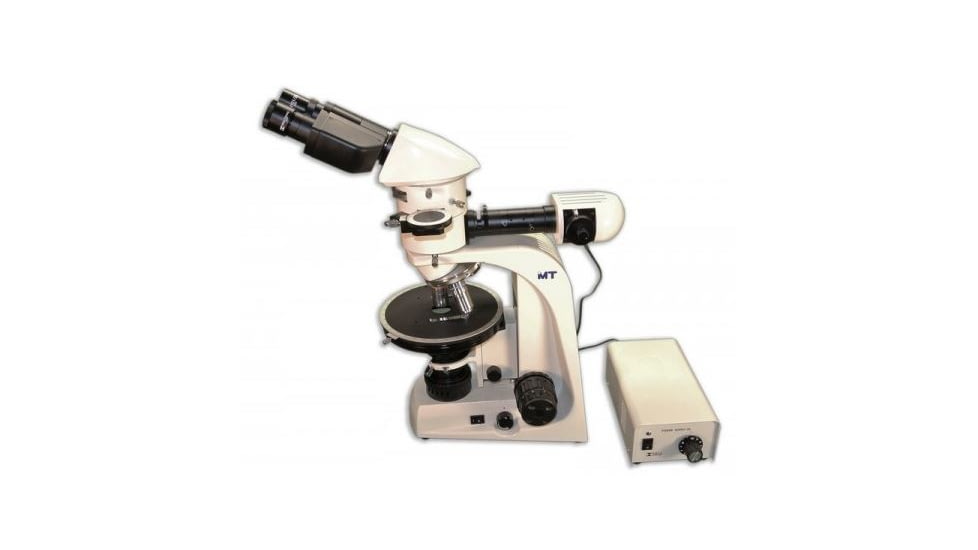

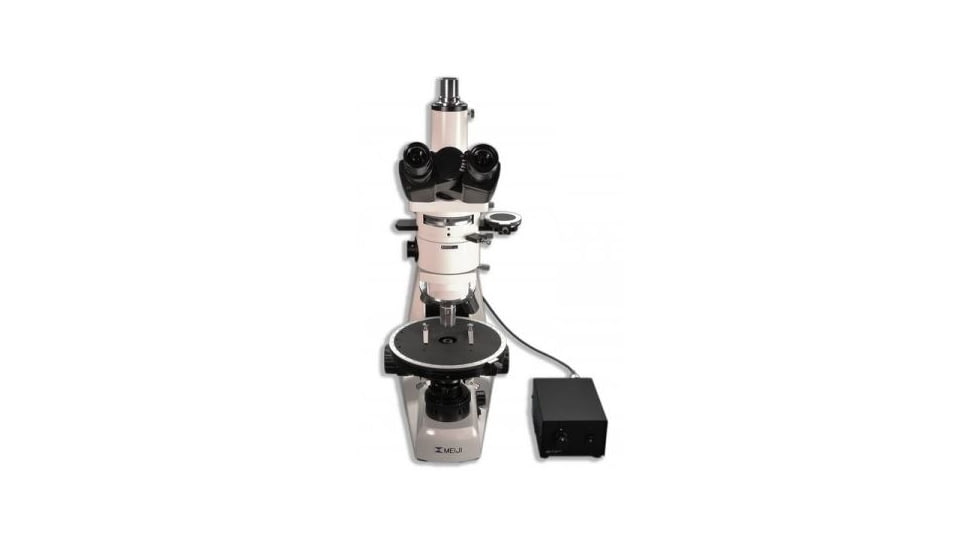

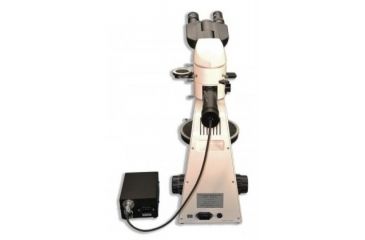

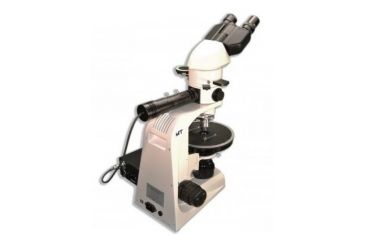

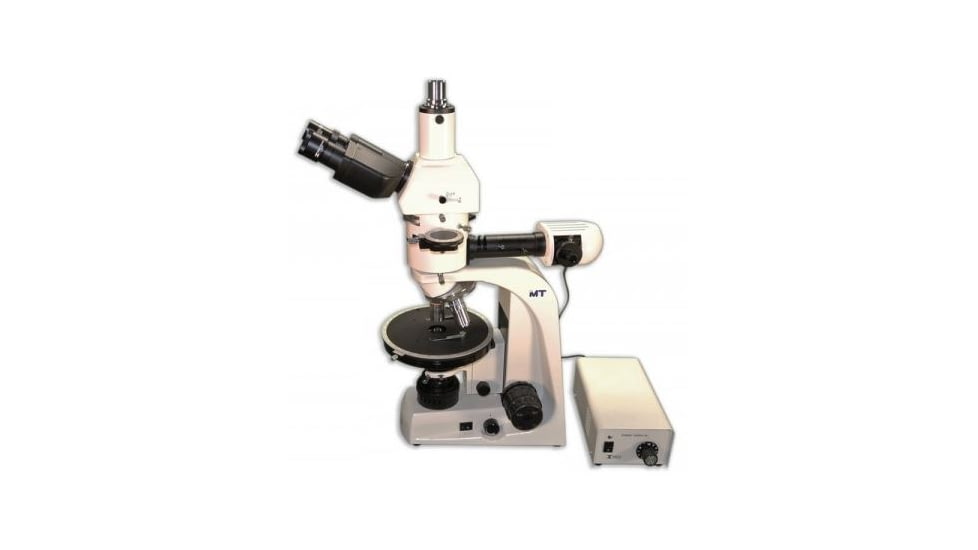

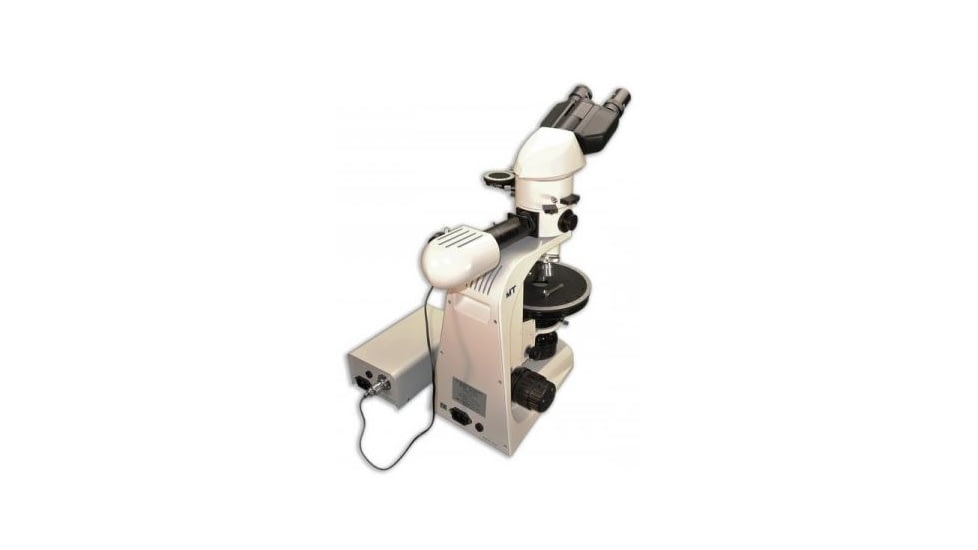

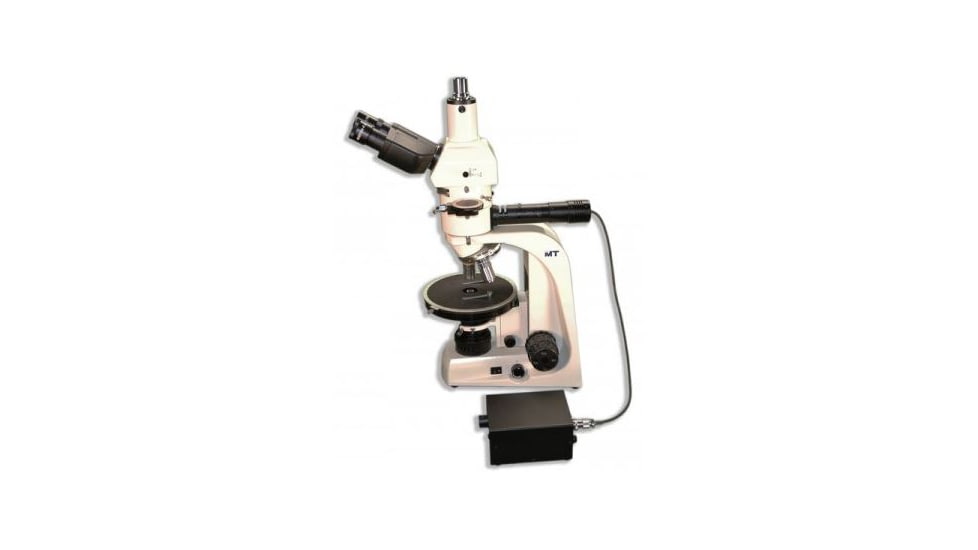

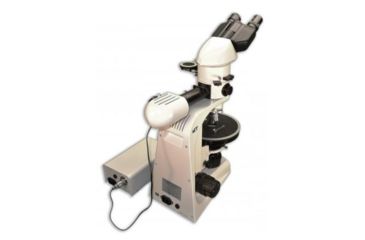

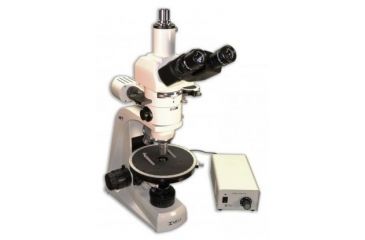

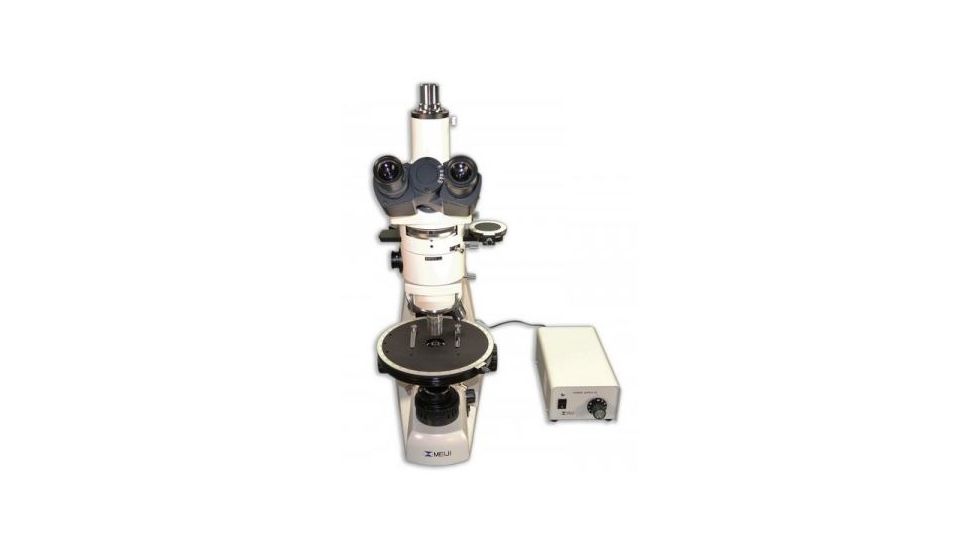

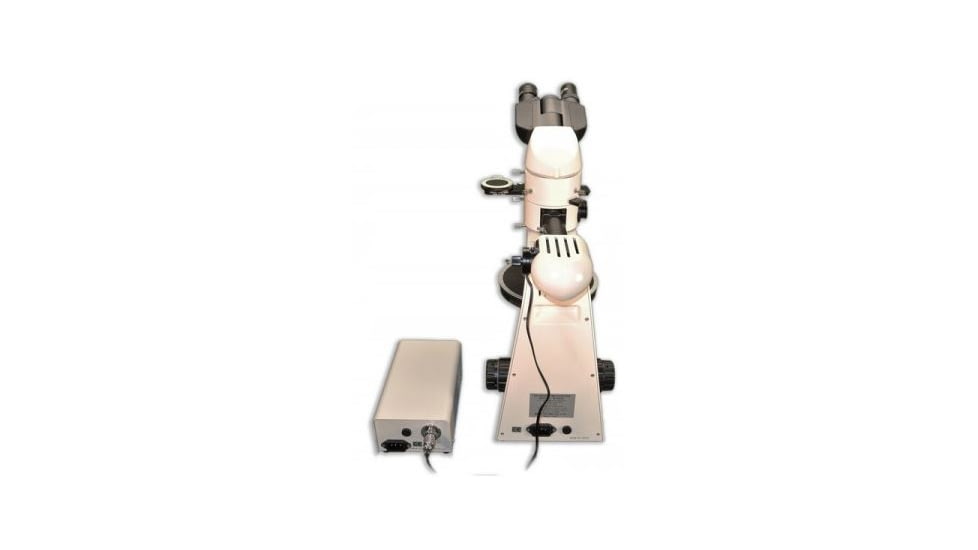

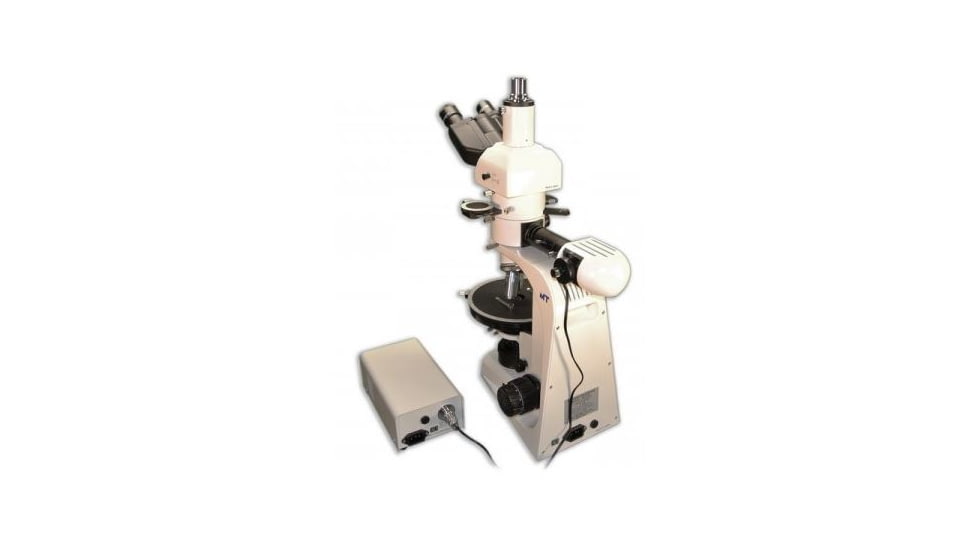

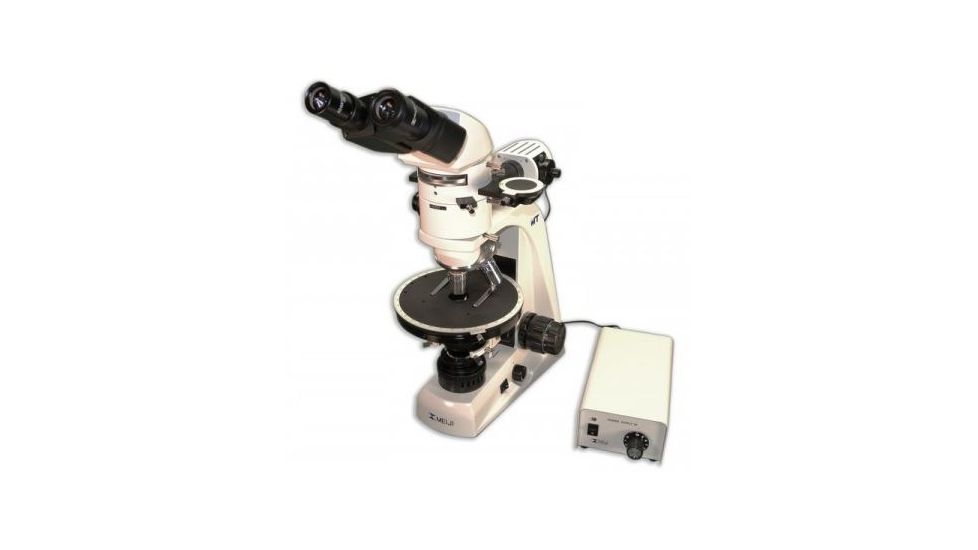

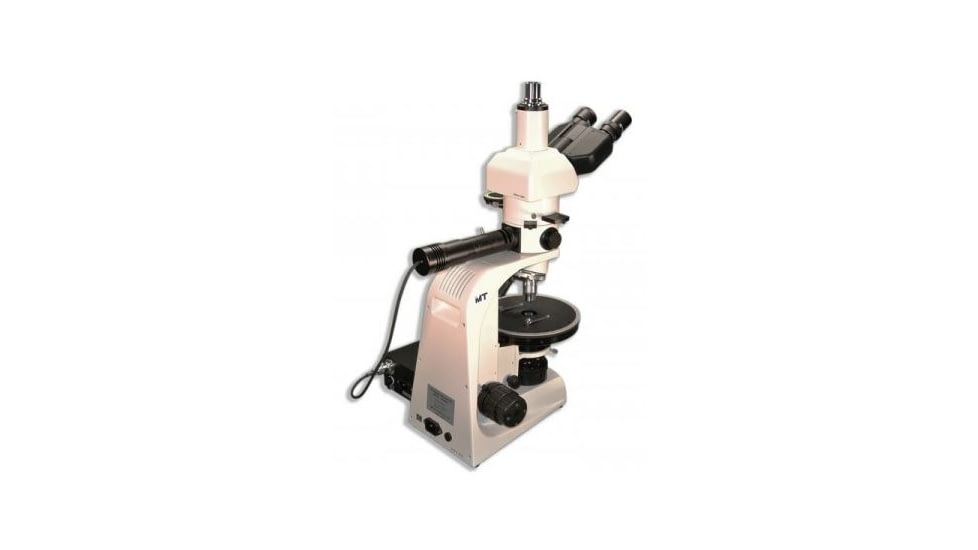

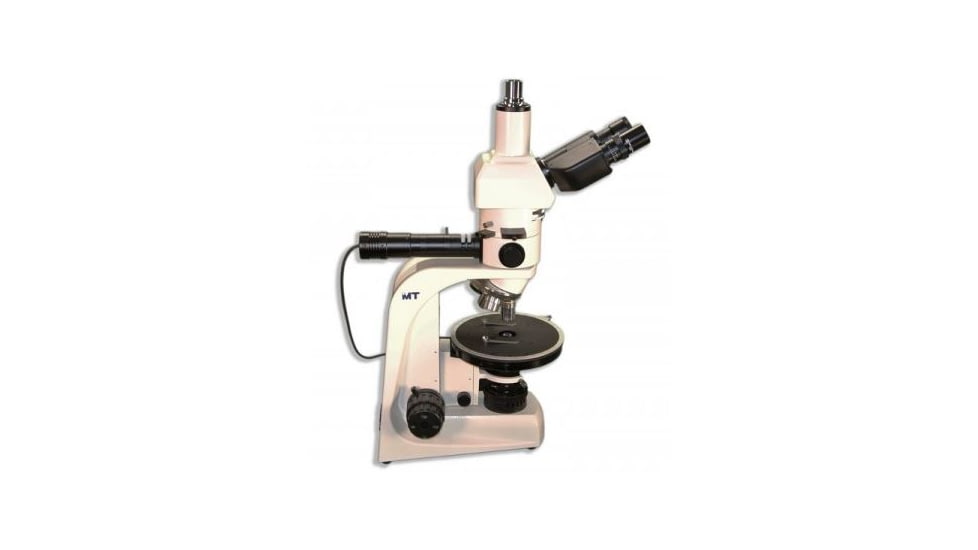

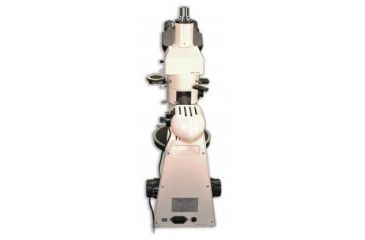

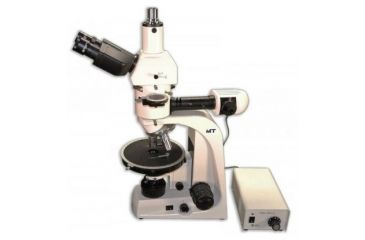

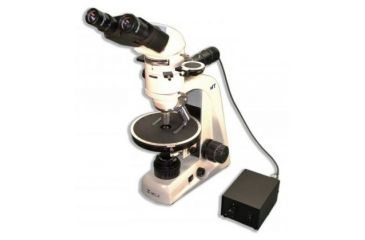

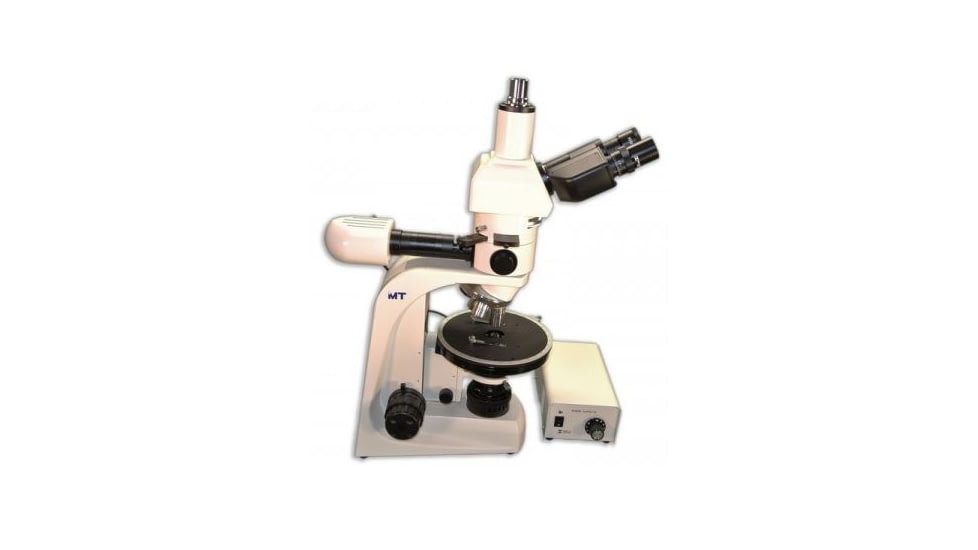

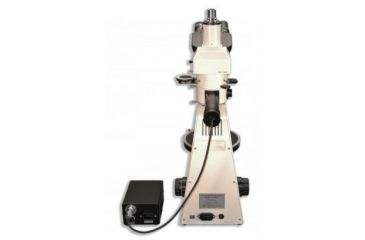

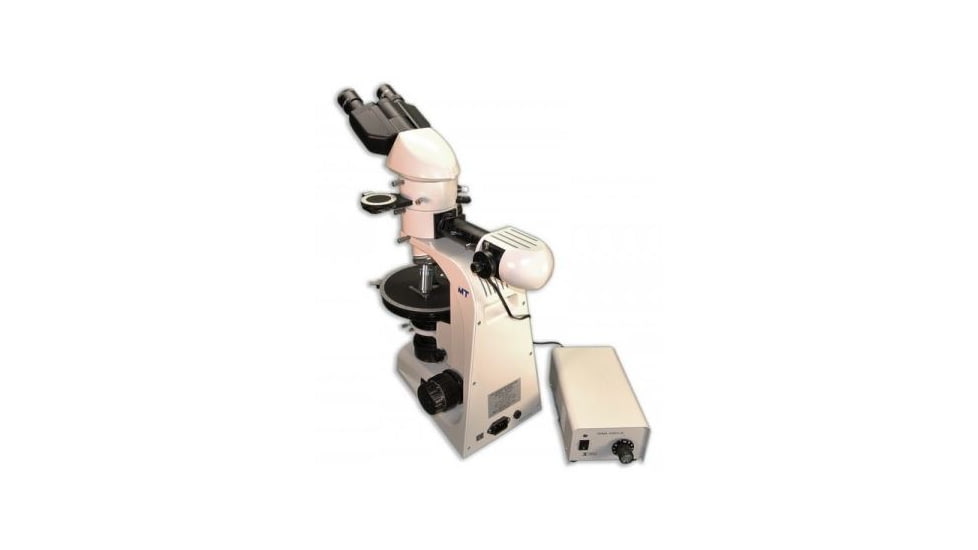

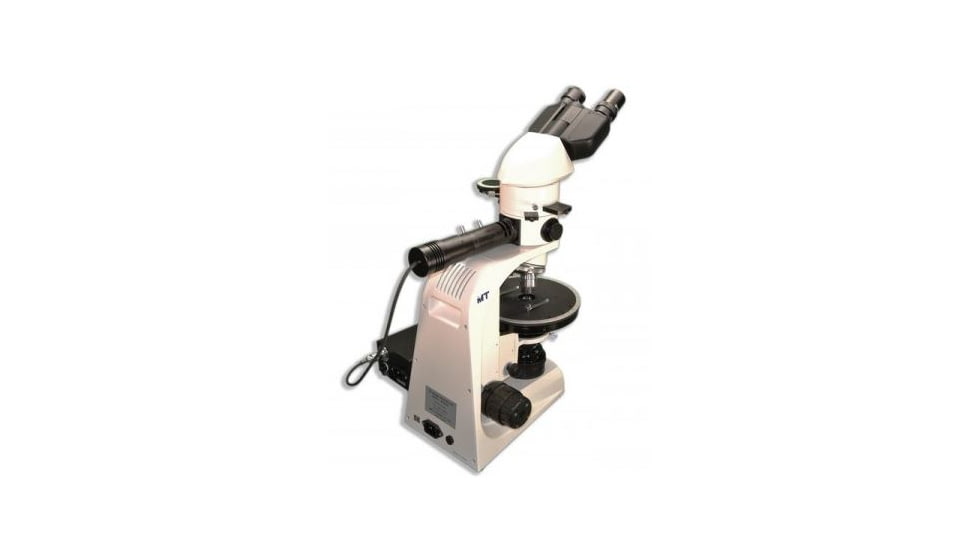

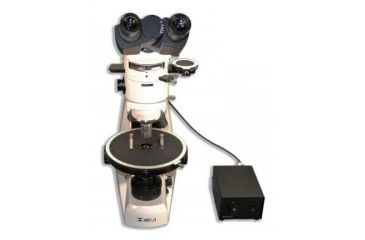

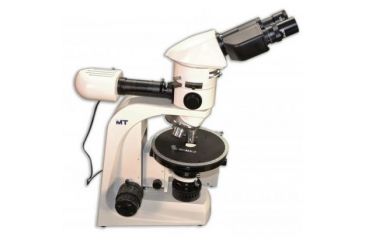

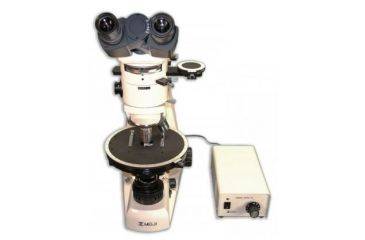

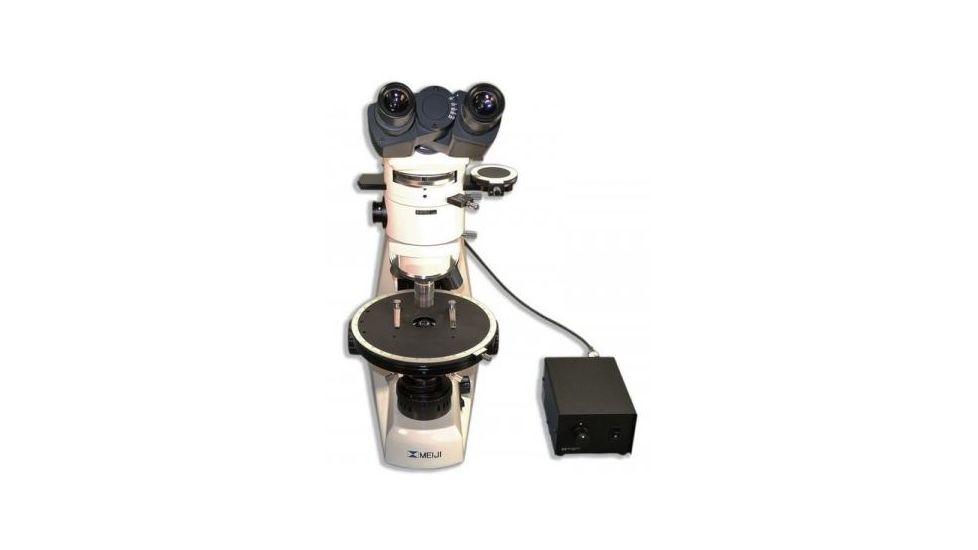

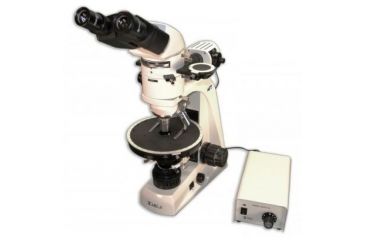

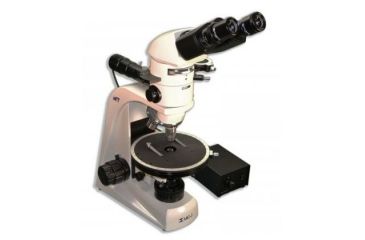

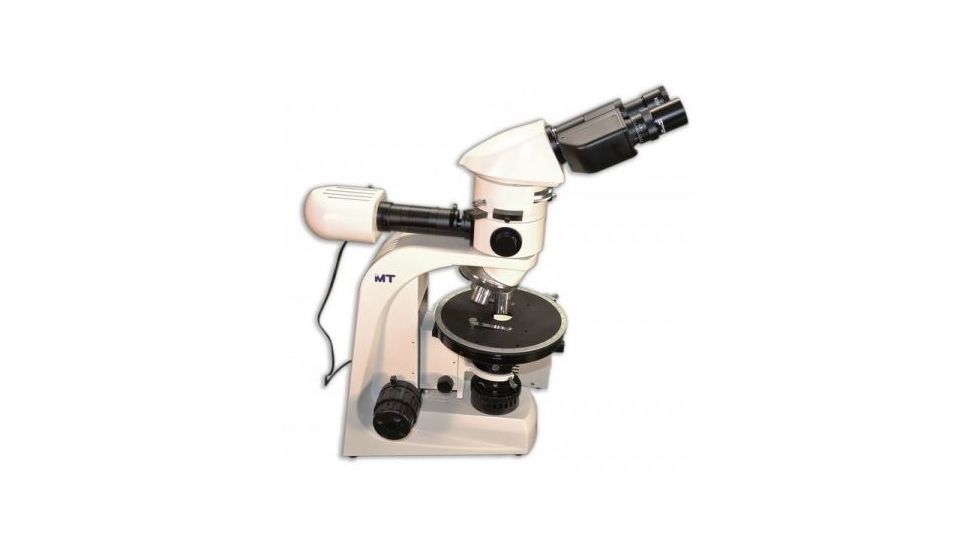

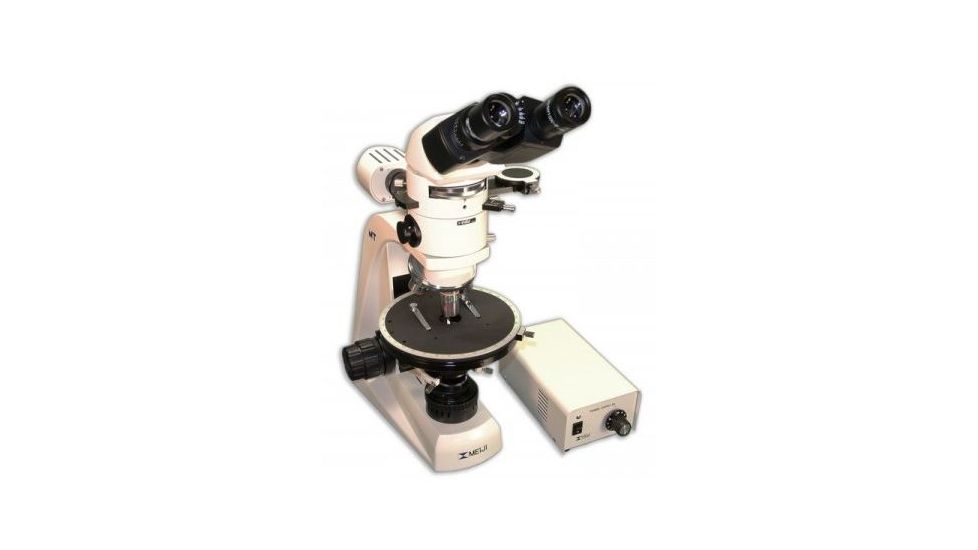

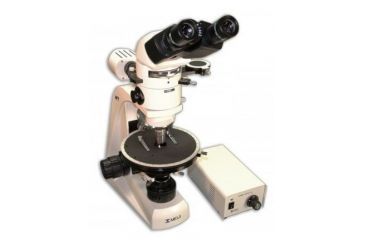

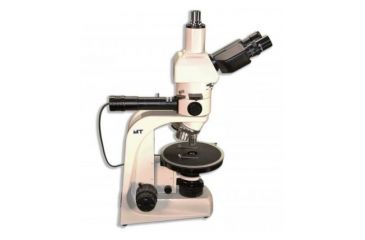

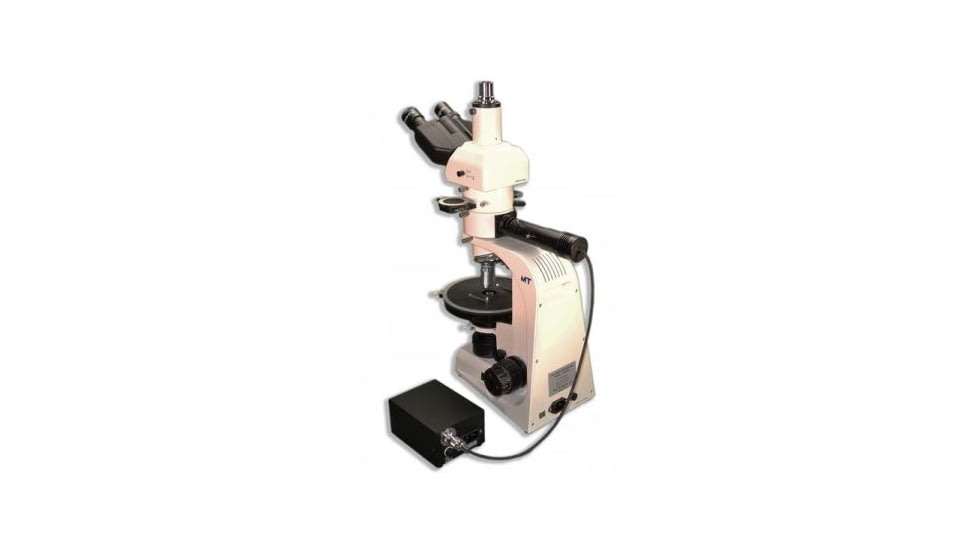

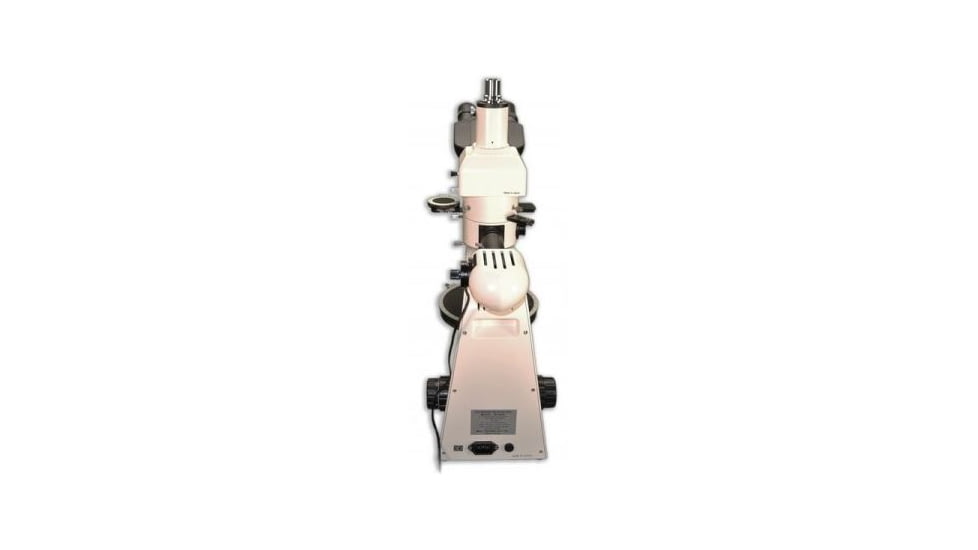

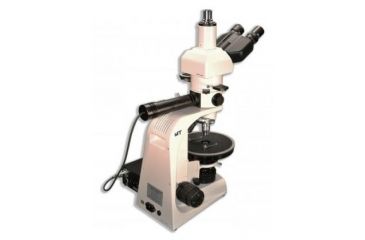

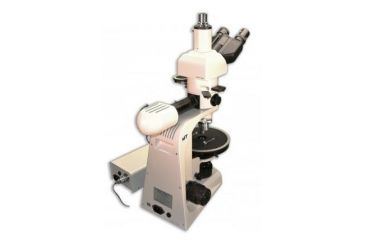

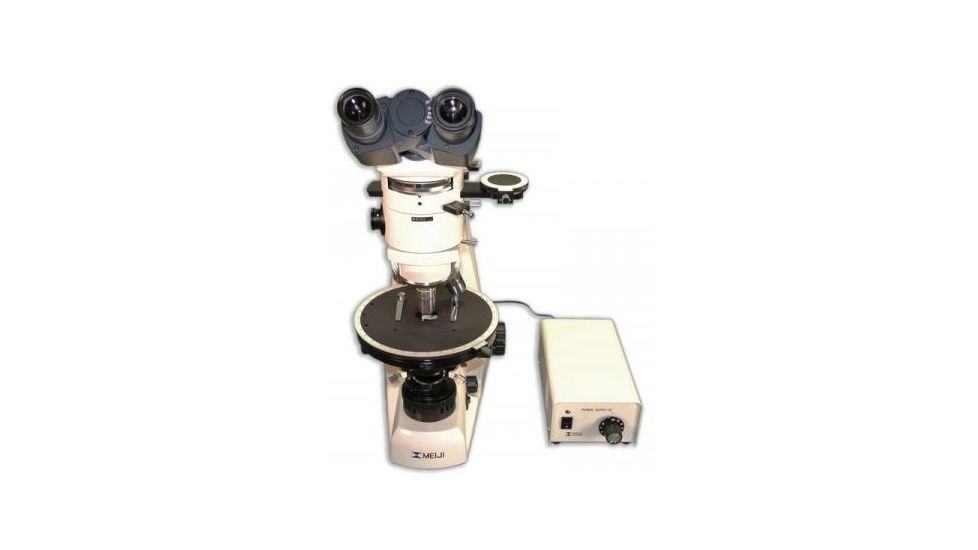

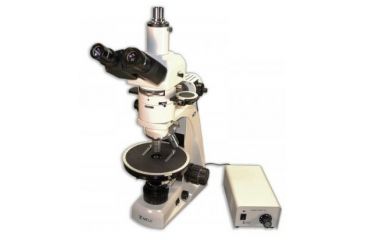

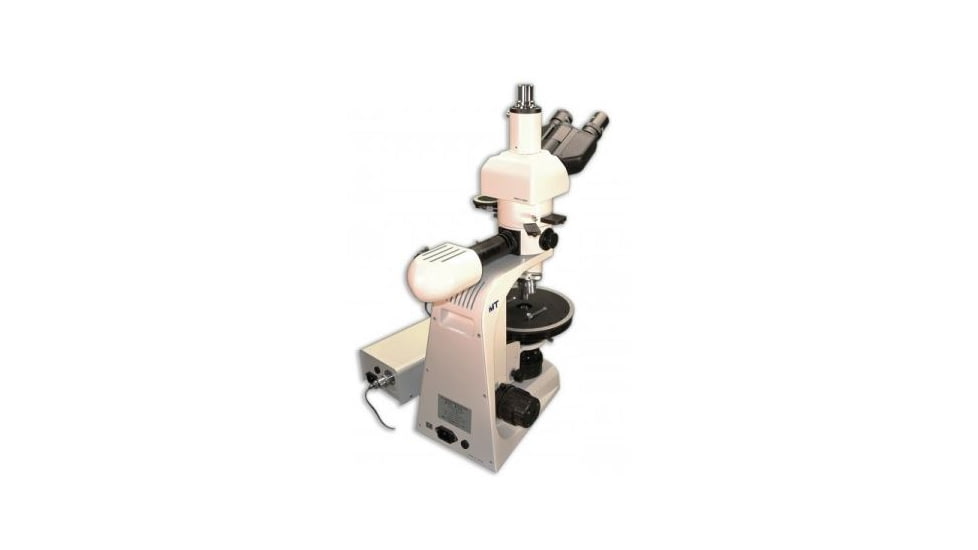

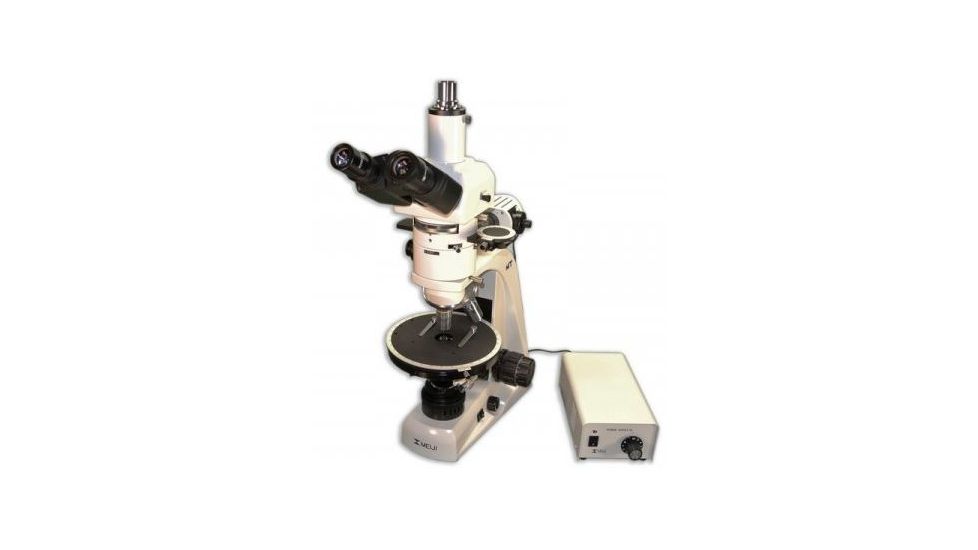

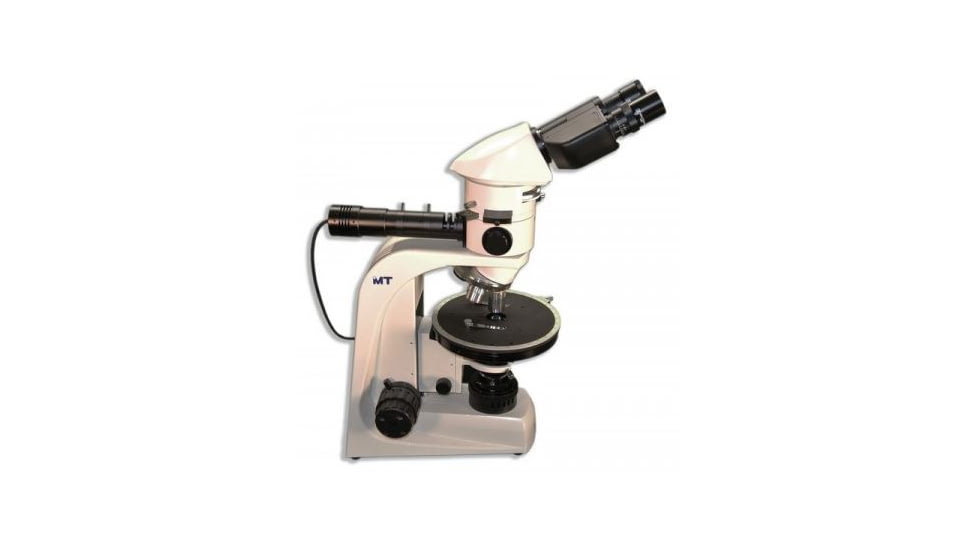

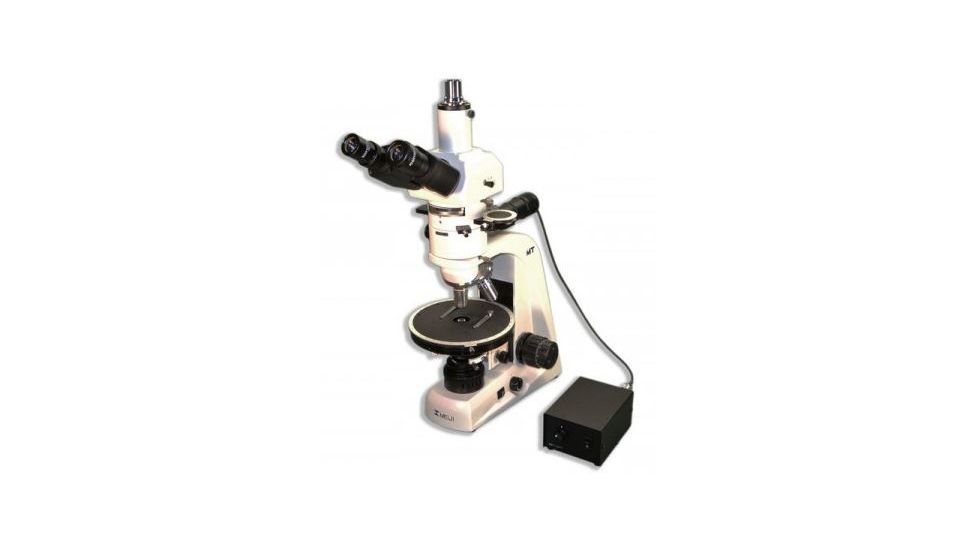

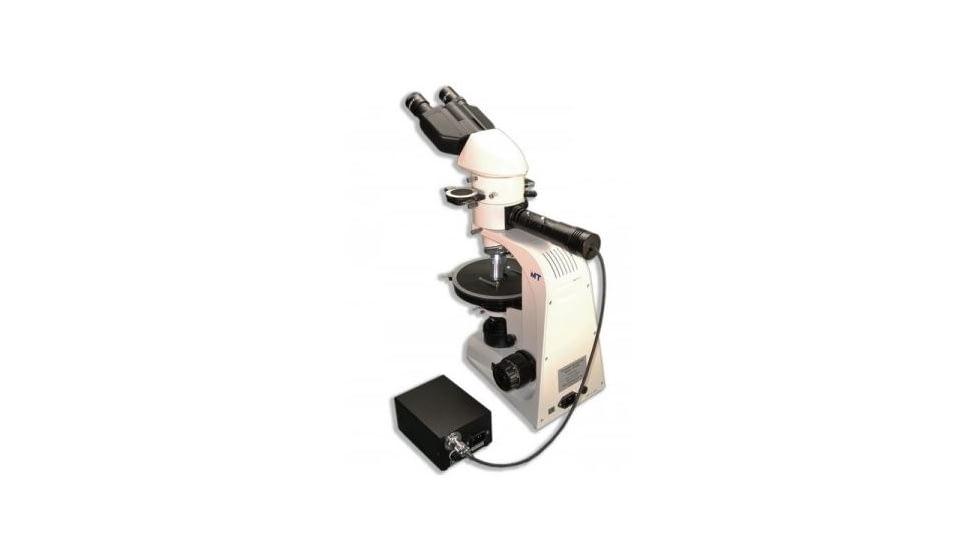

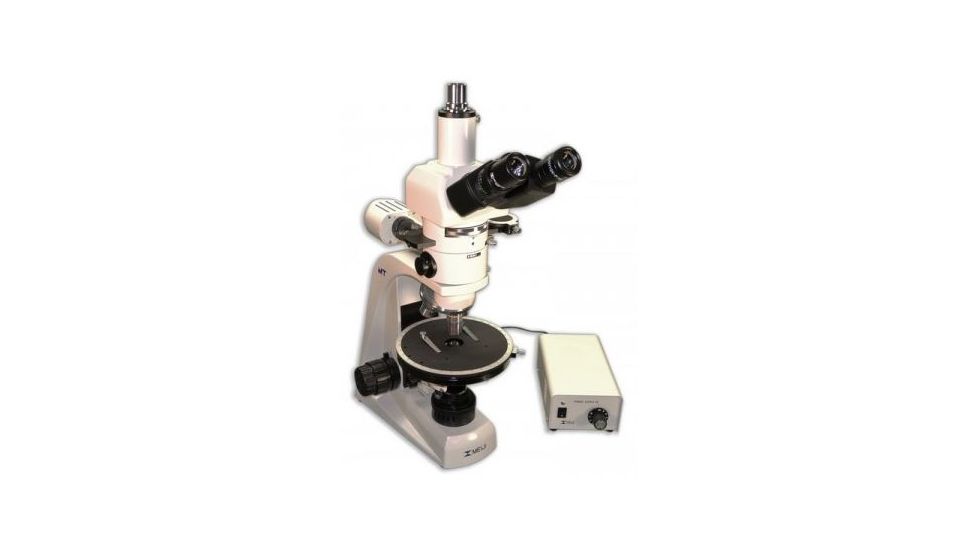

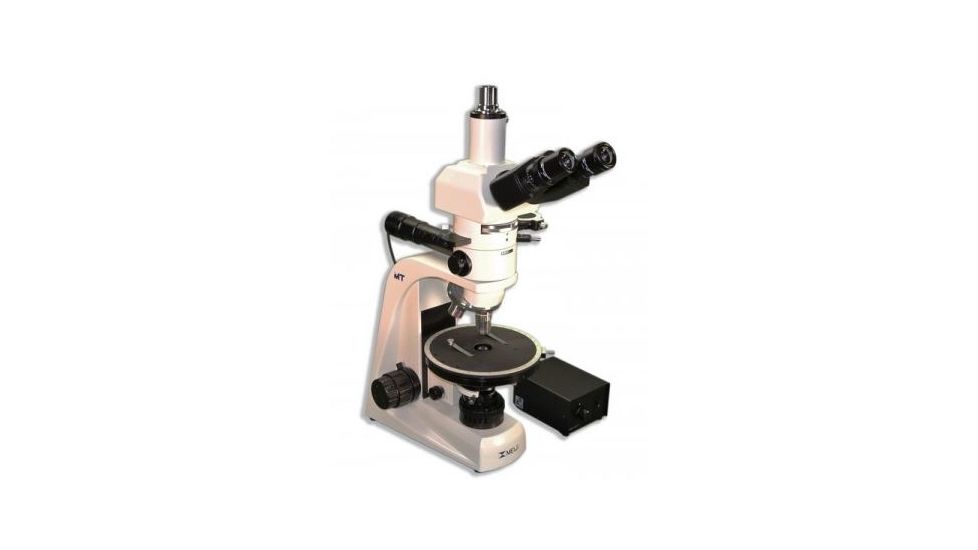

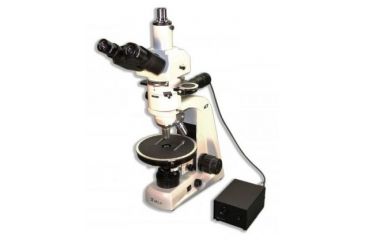

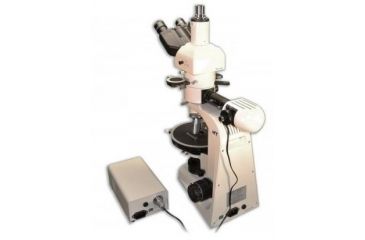

Meiji Techno Polarizing Microscope Incident and Transmitted Light Up to 15% Off w/ Free S&H — 4 models

Meiji Techno Incident and Transmitted Polarizing Upright Microscopes are versatile, modular, and ergonomic, making them ideal tools for geology, petrology, mineralogy, forensics, material science, manufacturing, crystallography, medical research, environmental science and industrial quality control/quality assurance applications. Ergonomic placement of controls on these Microscopes from Meiji Techno allows stress free operation, increased lab efficiency and maximum productivity while the Incident and Transmitted 6V 30W Kohler Halogen or Kohler LED illuminator with high performance optics minimizes internal strain. Swing-out polarizing condensers help to maximize field-of-view with lower power objectives and help to provide exceptionally bright, crisp images with excellent color rendition from Meiji Techno Incident and Transmitted Polarizing Versatile Microscopes. These laboratory grade microscopes are available with Siedentopf-type binocular head or trinocular head for full viewing versatility and 10X Widefield High Eyepoint eyepieces. Meiji Techno Incident and Transmitted Polarizing Modular Microscopes provide a cost-effective, high quality alternative for all kinds of advanced lab functions.

Specifications for Meiji Techno Polarizing Modular Microscope, Incident and Transmitted Light:

Features of Meiji Techno Polarizing Versatile Microscope, Incident and Transmitted Light:

• Focusable Bertrand lens ( Factory installed)
• Rotatable Analyzer with 180 degree graduations
• Combination First order red compensating plate and 1/4 Wave-length test plate and Brightfield spot with a slider locking pin standard in all models
• Newly designed Strain free Abbe Condenser 1.25 N.A. with a swing out top lens and built in iris in a dovetail mount is easy to change and operates and tracks very smoothly and predictably facilitating accurate iris control with improved usability
• Polarizer in a Swing in-out click/clamp mount, fully rotatable 360 degrees with click stop at 0 degrees and 90 degrees
• Super Widefield compensating KHW10X, focusing eyepiece with cross-line and guide pin, F.N. 20 are standard with 21mm reticle mount
• Ergonomic Siedentopf type binocular or Trinocular viewing heads are standard
• Smooth operating ball bearing centerable nosepiece provides effortless objective changes
• Clear Observation Images with Newly improved Infinity Corrected Objectives System (ICOS)
• Available accessories suited for high-level Polarization Observation
• Intermediate tube with built in analyzer and compensator slot and rotatable polarizer in a swing-out mount
• Ceramic coated, 175mm diameter, ball bearing, circular rotating stage graduated 360 degrees, with 1 degree increments and vernier reading to 0.1 degrees. Stage equipped with easy to maintain ceramic coating allows for smooth exchange of specimens while offering maximum protection to the stage surface from abrasions and wear over time. The super hard coating is durable and rugged enough to provide years of demanding use.
• Focus tension adjustment and safety Auto-focus stage stop lever

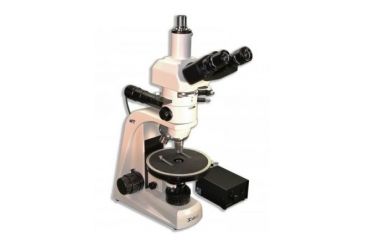

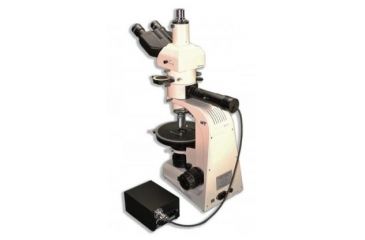

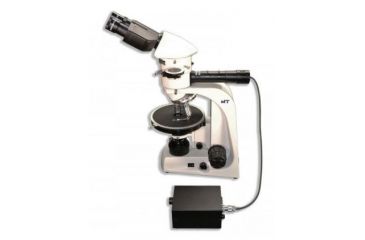

• Choice of Bright Lambertian designed LED illumination or 30 watt Koehler Halogen illumination allowing observation of clear images of polarization with automatic voltage sensing power supply 110V-240V.
• Trinocular models compatible with Digital, CCD, CMOS, Analog Meiji Techno adapters for photomicrography
• Cast Aluminum Alloy construction with chemical resistant finish
• Triangular designed frame for maximum ergonomics greatly lessens user fatigue during hours of extended observation
• Ideal tool for isotropic and anisotropic materials in advanced laboratory applications
• Limited Lifetime Warranty

Package Contents:

• Meiji Techno Polarizing Microscope, Incident and Transmitted Light
• AC electric cord
• Dust cover
• Manual
