Code: US-THC-360ACQ-MVP-000612
MPN: 000612
UPC: 799475685835

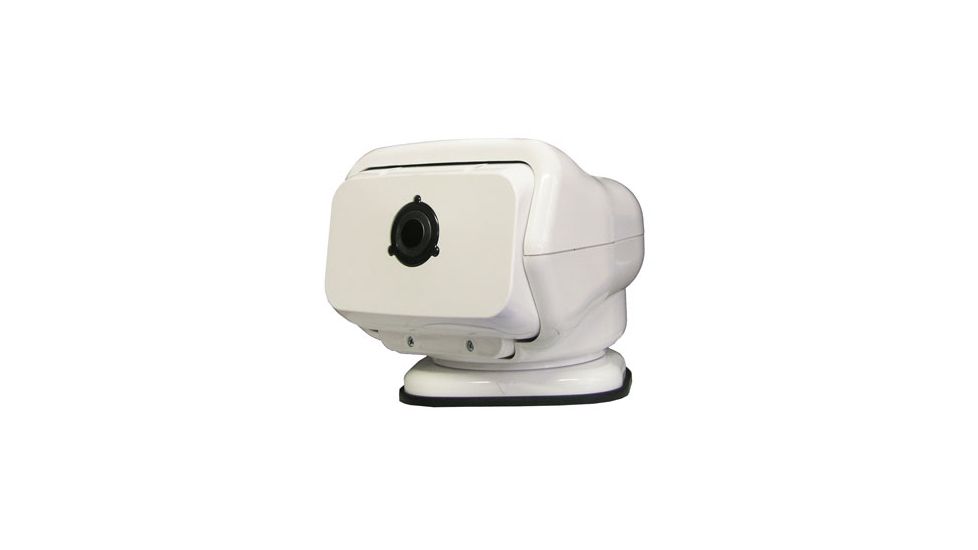

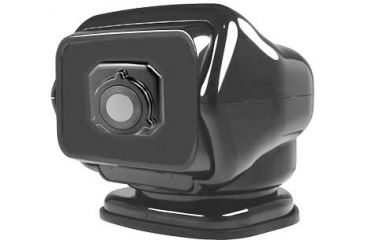

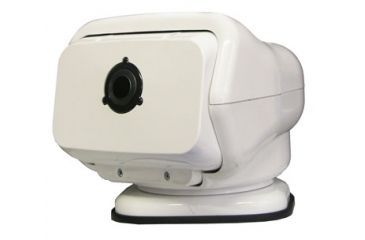

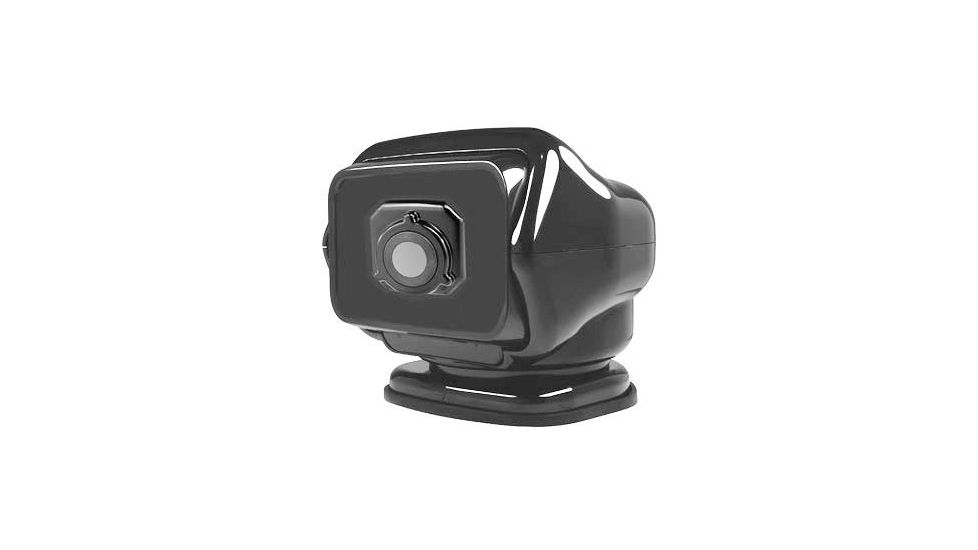

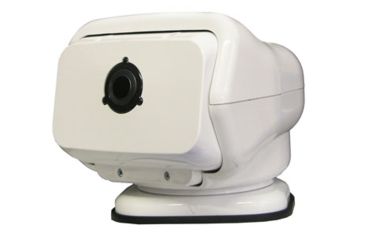

The US Night Vision ATAC 360° is a low cost, high resolution thermal imaging system that allows the user to see in total darkness. Utilizing a 320x240 resolution FLIR Camera the system can easily see man sized targets from over 1500 feet. The thermal core uses long-wave infrared sensor technology and can easily see through smoke, fog, rain and many other atmospheric conditions that could not easily be penetrated by other competing technologies. The US Night Vision 360 Thermal Camera offers 370 rotation x 135 tilt using either of the included wired toggle control, wireless hand-held or dash mounted wireless remote controls. The RF wireless remote controls can be programmed to your desired frequency for un-interrupted use with one or multiple systems. The Atac 360° from US Night Vision is easily mounted using an innovate mounting plate with under-locking interface, a simple two step mounting process. The pan/tilt enclosure uses high torque motors with encased metal gears for years of trouble free operation. Quick detach cables allow for easy removal from the vehicle in minutes. The Thermal Acquisition Camera is enclosed in a weatherproof housing that is UV Ray and saltwater resistant for both land and sea applications. The entire system operates on a 12V DC platform and is ideally suited for vehicles and watercraft. Whether used for Law Enforcement, First Responders, or Surveillance and Security applications, the US Night Vision 360 Degree ATAC is the product of choice based on price and performance![]()
| Type & Material: | 320 x 240 Uncooled Microbolometer |
| Field of View: | 35° H x 27° V |
| Spectral Band: | 8-14 Microns Long Wave Infrared (LWIR) |
| Pan / Tilt: | 370° Rotation / 135° Tilt |
| Speed: | Fast / Slow |
| Operation: | Wired / Wireless Remote Control Options |
| Power Requirement: | 9-16 VDC |
| Video Output: | NTSC / Pal |
| Hertz: | 30 Hertz |
| Dimension: | 6.76" x 7.25" x 8" |
| Weight: | 4 lbs |
| Power: | 12 VDC Quick Disconnect |
| Video: | BNC / RCA Quick Disconnect |
| Warranty: | 1 Year Limited |
