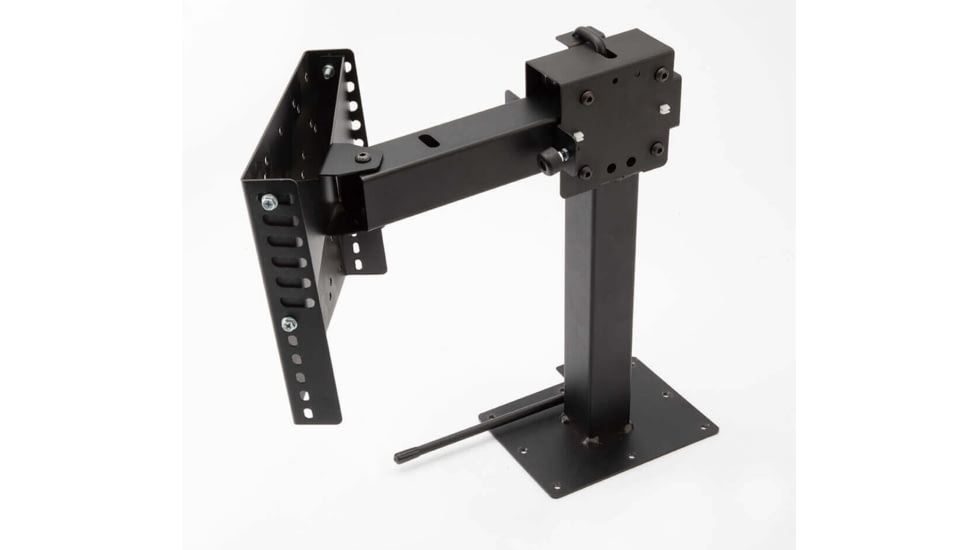

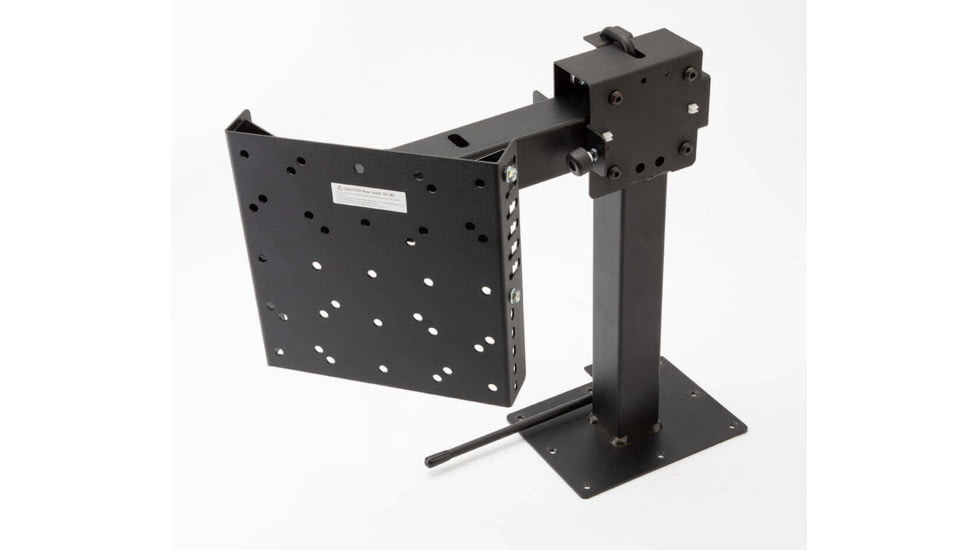

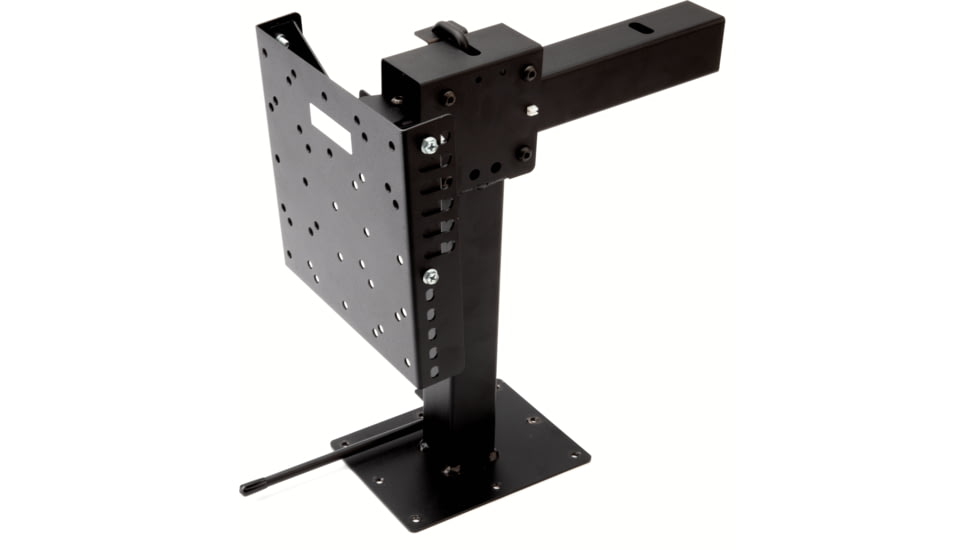

MORryde TV40-001H Slide Out And Swivel TV Base Mount

Designed to slide-out and swivel, this bracket is perfect for installation in a cabinet or corner. When ready to watch TV you simply release the lock allowing the TV to slide forward a full seven inches and then swivel and tilt to your desired viewing angle. The TV40-001 is designed to mount flat panel televisions or monitors with VESA (Video Electronics Standards Association) hole patterns up to 200mm x 200mm and weighing up to 50 lbs. It mounts to a horizontal surface, counter, or RV cabinet and allows for the television to extend 7 out from the installed position. In the out position the television can swivel +/-30 (may vary with size of television or installed position). MORrydes unique locking mechanism offers an easy way to keep your television safely in the out position or locked in for travel. A 200mm x 400mm adaptor plate is available through MORryde customer service.

Features of MORryde TV40-001H Slide Out And Swivel TV Base Mount

• Slides out 7", Swivels up to 30 degrees, Adjusts for TV height, Rated for 50 lb. capacity, Fits mounting patterns: 75 x 75, 100 x 100, 200 x 200

Package Contents:

• MORryde TV40-001H Slide Out And Swivel TV Base Mount
