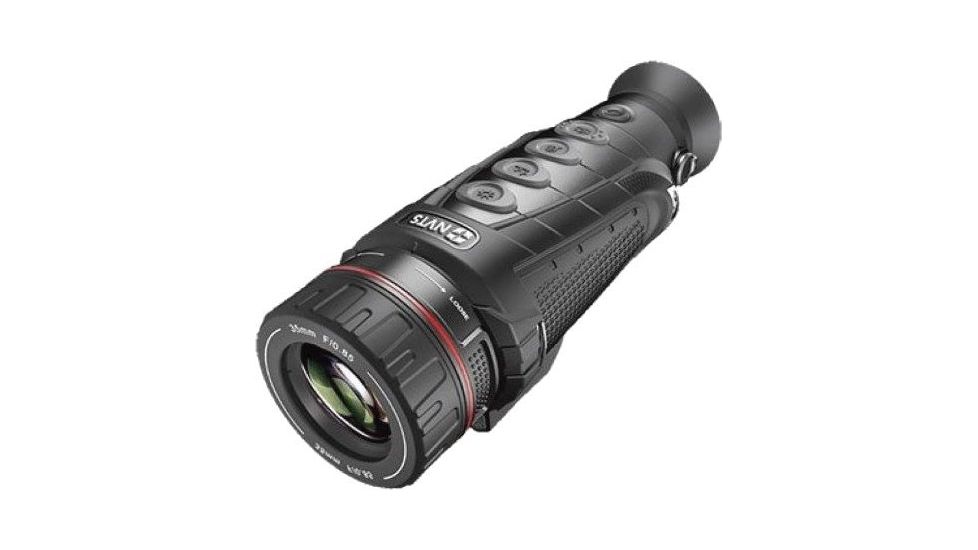

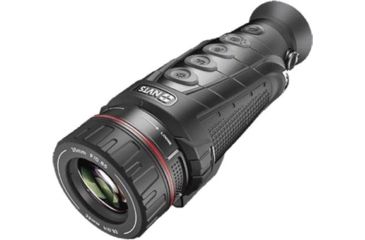

NVTS Alert TRM Thermal Monocular

The Alert TRM's night vision monocular solves the problem of range performance by offering alternative lens sizes. The operator can rapidly select which lens meets the field requirement. The replaceable lenses offer flexibility for different detection ranges, and budget.

The Alert TRM's thermal sensor provides the operator with a sharp and vivid 1280 x 960 HD, true-color display. NVTS's embedded advanced Intelligent Image Enhancement (IIE) and hot spot tracking provide precision target acquisition making identification easier.

Alert TRM's optional integrated WiFi and voice recording enables real-time transfer of images, video and voice recording to mobile devices such as smart phones, tablets or laptops, regardless of platform. Sportsman and military can now record on site video and audio with ease.

Applications:

• Border Patrol
• Law enforcement
• Hunting
• Search and Rescue

Specifications:

• Deterctor Resolution: 400 x 300
• Detector Pixel Pitch: 25 µm
• Spectral Range: 8~14 µm
• Display: 1280 x 960 HC True-color
• Frame Rate: PAL 25 Hz; NTSC/30 Hz
• Digital Zoom: 2X, 4X
• Polarity: B/Hot, W/Hot, R/Hot
• Adjustable Diopter: (-5 to +5 )
• Still Image Storage: JPG
• Video Recording: MPEG4
• Wi-Fi, GPS, Voive Annotiation: Optional
• Battery: Internal Li-On
• Charging USB Cable/ AC Adapter
• Operating Time: Infrared-mode ? 6 hours
• Stand-by Mode: Smart power management
• USB Port: Charging/Image/Video transfer
• SD card (embedded): 16 GB standard, Compatible up to 32 GB
• Operating Temperature: -4°F to 122°F 70(-20°C to +50°C)
• Storage Temperature: -4°F to 158°F (-20°C to +70°C)
• Humidity: 10% to 95%
• Encapsulation: IP66
• Weight: 15.87 oz (450g) excluding lens
• Dimensions: 7.1" x 3.15" x 2.80" (180 x 80 x 71 mm) excluding lens

Features:

• 400 x 300 IR Detector
• High Resolution Display
• Video and Picture Storage
• Precision Manual Focus
• Five Color Polarity Screens
• Waterproof

Package Contents:

• NVTS Alert TRM Thermal Monocular
